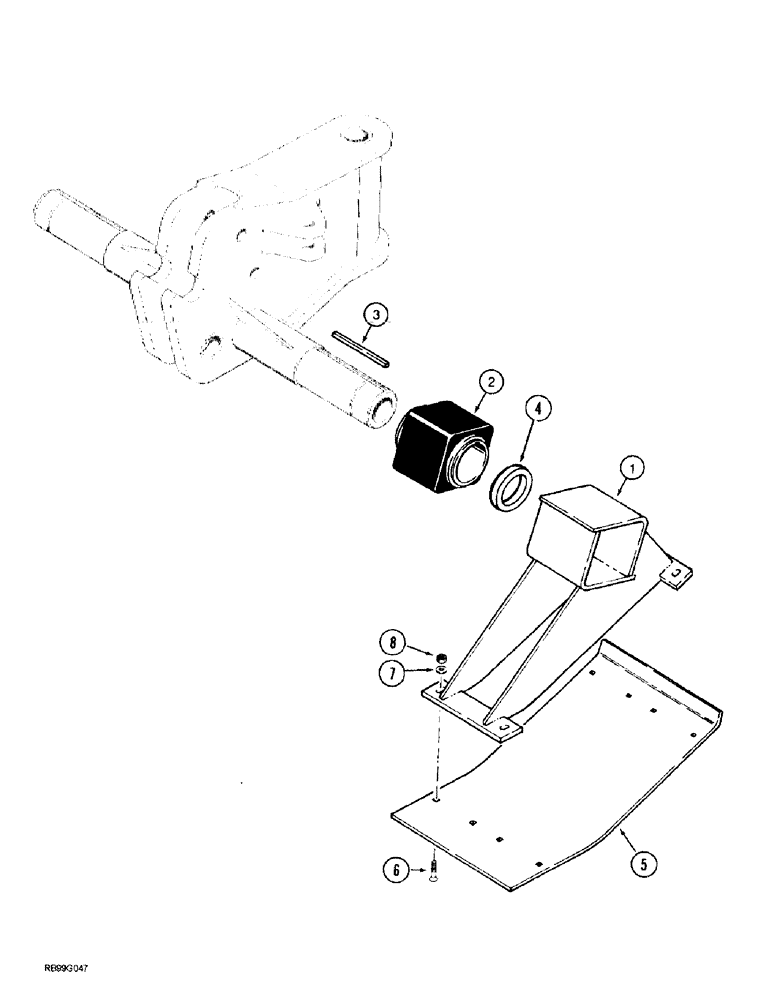

Запчасти Case 860 (9-108) - PLOW SKID SHOES AND PLATES - SKID SHOES MOUNTING BRACKET W/O SKID SHOES AND SKID SHOE (09) - CHASSIS/ATTACHMENTS

H674485

SHOE (ASSY)

SHOE ASSEMBLY - skid, no longer available, order components, Includes: Ref. 1 and 2

2шт.

1

H674486

SHOE (ASSY)

SHOE - skid

1шт.

2

H230862

SHOCK ABSORBER

MOUNT - rubber, skid shoe

1шт.

3

H79368

KEY

- square, 3/8 x 5-3/8 inch

2шт.

4

103-11300

SNAP RING,#300, Ext

Ring, Snap, #300, Ext

2шт.

5

H437946

LARGE PLATE

PLATE - skid shoe, 12 inch wide, plow and mounting

2шт.

6

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

BOLT - plow, 3/8 NC x 1-1/2 inch, skid shoe plates and mounting

8шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Plow skid shoe plates and mounting

8шт.

8

232-4116

NUT,3/8"-16, GC

NUT, LOCK, , Plow skid shoe plates and mounting 3/8"-16, GC

8шт.
