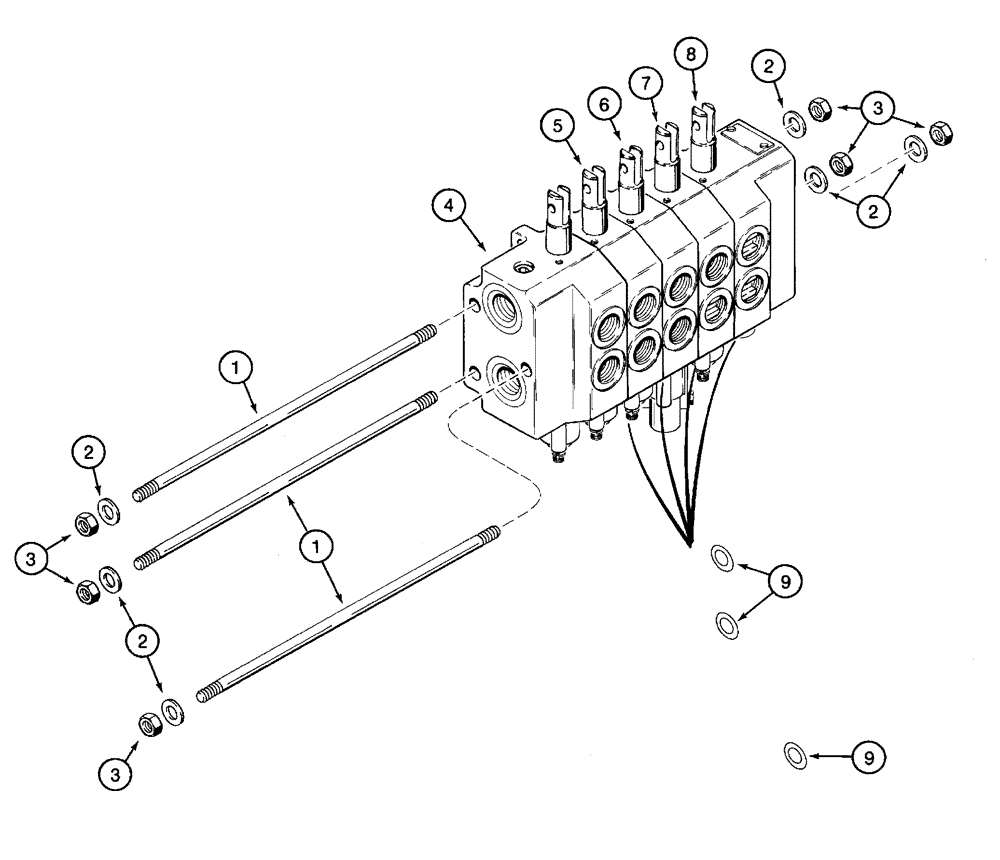

Запчасти Case 960 (08-10) - VALVE ASSY, CONTROL ATTACHMENT CONTROL (08) - HYDRAULICS

H674793

VALVE

5 Spool, Consists Of 1 - 9, See Page(s) 8-31 - 8-41

1шт.

1

100411A1

ROD

Valve Sections

3шт.

2

101492A1

WASHER

6шт.

3

425-115

NUT,5/16"-24, G5

6шт.

4

105519A1

KNIFE SECTION

SECTION, KNIFE , Outlet and Blade Angle, See Page(s) 8-41

1шт.

5

100414A1

KNIFE SECTION

SECTION, KNIFE , Attachment Lift, See Page(s) 8-39

1шт.

6

100414A1

KNIFE SECTION

SECTION, KNIFE , Rear Steering, See Page(s) 8-39

1шт.

7

100415A1

KNIFE SECTION

SECTION, KNIFE , Blade Lift, See Page(s) 8-37

1шт.

8

105518A1

KNIFE SECTION

SECTION, KNIFE , Inlet and Blade Tilt, See Page(s) 8-33

1шт.

9

128531A1

SHIM

0,001 in

12шт.
