(08-45) - MOTOR ASSY TRENCHER DRIVE

Запчасти Case 960 (08-45) - MOTOR ASSY TRENCHER DRIVE (08) - HYDRAULICS

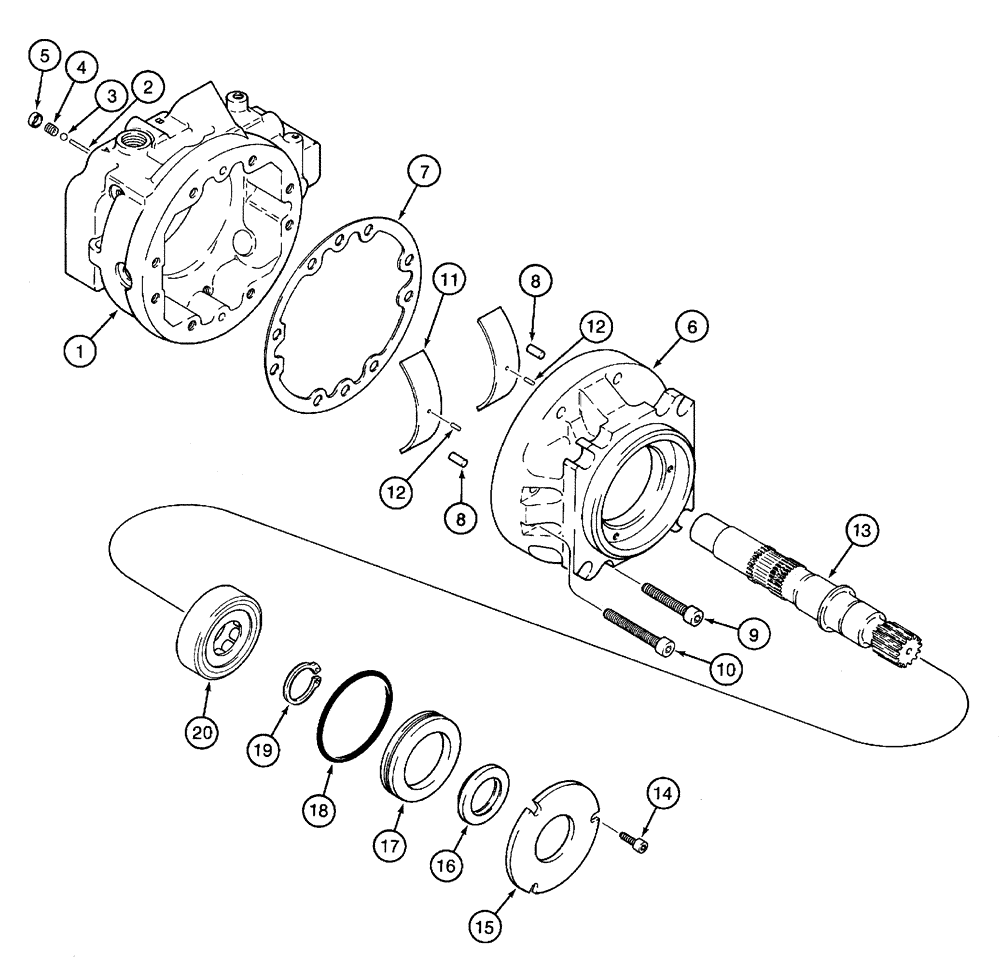

Схема запчастей Case 960 - (08-45) - MOTOR ASSY TRENCHER DRIVE (08) - HYDRAULICS
2
11
13
9
3
19
5
14
10
8
7
18
15
16
4
20
12
12
1
6
17
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674755

MOTOR

Includes 8-137 - 8-149

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Motor

1шт.

2

38-11232

SPLIT PIN/SAFETY PIN,3/16" x 2", Slotted

3/16" x 2", Slotted

2шт.

3

211-1309

BALL,9/32" Dia

9/32, Steel

2шт.

4

106545A1

ORIFICE

Check Ball

2шт.

5

106544A1

OIL SEAL

Crush

2шт.

6

106562A1

COVER

Front

1шт.

7

106557A1

GASKET

Front Cover

1шт.

8

F23124

AXLE PIN

Locating

2шт.

9

106560A1

SCREW

Special

4шт.

10

106564A1

SCREW

Special

4шт.

11

106521A1

BEARING

2шт.

12

106520A1

PIN

Cover

2шт.

13

106554A1

SHAFT

Drive Motor, Splined

1шт.

14

106555A1

SCREW

Special, Cover Plate

3шт.

15

105659A2

SUPPORT

Shaft Seal, Retainer

1шт.

16

105660A1

SEAL

Shaft

1шт.

17

105661A1

LARGE PLATE

PLATE, LARGE , Seal

1шт.

18

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

19

100-11137

SNAP RING,#137, Ext

1шт.

20

105658A2

ROLLER BEARING

Shaft

1шт.
