(08-62) - HYDRAULICS VALVE, SELECTOR

Запчасти Case 960 (08-62) - HYDRAULICS VALVE, SELECTOR (08) - HYDRAULICS

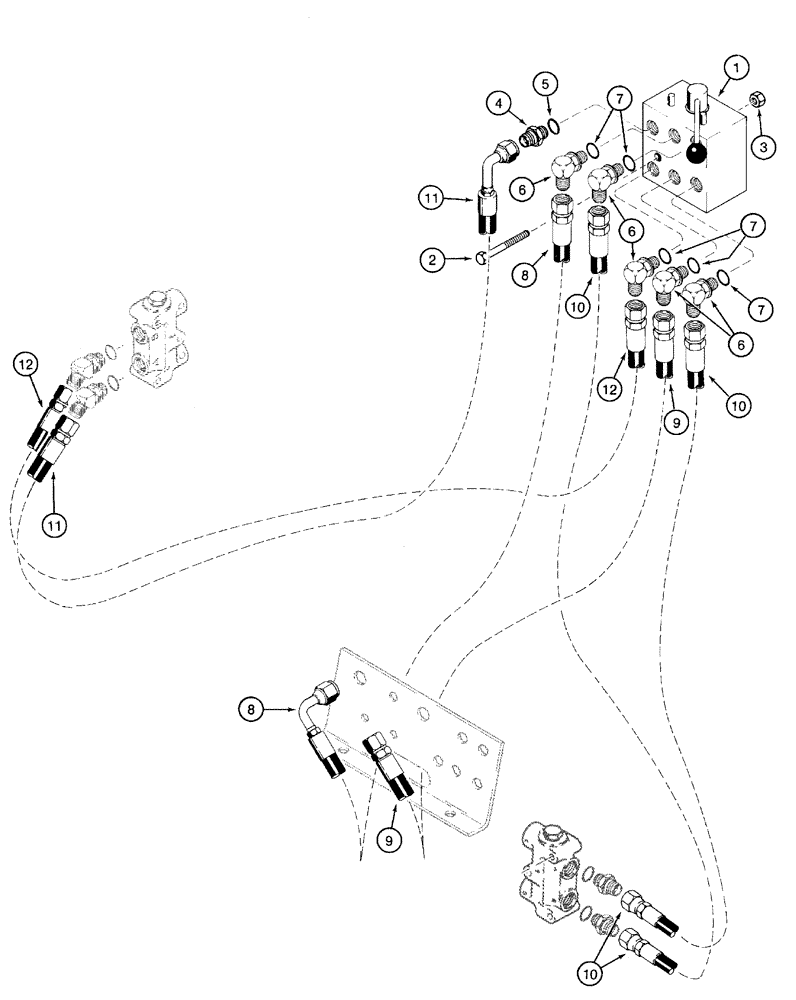

Схема запчастей Case 960 - (08-62) - HYDRAULICS VALVE, SELECTOR (08) - HYDRAULICS
8
10
7
3
6
7
4
8
9
11
2
5
10
6
6
1
12
12
11
7
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

For Quad With Reel Carrier

1шт.

1

H672689

VALVE

Selector, Reel Carrier/Trencher Lift, See Page(s) 8-205

1шт.

2

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 7

5шт.

8

104410A1

HOSE

820 mm

1шт.

9

104409A1

HOSE

820 mm

1шт.

10

104408A1

HOSE

1750 mm

2шт.

11

104355A1

HOSE

4420 mm (174 in), See Page(s) 8-105

1шт.

12

104356A1

HOSE

4420 mm (174 in), See Page(s) 8-105

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
