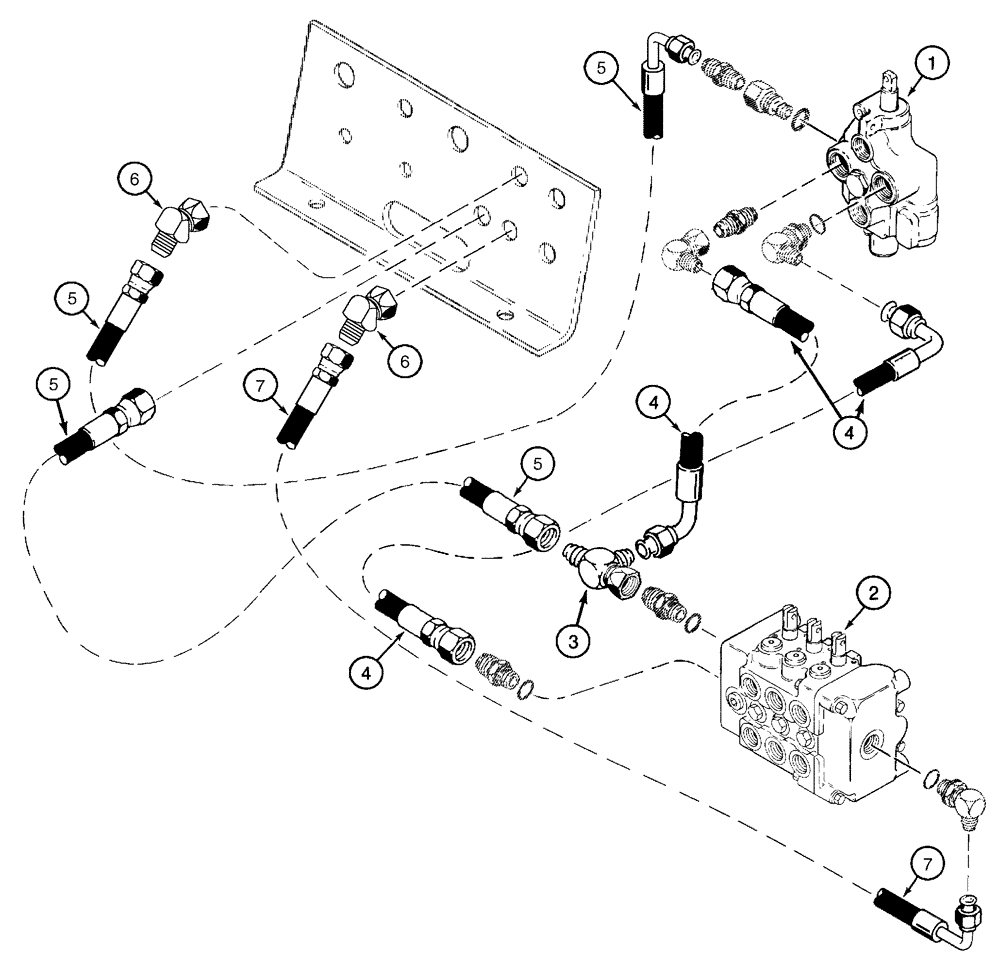

Запчасти Case 960 (08-66) - HYDRAULICS CRUMBER (08) - HYDRAULICS

For Reverse Quad Option

1шт.

1

H674465

VALVE

Auxiliary Control, See Page(s) 8-215

1шт.

2

130806A1

VALVE

Plow, See Page(s) 8-189 - 8-195

1шт.

108677A1

ATTACHMENT

Hydraulic Crumber Attach, For Reverse Quad Kit, Includes 3 - 7

1шт.

3

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw

1шт.

4

108665A1

HOSE ASSY.

475 mm, Supply and Return

2шт.

5

106519A1

HOSE

660 mm, Outlet

2шт.

6

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

1-1/16 fl x sw

2шт.

7

H438246

HOSE ASSY.

660 mm, Inlet

1шт.
