(08-67) - VALVE ASSY AUXILIARY CONTROL

Запчасти Case 960 (08-67) - VALVE ASSY AUXILIARY CONTROL (08) - HYDRAULICS

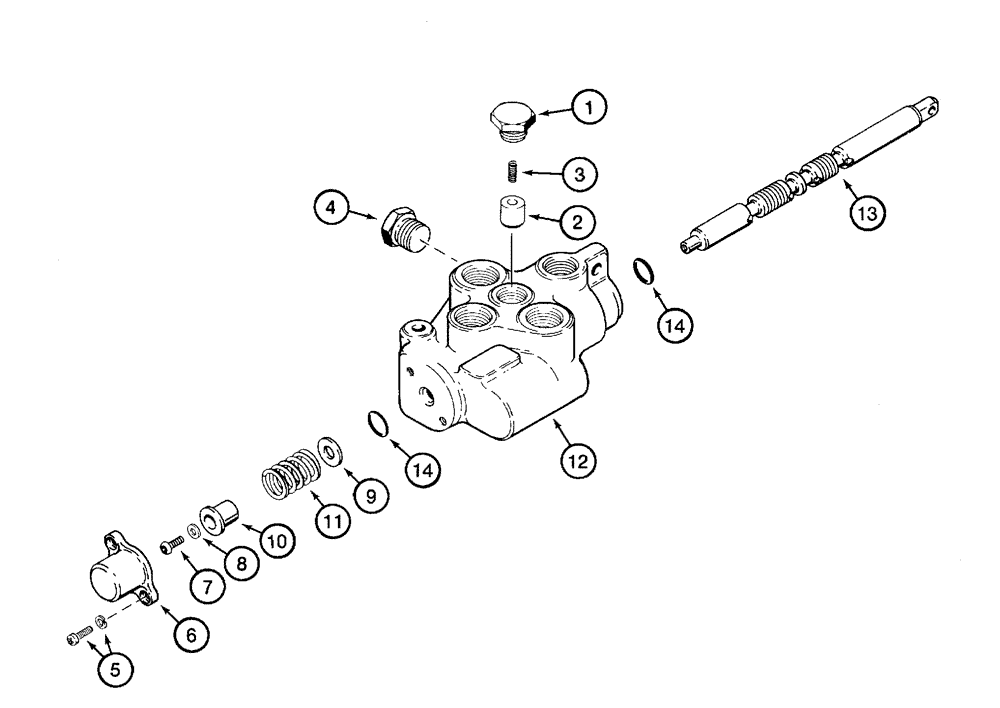

Схема запчастей Case 960 - (08-67) - VALVE ASSY AUXILIARY CONTROL (08) - HYDRAULICS
6
9
14
11
3
5
14
1
4
10
2
12
13
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674465

VALVE

Auxiliary Control, Crumber, Includes 1 - 14, For Mounting, See Page(s) 8-207

1шт.

H673572

KIT

Includes 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Plug, Includes 237-6012

1шт.

2

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

132547A1

PLUG

Power Beyond, Includes O-Ring

1шт.

H674816

KIT

Includes 5 - 11

1шт.

5

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

Includes Washer

2шт.

6

N9528

CAP

1шт.

7

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

1шт.

8

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

9

492-11010

LOCK WASHER,#10

1шт.

10

N9529

SEAT

1шт.

11

N9539

TENSION SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

Housing

1шт.

13

NSS

NOT SOLD SEPARAT

Spool

1шт.

14

H438030

O-RING

5/8 x 13/16

2шт.
