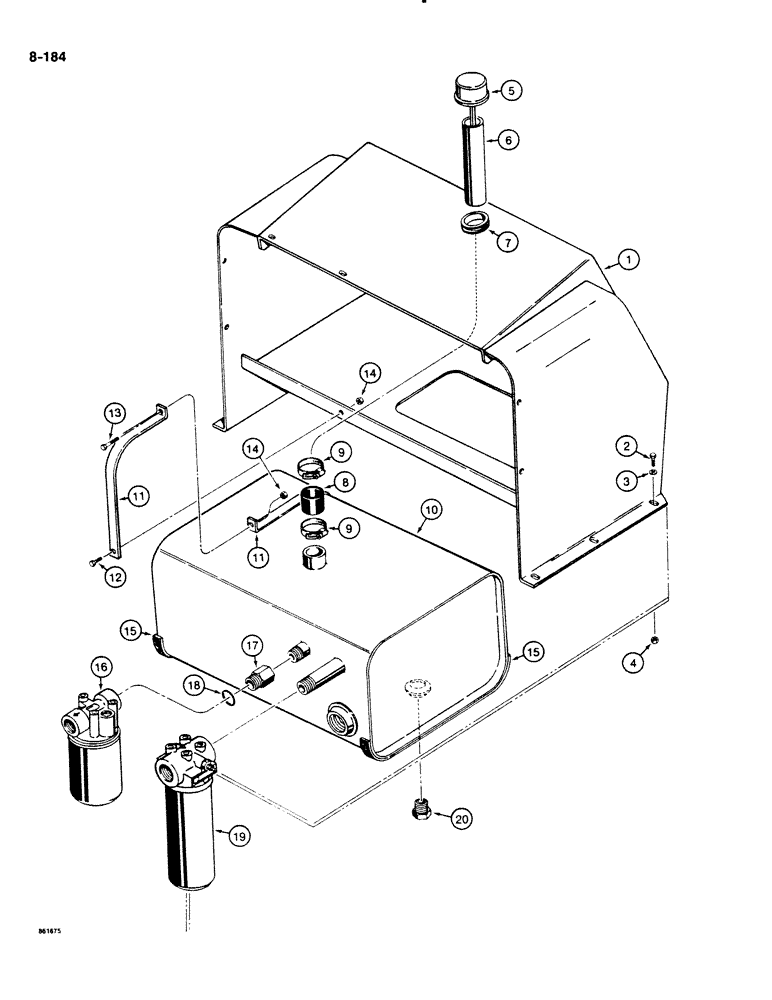

Запчасти Case DH4B (8-184) - HYDRAULIC OIL RESERVOIR AND FILTER MOUNTING (08) - HYDRAULICS

1

H671289

CONSOLE

- front, reservoir mounting

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

6шт.

5

H269639

DIPSTICK

- hydraulic oil reservoir

1шт.

6

H377358

TUBE,38.1 mm OD x 205 mm L

- hydraulic oil reservoir fill, must fit tightly against hydraulic oil reservoir to ensure proper oil level

1шт.

7

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- hydraulic oil reservoir fill tube

1шт.

8

H218396

HOSE ASSY.

HOSE - 1.5" (38 mm) ID x 2-1/2" (63.5 mm) long, oil fill tube to reservoir, see Parts Substitions list for bulk hose options (Replaces H218936)

1шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

10

H662866

RESERVOIR

- hydraulic oil

1шт.

11

H372094

STRAP

- hydraulic oil reservoir mounting

4шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

6шт.

15

H293928

SEAL

- weather strip, 15" (381 mm) long, cut from F67095 bulk strip, see below

2шт.

16

H649269

FILTER

ASSEMBLY - hydraulic oil suction, parts list figure 8-249

1шт.

Ref. 16 - H673223

1шт.

17

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - straight, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

19

H663393

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil return, parts list figure 8-351

1шт.

Ref. 19 - H673224

1шт.

20

221-73

REDUCER,Hex, 1 1/2" x 1/2" NPT

- 1-1/2" x 1/2" NPT, bottom of reservoir, connects to hydraulic oil temperature switch

1шт.

F67095

SEAL

- bulk length, 59" (1494 mm) long, use to make ref. 15

1шт.
