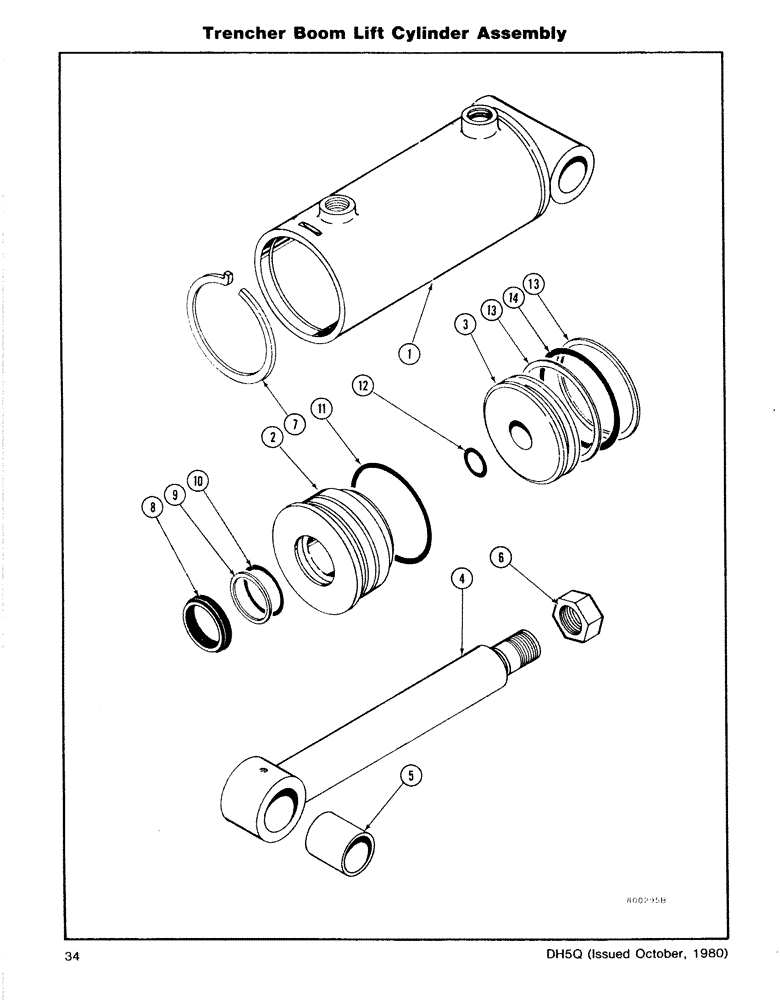

Запчасти Case DH5 (34) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H643015

CYLINDER ASSEMBLY - Trencher Boom Lift, Includes: Ref. 1 - 14

1шт.

1

H657676

BARREL ASSEMBLY, Includes: Ref.

1шт.

2

H226308

GLAND

1шт.

3

H226316

PISTON

1шт.

4

H657684

PISTON ROD ASSEMBLY

1шт.

5

H406736

BUSHING

1шт.

6

131-370

LOCK NUT

NUT - Piston Retaining

1шт.

H226357

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

WIRE - Lock

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - Backup

2шт.

14

NSS

NOT SOLD SEPARAT

0-RING

1шт.
