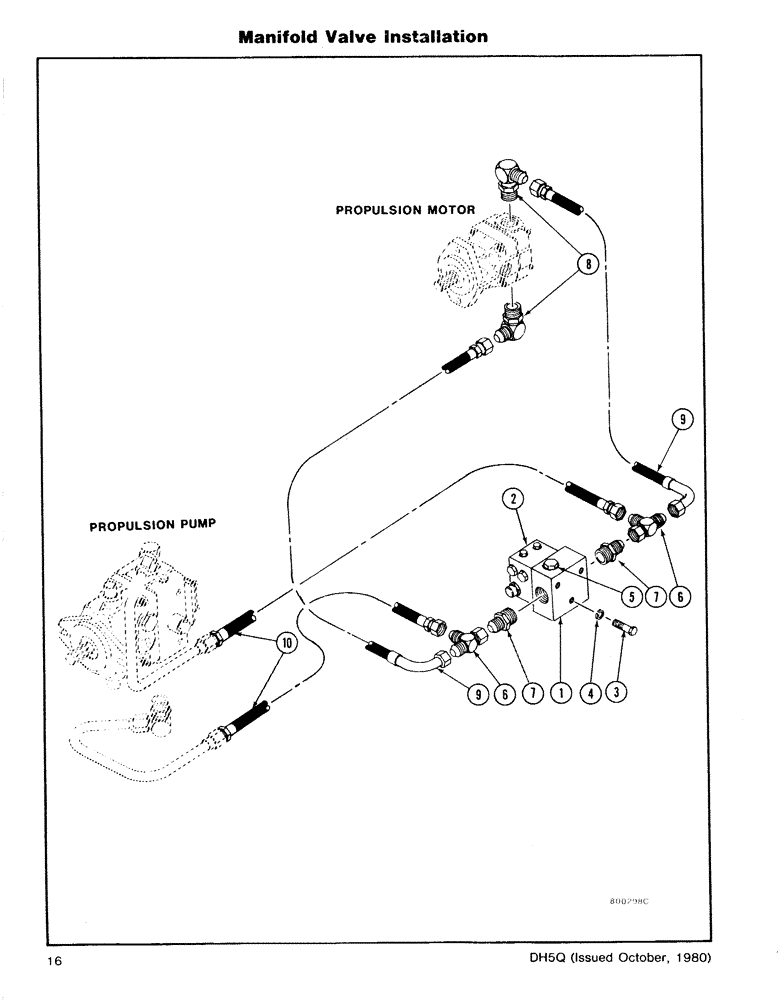

Запчасти Case DH5 (16) - MANIFOLD VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H637520

PLATE - Base

1шт.

2

H637512

VALVE - Manifold (See figure 30)

1шт.

3

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

3шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

5

214389

PLUG,3/4" - 16 ORB

1шт.

6

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- (1 1/16 JIC Fe Swv x 1 1/16 JIC M)

2шт.

7

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1 5/16 ORB x 1 1/16 JIC M)

2шт.

8

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1 5/16 ORB x 1 1/16 JIC M)

2шт.

9

H261560

HOSE ASSY.

HOSE AND TUBE - 3/4 x 34 (1 1/16 JIC Fe Swv)

2шт.

10

H276915

HOSE - 3/4 x 27 (1 1/16 JIC M x 1 1/16 JIC Fe Swv)

2шт.
