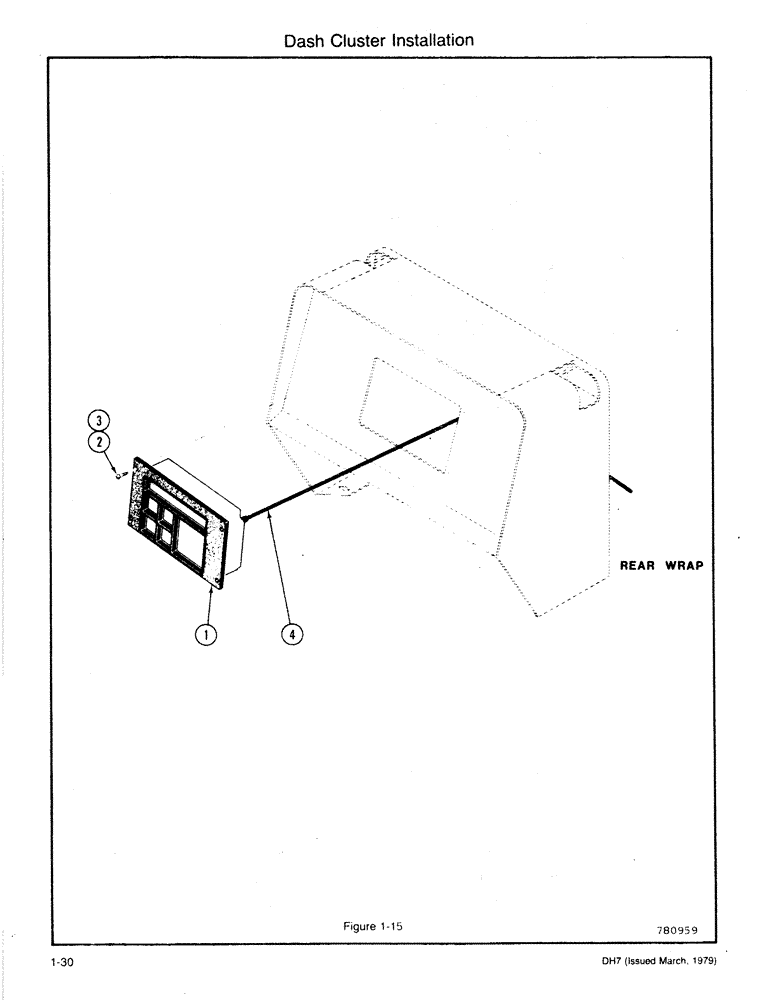

Запчасти Case DH7 (1-30) - DASH CLUSTER INSTALLATION (55) - ELECTRICAL SYSTEMS

1

H628610

CLUSTER

- Dash (See Figure 1-58), Includes: Ref. 2 and 3

1шт.

2

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- Round Head (#10 x 1/2)

4шт.

3

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

4

D68716

CABLE

- Tachometer Drive

1шт.
