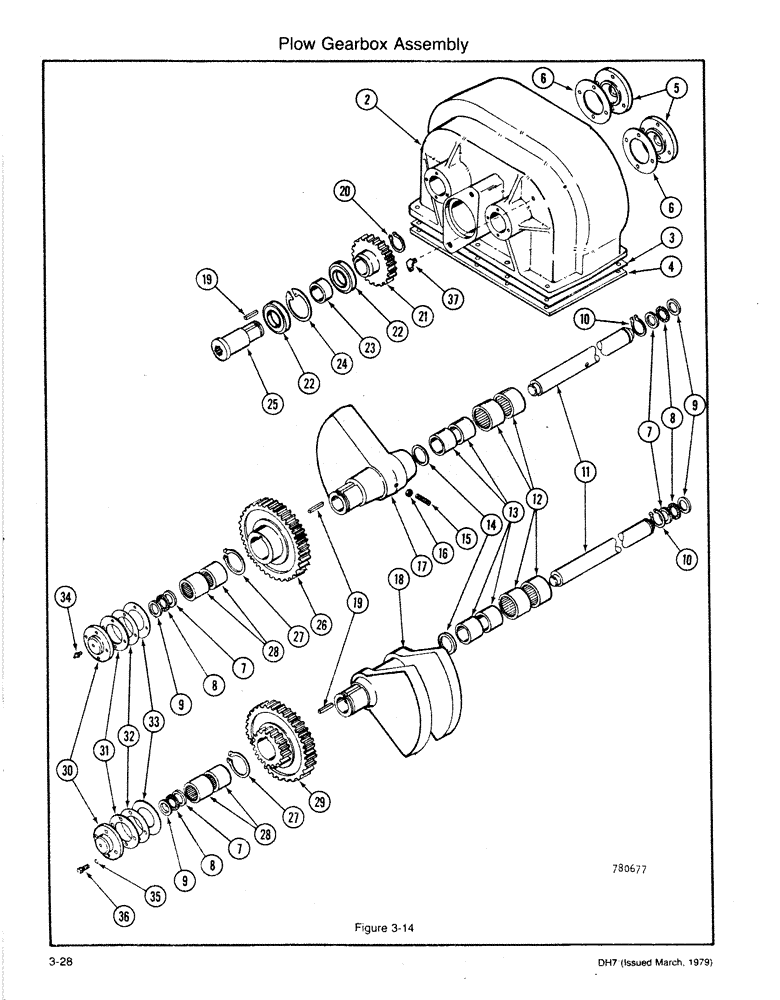

Запчасти Case DH7 (3-28) - PLOW GEARBOX ASSEMBLY (89) - TOOLS

1

H563619

BOX

GEAR CASE ASM, Includes: Ref. 2 - 37

1шт.

2

H205559

CASE

GEAR CASE

1шт.

3

H189910

GASKET

1шт.

4

H202176

LARGE PLATE

COVER PLATE

1шт.

5

H189811

BEARING CAP

2шт.

6

H189852

GASKET

2шт.

7

H189845

WASHER

THRUST WASHER

8шт.

8

H753178

BEARING

4шт.

9

H189837

WASHER

THURST WASHER (.095)

1шт.

10

H746560

RING, SNAP

SNAP RING

2шт.

11

H753152

NEEDLE BEARING

SHAFT

2шт.

12

H753152

NEEDLE BEARING

BEARING

4шт.

13

H753160

BEARING CUP

BEARING RACE

4шт.

14

H189803

SPACER

2шт.

15

178-289

SET SCREW,Hex Soc, 1/2"-13 x 2"

(1/2" x 2" NC - Dog Point)

2шт.

16

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

17

H189506

WEIGHT

COUNTERWEIGHT

1шт.

18

H189514

WEIGHT

COUNTERWEIGHT

1шт.

19

H36384

KEY

(1/4" Sq x 1-3/8")

3шт.

20

H746560

RING, SNAP

SNAP RING

1шт.

21

H189787

GEAR

DRIVE GEAR

1шт.

22

H753194

BEARING

2шт.

23

H189795

SPACER

1шт.

24

H753186

RING, SNAP

SNAP RING

1шт.

25

H205567

SHAFT

DRIVE SHAFT

1шт.

26

H189746

GEAR WHEEL

COUNTERWEIGHT GEAR

1шт.

27

H746636

RING, SNAP

SNAP RING

2шт.

28

H753145

NEEDLE BEARING

BEARING

4шт.

29

H189753

GEAR

COUNTERWEIGHT GEAR

1шт.

30

H189829

CAP

BEARING CAP

2шт.

31

H189860

GASKET

2шт.

32

H189878

SHIM,.005" Thk

1шт.

33

H189886

SHIM,.015" Thk

1шт.

34

H745299

FITTING

GREASE FITTING

4шт.

35

H739201

WASHER

LOCK WASHER

16шт.

36

H709451

BOLT (SPREADER)

HHCS (5/16 x 1" NC)

16шт.

37

H52332

ELBOW (90 degrees)

1шт.
