(9-026) - POWER SUPPLY ENCLOSURE

Запчасти Case 1500TX (9-026) - POWER SUPPLY ENCLOSURE

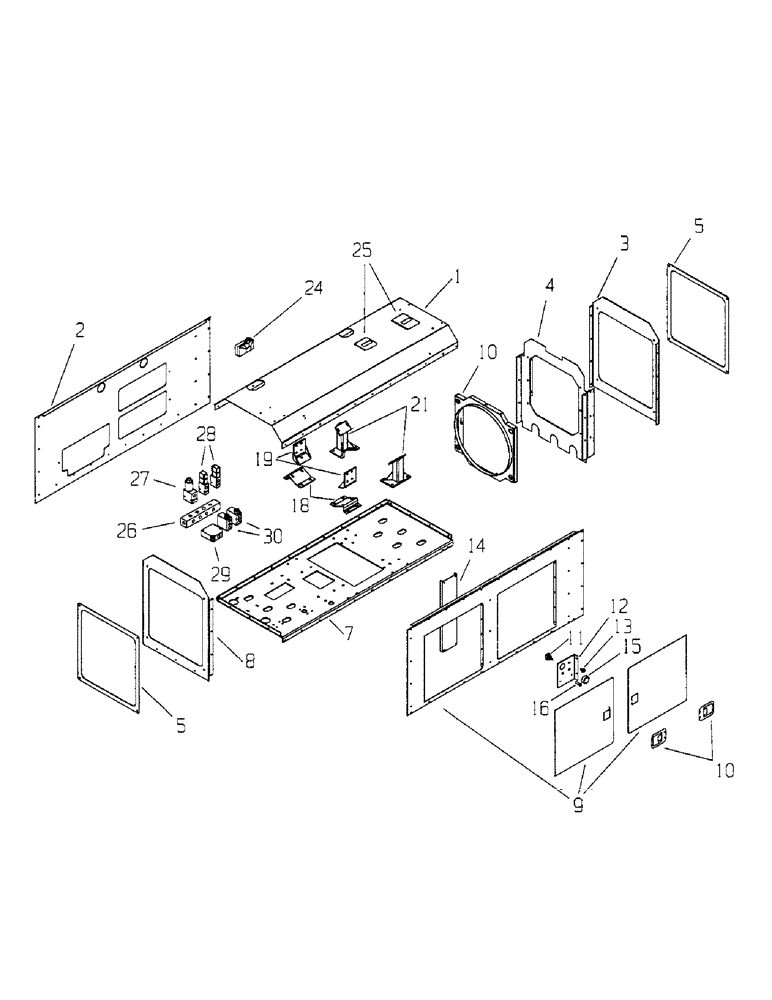

Схема запчастей Case 1500TX - (9-026) - POWER SUPPLY ENCLOSURE
15
8
4
21
16
1
10
5
11
3
13
28
25
27
24
18
7
10
9
26
12
19
2
14
5
29
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

TX120131

HOUSING

Top Engine Enclosure

1шт.

2

TX120139

NOISE PROTECTION

Panel, Inside

1шт.

3

TX120127

PANEL

Radiator End

1шт.

4

TX120126

MOUNTING PARTS

Radiator Mount

1шт.

5

TX120133

ACCESSORIES

Panel Access

2шт.

7

TX120129

PLATE

Enclosure Base

1шт.

8

TX120128

PANEL

Pump End

1шт.

9

TX120138

PANEL

Outside

1шт.

10

TX401115

LATCH

Paddle

2шт.

11

M853013

SWITCH

Toggle SPST Water Proof

1шт.

12

301324A1

PANEL

Engine Control

1шт.

13

TX408231

SWITCH

Key Switch

1шт.

14

TX440608

FRAME

Enclosure, Post Channel

1шт.

15

00022312

HOURMETER

Hour Meter

1шт.

16

TX400131

DIPSTICK

Glow Plug Indicator

1шт.

18

TX120122

MOUNTING PARTS

Mount, Lower Rear Engine

2шт.

19

TX120125

MOUNTING PARTS

Mount, Upper Rear - LH

1шт.

TX120124

MOUNTING PARTS

Mount, Upper Rear - RH

1шт.

21

TX120123

MOUNTING PARTS

Mount, Lower Front Engine

2шт.

24

TX906453

LAMP, WORK

Work Light

1шт.

25

TX423236

LATCH

Lockable - Access Door

2шт.

26

TX940617

SUCTION PIPE

Manifold 8 Station

1шт.

27

15103111

SOLENOID

Valve, FR WAT/A99

1шт.

28

TX150457

VALVE

Solenoid 4-Way - 3 Position

2шт.

29

N412411

Flow Divider w/Relief

1шт.

30

TX152824

VALVE

Loop Flushing Valve

1шт.
