(9-030) - FUEL TANK, RESERVOIR, AND DECK PLATES

Запчасти Case 1500TX (9-030) - FUEL TANK, RESERVOIR, AND DECK PLATES

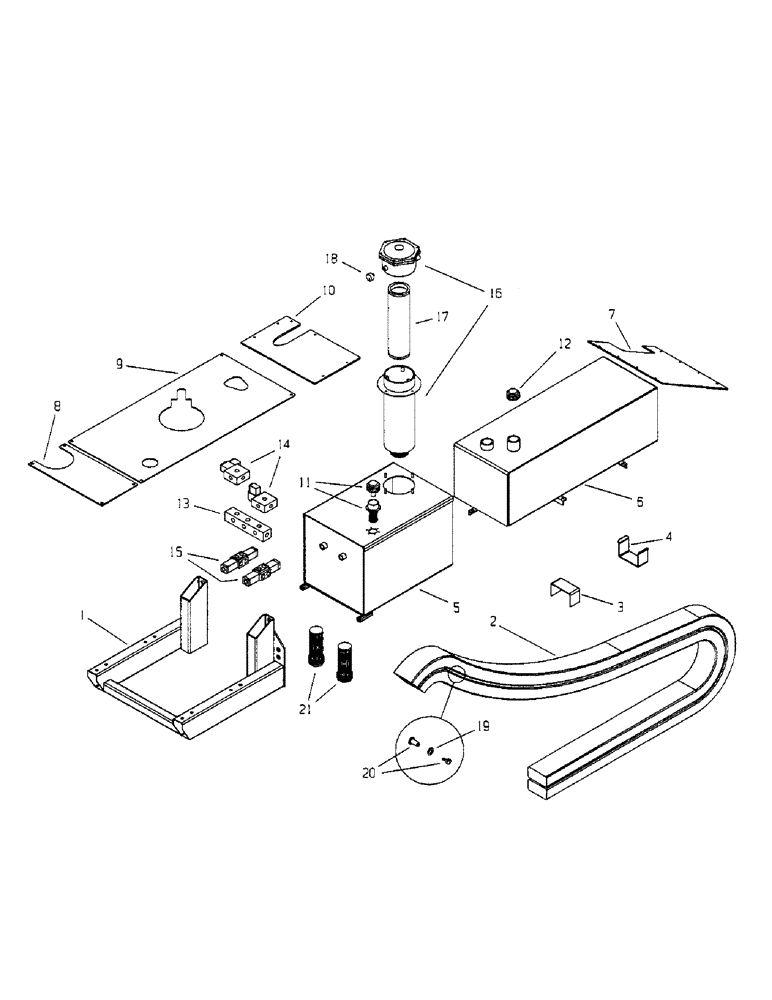

Схема запчастей Case 1500TX - (9-030) - FUEL TANK, RESERVOIR, AND DECK PLATES
6
13
5
17
1
21
15
15
20
14
12
10
3
18
1
7
2
11
19
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

TX120132

MOUNTING PARTS

Mount, Engine Enclosure

1шт.

5

TX120140

RESERVOIR

1шт.

6

TX120162

FUEL TANK

Tank, Fuel 48 gal.

1шт.

7

30206A1

Panel, Front Stop Slopped

1шт.

8

TX120142

PLATE

Rear

1шт.

9

TX120160

PANEL

Center Cover

1шт.

11

00360111

FILLER

Oil w/Filter

1шт.

12

TX460001

CAP

Fuel Tank

1шт.

13

TX200308

SUCTION PIPE

Manifold Return Line Header

1шт.

14

TX153885

VALVE

Solenoid 6-Way

2шт.

15

15083011

VALVE, CONTROL

Block Manifold Valve 3-Way Solenoid

2шт.

16

15220011

HOUSING

Tank Filter Housing

1шт.

17

Filter Element

2шт.

18

00310011

GAUGE

1шт.

19

TX401291

WASHER

1шт.

20

93121330

SCREW,#8 - 32 x 3", Aluminum

Binding Screw

1шт.

21

0137011

Filter Element

2шт.
