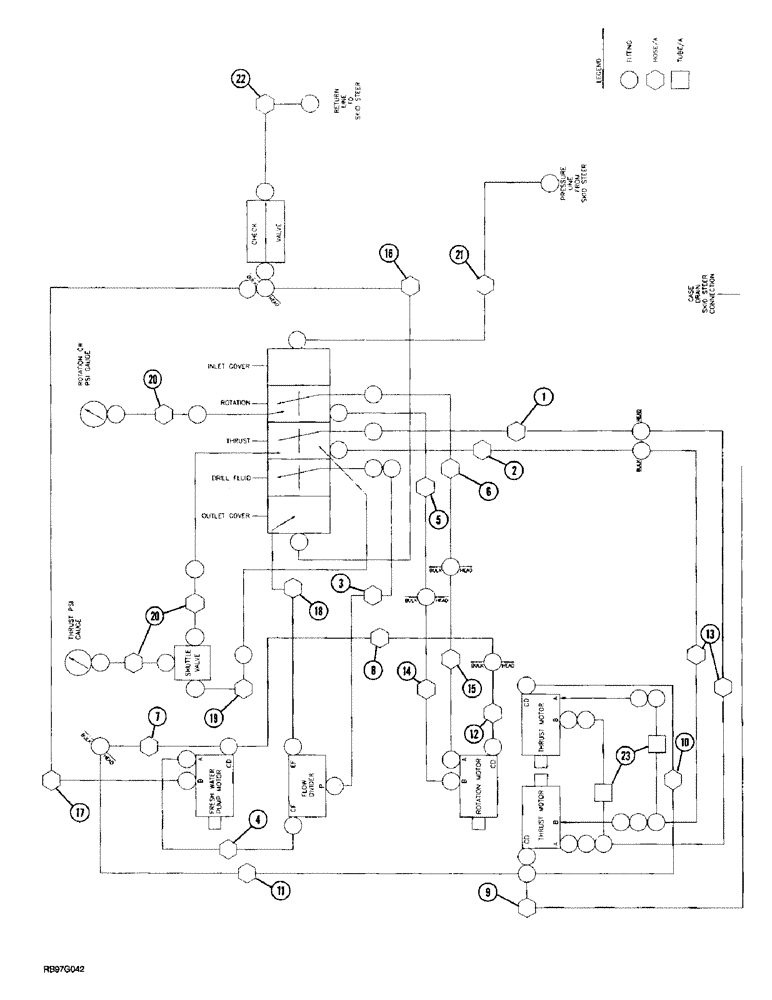

Запчасти Case 150CM (9-34) - HYDRAULIC CIRCUIT HOSES - 150CM

1

01500211

HOSE ASSY.

HOSE - 230 mm (9 inch) long, elbow to bulkhead fitting

1шт.

2

01500411

HOSE ASSY.

HOSE - 310 mm (12-1/4 inch) long, adapter to bulkhead fitting

1шт.

3

01500511

HOSE ASSY.

HOSE - 100 mm (4 inch) long, elbow to flow divider valve

1шт.

4

01500611

HOSE ASSY.

HOSE - 650 mm (25-1/2 inch) long, Serial Range: elbow-elbow

1шт.

5

01500711

HOSE ASSY.

HOSE - 370 mm (14-1/2 inch) long, adapter to bulkhead fitting

1шт.

6

01500811

HOSE ASSY.

HOSE - 310 mm (12-1/4 inch) long, adapter to bulkhead fitting

1шт.

7

01501011

HOSE ASSY.

HOSE - 180 mm (7 inch) long, tee to bulkhead fitting

1шт.

8

01501111

HOSE ASSY.

HOSE - 280 mm (11 inch) long, tee to bulkhead fitting

1шт.

9

01501311

HOSE ASSY.

HOSE - 915 mm (36 inch) long, cross to case drain

1шт.

10

01501411

HOSE ASSY.

HOSE - 460 mm (18 inch) long, Serial Range: cross-elbow

1шт.

11

01501511

HOSE ASSY.

HOSE - 750 mm (29-1/2 inch) long, cross to bulkhead fitting

1шт.

12

01501611

HOSE ASSY.

HOSE - 2415 mm (95 inch) long, elbow to bulkhead fitting

1шт.

13

01501811

HOSE ASSY.

HOSE - 760 mm (30 inch) long, tee to bulkhead fitting

2шт.

14

01502011

HOSE ASSY.

HOSE - 2290 mm (90 inch) long, elbow to bulkhead fitting

1шт.

15

01502111

HOSE ASSY.

HOSE - 2235 mm (88 inch) long, elbow to bulkhead fitting

1шт.

16

01502211

HOSE ASSY.

HOSE - 375 mm (14-3/4 inch) long, elbow to bulkhead fitting

1шт.

17

01502311

HOSE ASSY.

HOSE - 205 mm (8 inch) long, Serial Range: elbow-reducer

1шт.

18

01502411

HOSE ASSY.

HOSE - 355 mm (14 inch) long, elbow to control valve

1шт.

19

30001421

HOSE,2 mm ID x 380.00 mm

2.00 mm ID x 380.00 mm, elbow to elbow

1шт.

20

30001121

HOSE,2 mm ID x 340.00 mm

2.00 mm ID x 340.00 mm, elbow to elbow

3шт.

21

NSS

NOT SOLD SEPARAT

HOSE - 2290 mm (90 inch) long, Serial Range: adapter-pressure

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - 2440 mm (96 inch) long, Serial Range: adapter-return

1шт.

23

CK0103

TUBE ASSY.

TUBE - thrust motor, 1/2 inch ID

2шт.

THIS IS A PRIME PART, NOT A COMPLETE ASSY. DO NOT ORDER

1шт.
