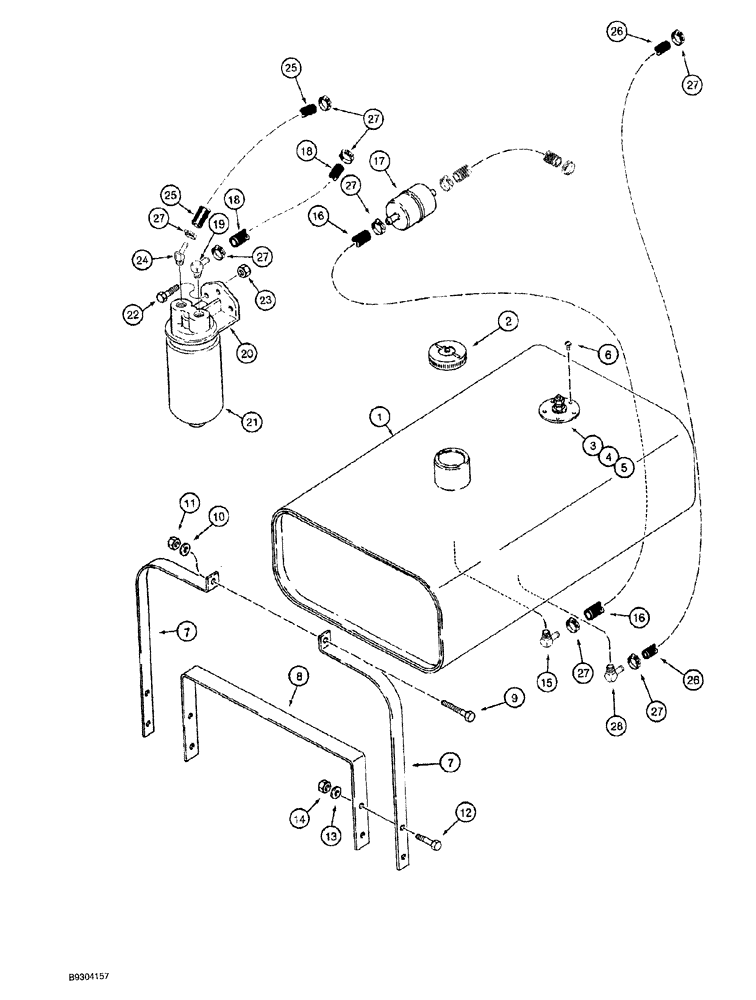

Запчасти Case MAXI-SNEAKER (03-002) - FUEL TANK AND LINES (03) - FUEL SYSTEM

H673305

FUEL TANK

ASSEMBLY, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

TANK fuel

1шт.

2

H151274

CYLINDER END CAP

fuel tank

1шт.

N13697

SENDER UNIT

SENDER ASSEMBLY fuel tank, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

SENDER fuel tank

1шт.

4

NSS

NOT SOLD SEPARAT

FLOAT sender

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET sender

1шт.

6

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

5шт.

7

H343848

STRAP

fuel tank

4шт.

8

H343855

SUPPORT

fuel tank

2шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

10

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

11

232-4115

LOCK NUT,5/16"-18, GC

2шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

13

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

8шт.

14

232-4115

LOCK NUT,5/16"-18, GC

8шт.

15

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW 90 degree, 5/16 stem end x 1/4 inch PT

1шт.

16

H433707

HOSE

1575 mm (62 inch) long, cut from S120317X bulk hose, fuel tank to injection pump

1шт.

17

D139225

FILTER, FUEL

in line

1шт.

18

118150A1

FUEL HOSE,7.90 mm ID x 290.00 mm, SAE 30R2

Cut from H424101 bulk hose, See below, Mechanical transfer pump to fuel filter

1шт.

19

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW 90 degree, 5/16 stem end x 1/4 inch PT

1шт.

114545A1

FILTER ASSY

remote fuel, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

21

J843760

FILTER

fuel, replaces 113984A1

1шт.

22

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

23

232-4114

LOCK NUT,1/4"-20, GC

2шт.

24

217-205

45 ELBOW,45 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW 45 degree, 5/16 stem end x 1/4 inch PT

1шт.

25

H411611

FUEL HOSE,7.90 mm ID x 160.00 mm, SAE 30R2

8 (5/16) x 152 mm (6 inch) long, cut from H424101 bulk hose, see below

1шт.

26

H433367

FUEL HOSE,6.80 mm ID x 1375.00 mm, SAE 30R2

Fuel return, Cut from H400184 bulk hose, See below

1шт.

27

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable, Replaces 214-1404

8шт.

28

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW 90 degree, 1/4 barb end x 1/4 inch PT

1шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

Bulk, Use to make items 18 and 25, No longer available

1шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

Bulk, Use to make items 16

1шт.

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

Cut from Bulk Hose, Use to Make Item 26

1шт.
