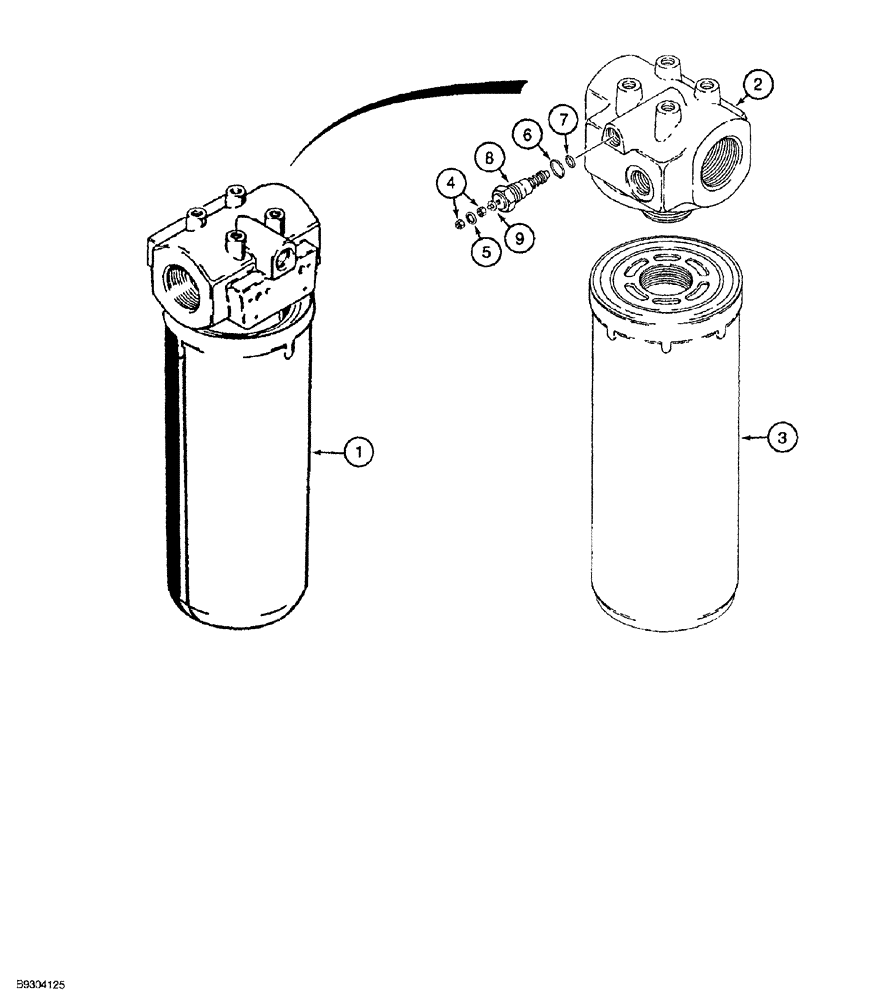

Запчасти Case MAXI-SNEAKER (08-008) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

1

D121629

FILTER, ENGINE OIL

FILTER, OIL ASSEMBLY hydraulic, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD filter, bypass valve components are not serviced separately

1шт.

3

D122562

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

N13268

PRESSURE SWITCH

ASSEMBLY restriction, electrical, Includes: Ref. 4 - 9

1шт.

4

129-667

NUT,#10-32, LH

2шт.

5

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

7

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Inner

1шт.

8

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER identification, red/white color

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
