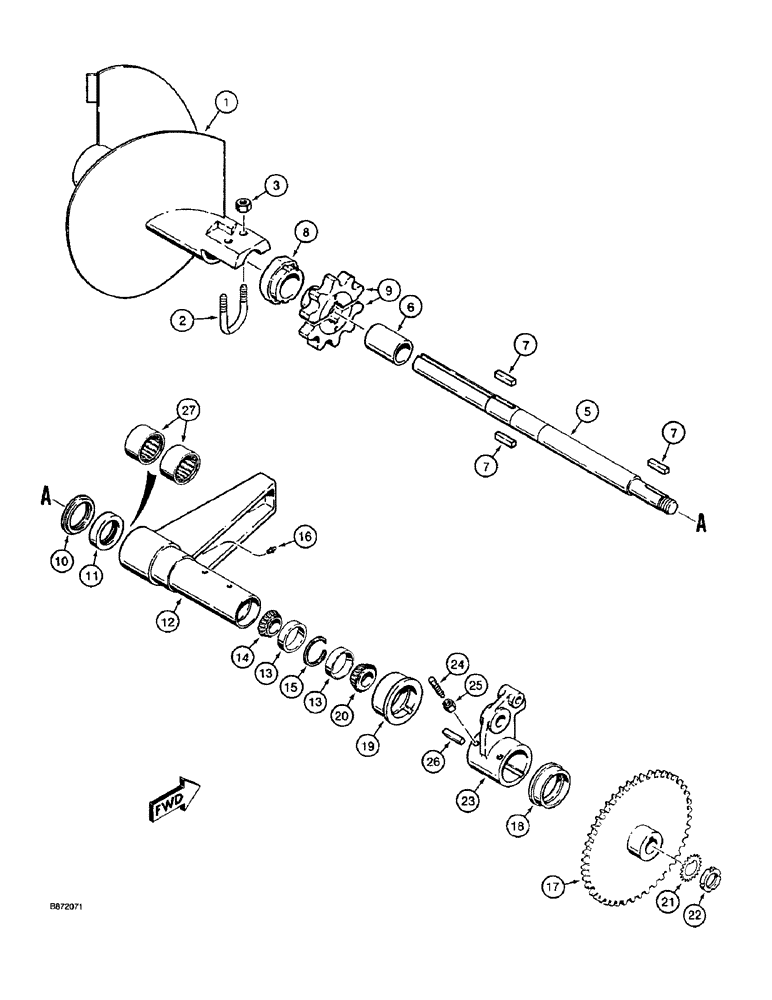

Запчасти Case TF300 (9-18) - TRENCHER BOOM MOUNTING SHAFT, SPROCKET, AND AUGER (09) - CHASSIS/ATTACHMENTS

1

H502526

AUGER

- dirt

1шт.

2

H34439

U-BOLT

- auger retaining

1шт.

3

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

H520411

SHAFT

ASSEMBLY - trencher drive, used on models with 102 mm (4 inch) through 305 mm (12 inch) wide chainline, if used, Includes: Ref. 5 and 6

1шт.

H529800

SHAFT

ASSEMBLY - trencher drive, used on models with 356 mm (14 inch) through 406 mm (16 inch) wide chainline, if used, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - trencher drive

1шт.

6

H70789

SLEEVE CYLINDER

SLEEVE - shaft

1шт.

7

H70045

KEY

- square, 3/8 x 1-3/4 inch long

3шт.

8

H69930

HUB CAP

RETAINER - shaft

1шт.

9

H69773

DRIVE SPROCKET

SPROCKET - split, digging chain drive

1шт.

Ref. 9---H69773---advised USES 2 BOLTS 413-632 AND 2 LOCK WASHERS 92-11038 NOT SHOWN IN THE TF300 CAT.

1шт.

10

H53546

SEAL

SEAL - split sprocket

1шт.

11

H749085

SEAL

- grease

1шт.

H528455

SUPPORT ASSY.

CASTING ASSEMBLY - boom mounting pivot, used on models with 102 mm (4 inch) through 305 mm (12 inch) wide chainline, if used, Includes: Ref. 12 - 16

1шт.

H529859

CASTING

ASSEMBLY - boom mounting pivot, used on models with 356 mm (14 inch) through 406 mm (16 inch) wide chainline, if used

1шт.

12

H110445

CASTING

- boom mounting pivot, used with H528455 casting assembly, if used

1шт.

12

H112318

PIVOT

CASTING - boom mounting pivot, used with H529859 casting assembly, if used

1шт.

13

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

2шт.

15

H91025

RETAINER

RING - retainer

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

17

H91041

DRIVE SPROCKET

SPROCKET - driven

1шт.

18

H28969

BUSHING

- right-hand

1шт.

19

H158576

BUSHING

- left-hand

1шт.

20

T17079

CUP

CONE - tapered roller bearing, with attached seal

1шт.

21

192-306

LOCK WASHER,Type W-06

WASHER - bearing lock, SAE No. W-06

1шт.

22

131-1034

BEARING LOCK NUT,Bearing, 1.1811" Bore

NUT - bearing lock, N-06, special for ball bearing

1шт.

23

H406504

CRANK

CASTING - boom cylinder crank

1шт.

24

H33746

SET SCREW,1/2" - 20 x 2 1/4"

- set, special, boom crank

2шт.

25

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

26

H33290

KEY

- square, 1/4 x 2-1/4 inch long

1шт.

27

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle

2шт.
