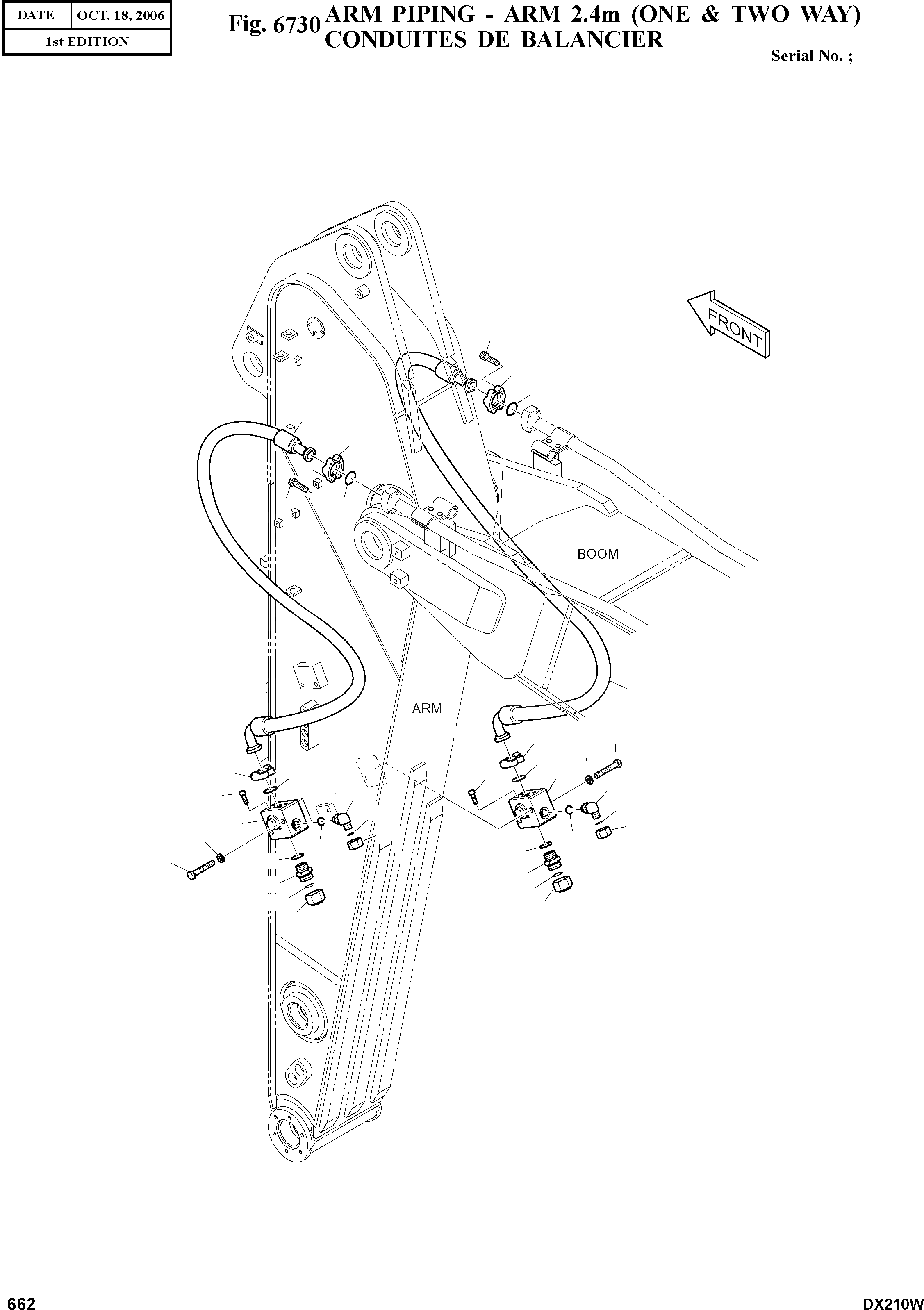

/ / / / / ARM PIPING - ARM 2.4M (ONE & TWO WAY)
Запчасти Doosan Daewoo ARM PIPING - ARM 2.4M (ONE & TWO WAY) OPTION PARTS
5
3
4
2
3
5
4
2
10
3
11
4
8
4
3
6
35
35
6
38
38
7
37
37
11
36
36
31
10
31
32
32
34
34
33
33
-
K1010254
ARM PIPING-ONE & TWO WAY
SC: D
-2шт.
2
2184-1100D90
HOSE
desc: TUYAU FLEXIBLE
2шт.
3
2181-9078
FLANGE;SPLIT
desc: BRIDE
8шт.
4
2180-1026D19
O-RING
desc: JOINT TORIQUE
4шт.
5
S2212466
BOLT;SOCKET
desc: BOULON
8шт.
6
S2212266
BOLT;SOCKET
desc: BOULON
8шт.
7
K1000334A
VALVE;STOP
desc: VANNE
1шт.
8
K1000338A
VALVE;STOP
desc: VANNE
1шт.
10
S0563666
BOLT
desc: BOULON A 6 PANS
4шт.
11
S5102803
WASHER;SPRING
desc: RONDELLE ELASTIQUE
4шт.
31
S8000291
O-RING
desc: JOINT TORIQUE
2шт.
32
2181-4133D6
ADAPTER
desc: ADAPTEUR
2шт.
33
2181-2817D2
PLUG
desc: BOUCHON
2шт.
34
S8030161
O-RING
desc: JOINT TORIQUE
2шт.
35
2181-2815D3
ELBOW
desc: COUDE
2шт.
36
S8000181
O-RING
desc: JOINT TORIQUE
2шт.
37
2181-2817D4
PLUG
desc: BOUCHON
2шт.
38
S8030181
O-RING
desc: JOINT TORIQUE
2шт.
