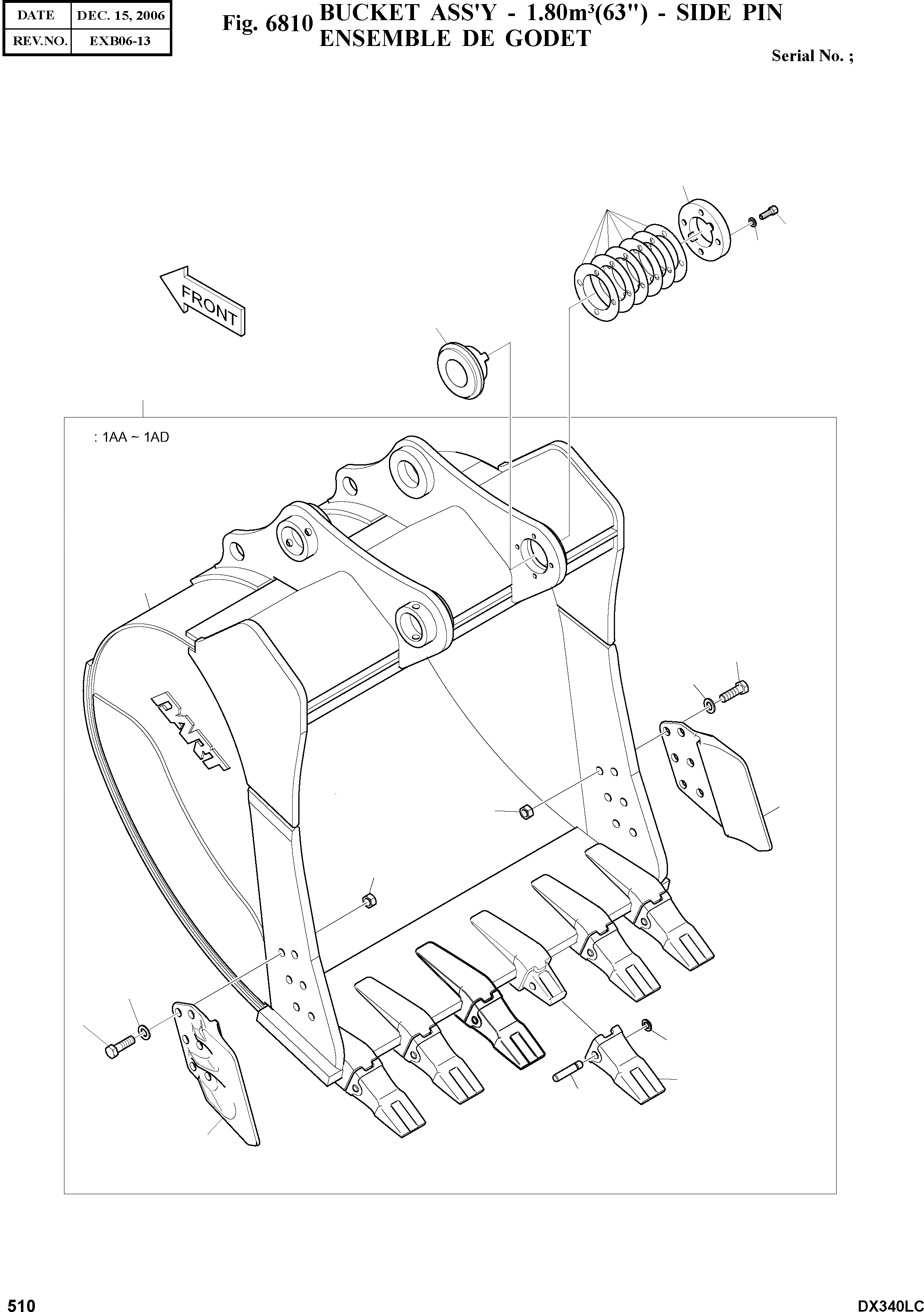

Запчасти Doosan Daewoo BUCKET ASSY - 1.80M©ш(63") - SIDE PIN OPTIONAL PARTS

-

K1013001

BUCKET ASS'Y

SC: D

-2шт.

1

K1013002

BUCKET SUB ASS'Y-1.80§©

desc: ENSEMBLE DE GODET

1шт.

1A

K1013003

BUCKET;WITH TOOTH-1.80§©

desc: . GODET

1шт.

1AA

K1013004

BUCKET-1.80§©

SC: D

1шт.

1AB

713-00034

POINT;TOOTH

desc: .. DENT

6шт.

1AC

705-00006

PIN;LOCKING

desc: .. GOUPILLE

6шт.

1AD

114-00246

WASHER;LOCKING

desc: .. RONDELLE

6шт.

1B

2713-6034A

CUTTER;SIDE(R.H)

desc: . COIN DE GODET DROIT

1шт.

1C

2713-6035A

CUTTER;SIDE(L.H)

desc: . COIN DE GODET DROIT

1шт.

1D

S0574961

BOLT

desc: . BOULON A 6 PANS

12шт.

1E

S4013333

NUT

desc: . ECROU

12шт.

1F

2114-1831A

WASHER;HARDEN

desc: . RONDELLE

12шт.

2

K1005253

BUSH;FLANGE

desc: BRIDE

1шт.

3

K1005254A

STOPPER

desc: TAQUET D'ARRET

1шт.

4

K1013571

SHIM

desc: CALE

6шт.

5

S2221566

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

6

K1014251

WASHER;HARDEN

desc: RONDELLE

4шт.
