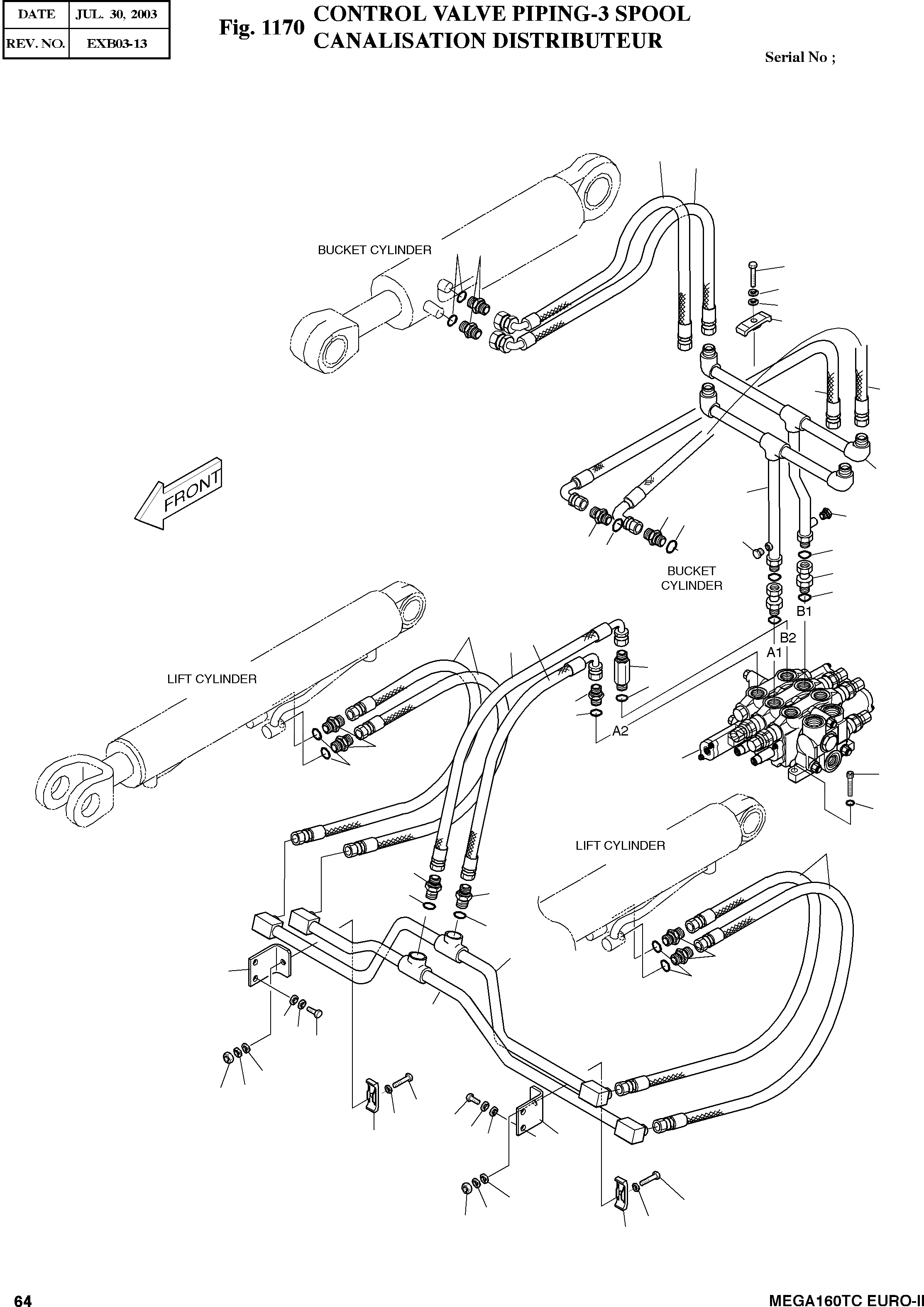

/ / / / / CONTROL VALVE PIPING-3 SPOOL
Запчасти Doosan Daewoo CONTROL VALVE PIPING-3 SPOOL BODY PARTS
29
24
18
11
13
16
15
2
24
29
22
23
11
18
30
30
11
19
18
9
10
7
6
5
26
19
25
19
11
8
18
20
21
7
12
18
12
18
4
11
1
18
3
15
16
17
15
14
16
13
15
17
16
2
1
15
15
13
16
14
15
2
-
400-00300
CONTROL VALVE PIPING
SC: D
-2шт.
1
4197-2419A
BRACKET
desc: SUPPORT
2шт.
2
2124-1025D2
CLAMP;PIPE
desc: COLLIER
4шт.
3
4182-1790C
PIPE
desc: CONDUITE
1шт.
4
4182-1789B
PIPE
desc: CONDUITE
1шт.
5
2184-1036D440
HOSE PF3/4(ST-90)-780L
desc: TUYAU FLEXIBLE
1шт.
6
2184-1036D109
HOSE PF3/4(ST-90)-565L
desc: TUYAU FLEXIBLE
1шт.
7
2184-1054D57
HOSE PF1/2(ST-ST)-1050L
desc: TUYAU FLEXIBLE
4шт.
8
420-00142
VALVE;CONTROL 3-SPOOL
desc: TIROIR DE COMMANDE
1шт.
9
2181-2566D11
ADAPTER
desc: RACCORD ADAPTATEUR
2шт.
10
S8030121
O-RING
desc: JOINT TORIQUE
2шт.
11
2181-1126D6
ADAPTER PFO1/2-PF1/2
desc: RACCORD
8шт.
12
2181-1126D88
ADAPTER PFO1/2-PF3/4
desc: RACCORD ADAPTATEUR
2шт.
13
S0558653
BOLT M10X1.5X55
desc: BOULON A 6 PANS
4шт.
14
S4012633
NUT
desc: ECROU M10X1.5
2шт.
15
S5010613
WASHER;PLAIN
desc: RONDELLE PLATE
6шт.
16
S5102603
WASHER;SPRING
desc: RONDELLE ELASTIQUE
4шт.
17
S0511853
BOLT M10X20
desc: BOULON A 6 PANS
4шт.
18
S8000181
O-RING
desc: JOINT TORIQUE
8шт.
19
S8040141
O-RING
desc: JOINT TORIQUE
4шт.
20
S2215566
BOLT;SOCKET M12X1.75X15
desc: SUPPORT
3шт.
21
S5110701
WASHER;SPRING
desc: RONDELLE ELASTIQUE
3шт.
22
193-00127B
PIPE
SERIAL: 2001-2017
1шт.
22
193-00127C
PIPE
SERIAL: 2018
1шт.
23
193-00128A
PIPE
SERIAL: 2001-2017
1шт.
23
193-00128B
PIPE
SERIAL: 2018
1шт.
24
DS2055628
HOSE PF1/2-1600L
SERIAL: 2001-2020
2шт.
24
DS2055801
HOSE PF1/2-1750L
SERIAL: 2021
2шт.
25
2181-1126D140
ADAPTER UN1 3/16-PF3/4
desc: RACCORD ADAPTATEUR
1шт.
26
DS2213158
ADAPTER UN1 3/16-PF3/4
desc: RACCORD ADAPTATEUR
1шт.
29
DS2055629
HOSE PF1/2-1650L
SERIAL: 2001-2020
2шт.
29
DS2055802
HOSE PF1/2-1800L
SERIAL: 2021
2шт.
30
2181-2047
PLUG
desc: BOUCHON
2шт.
