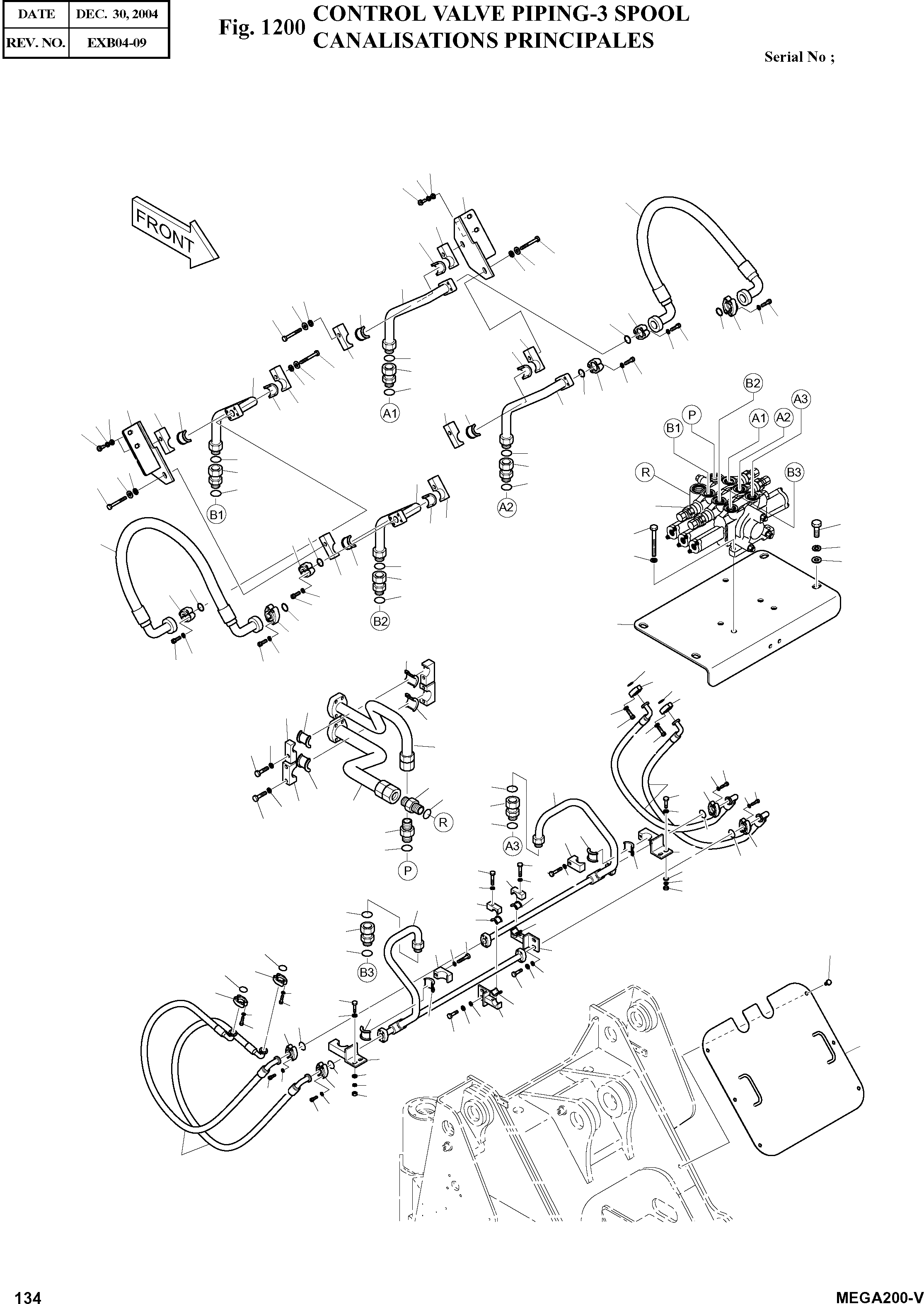

/ / / / / CONTROL VALVE PIPING-3 SPOOL
Запчасти Doosan Daewoo CONTROL VALVE PIPING-3 SPOOL BODY PARTS
28
36
33
35
15
43
16
17
40
33
36
44
33
36
27
17
40
24
28
25
16
24
27
28
17
25
20
46
19
39
40
28
36
18
25
33
37
14
24
17
46
16
17
36
46
8
17
33
35
20
20
36
19
33
19
7
40
18
18
1
29
46
24
17
32
37
50
30
33
31
20
17
19
24
16
27
18
25
28
2
24
27
49
25
25
24
28
28
27
24
27
49
51
25
10
28
33
25
4
38
28
28
25
23
41
27
6
28
20
25
21
47
10
11
19
3
36
33
18
38
17
22
24
16
21
13
27
24
34
36
34
16
17
33
33
33
33
48
17
5
16
20
17
17
19
34
33
45
16
24
13
18
27
24
36
33
27
25
35
47
17
17
25
36
24
33
17
13
27
36
28
35
9
12
36
24
33
25
27
28
48
25
28
42
-
400-00561
CONTROL VALVE PIPING(OPT.)
SC: D
-2шт.
1
420-00142
VALVE;CONTROL(3-SPOOL)
desc: TIROIR DE COMMANDE
1шт.
2
195-01320
SUPPORT;CONTROL V/V
desc: SUPPORT
1шт.
3
193-00571
PIPE;RETURN
desc: CONDUITE
1шт.
4
193-00572
PIPE;PUMP
desc: CONDUITE
1шт.
5
193-00573
PIPE;BOOM RAISE
desc: CONDUITE
1шт.
6
193-00574
PIPE;BOOM DOWN
desc: CONDUITE
1шт.
7
193-00575
PIPE;BUCKET CROWD
desc: CONDUITE
1шт.
8
193-00576
PIPE;BUCKET DUMP
desc: CONDUITE
1шт.
9
621-01344
COVER
desc: COUVERCLE
1шт.
10
2161-2481
RUBBER
desc: CAOUTCHOUC
2шт.
11
191-00364
CLAMP;PIPE
desc: COLLIER
1шт.
12
195-00604A
BRACKET
desc: SUPPORT
1шт.
13
195-01344
BRACKET
desc: SUPPORT
3шт.
14
195-02003
BRACKET
SERIAL: 1001-1058
1шт.
14
195-02003A
BRACKET
SERIAL: 1059
1шт.
15
195-02004
BRACKET
SERIAL: 1001-1058
1шт.
15
195-02004A
BRACKET
SERIAL: 1059
1шт.
16
2124-1601A
CLAMP;PIPE
desc: ATTACHE DE TUYAU
8шт.
17
2161-2250A
RUBBER
desc: CAOUTCHOUC
16шт.
18
S8040141
O-RING
desc: JONT TORIQUE
6шт.
19
2181-2566D11
ADAPTER
desc: ADAPTEUR
6шт.
20
S8030121
O-RING
desc: JONT TORIQUE
6шт.
21
S8040161
O-RING
desc: JONT TORIQUE
2шт.
22
2181-1126D5
ADAPTER
desc: ADAPTEUR
1шт.
23
2181-1126D151
ADAPTER
desc: ADAPTEUR
1шт.
24
2180-1026D2
O-RING
desc: JONT TORIQUE
14шт.
25
S5110603
WASHER;SPRING M10
desc: RONDELLE ELASTIQUE
56шт.
27
2181-9079
FLANGE;SPLIT SAE
desc: FLASQUE EN DEUX PARTIES
24шт.
28
S2212266
BOLT;SOCKET M10X1.5X30
desc: BOULON A 6PANS
56шт.
29
S0521356
BOLT M16X2.0X35
desc: BOULON A 6PANS
4шт.
30
S5010913
WASHER;PLAIN M16
desc: RONDELLE PLATE
4шт.
31
S5102903
WASHER;SPRING M16
desc: RONDELLE ELASTIQUE
4шт.
32
S2215266
BOLT;SOCKET M12X1.75X30
SERIAL: 1001-1152
3шт.
32
S2215466
BOLT;SOCKET M12X1.75X40
SERIAL: 1153
3шт.
33
S5102703
WASHER;SPRING M12
desc: RONDELLE ELASTIQUE
26шт.
34
S0560653
BOLT M12X1.75X45
desc: BOULON A 6PANS
4шт.
35
S0515053
BOLT M12X1.75X20
desc: BOULON A 6PANS
8шт.
36
2114-1058D46
WASHER;PLAIN
desc: RONDELLE
20шт.
37
2181-2157D1
FLANGE;COVER
desc: BRIDE
2шт.
38
S0561053
BOLT M12X1.75X65
desc: BOULON A 6PANS
3шт.
39
193-00577
PIPE;OPTION(R.H)
desc: COUDUITE
1шт.
40
S0561053
BOLT M12X1.75X65
desc: BOULON A 6PANS
4шт.
41
2184-1250D106
HOSE
desc: TUYAU FLEXIBLE
2шт.
42
2184-1250D105
HOSE
desc: TUYAU FLEXIBLE
2шт.
43
DS2045294
HOSE
desc: TUYAU FLEXIBLE
1шт.
44
193-00578
PIPE-(L.H)
desc: CONDUITE
1шт.
45
2120-2196D1
BOLT;SET M10X1.5X20
desc: BOULON A 6PANS
6шт.
46
124-00181
CLAMP;PIPE
desc: COLLIER
4шт.
47
S0560753
BOLT M12X1.75X45
desc: BOULON A 6PANS
4шт.
48
S4012733
NUT M12X1.75
desc: ECROU
4шт.
49
2161-2267A
RUBBER
desc: CAOUTCHOUC
2шт.
50
DS2045295
HOSE
desc: TUYAU FLEXIBLE
1шт.
51
124-00225
CLAMP;PIPE
desc: COLLIER
1шт.
