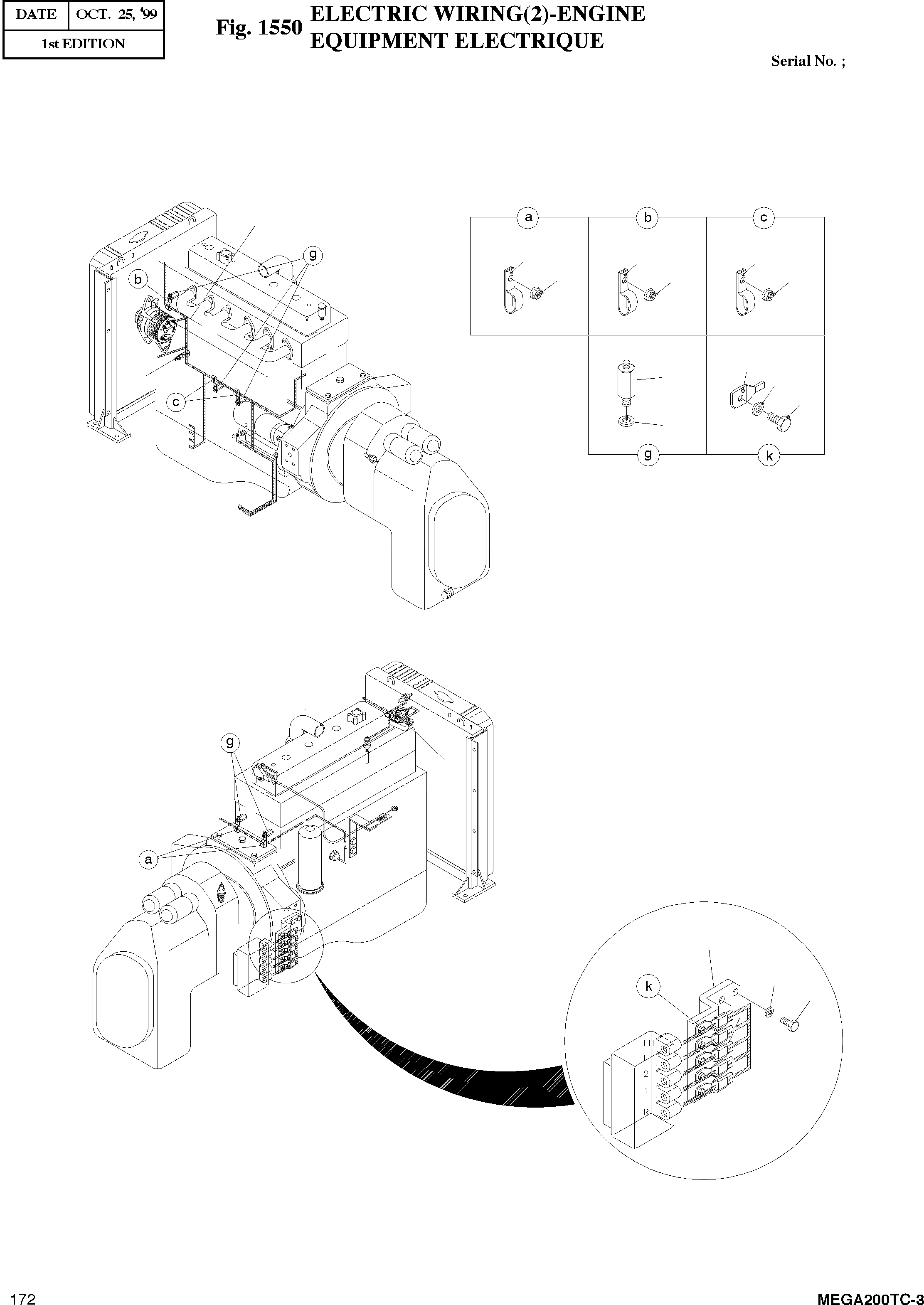

Запчасти Doosan Daewoo ELECTRIC WIRING(2)-ENGINE BODY PARTS

-

500-00022

ELECTRIC PARTS(3)

SC: D

-2шт.

3

4530-1696A

HARNESS;ENGINE

desc: FAISCEAU

1шт.

26

2197-2199

BRACKET;HOUSING

desc: SUPPORT

5шт.

28

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

5шт.

29

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

5шт.

30

4197-2200A

BRACKET;T/M SOL-VALVE

desc: SUPPORT

1шт.

31

S0686151

BOLT M12X1.5X25

desc: BOULON A 6 PANS

2шт.

32

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

2шт.

33

2120-2151

BOLT;STUD M10X1.5X15/M8

desc: BOULON A 6 PANS

5шт.

34

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

5шт.

35

2124-1509D1

CLIP d12/M8

desc: ATTACHE

3шт.

36

2124-1509D2

CLIP d18/M8

desc: ATTACHE

1шт.

37

2124-1509D3

CLIP d24/M8

desc: ATTACHE

2шт.

40

2121-1305

NUT M8X1.25

desc: ECROU

5шт.

45

2124-1353D8

CLIP

desc: ATTACHE

1шт.
