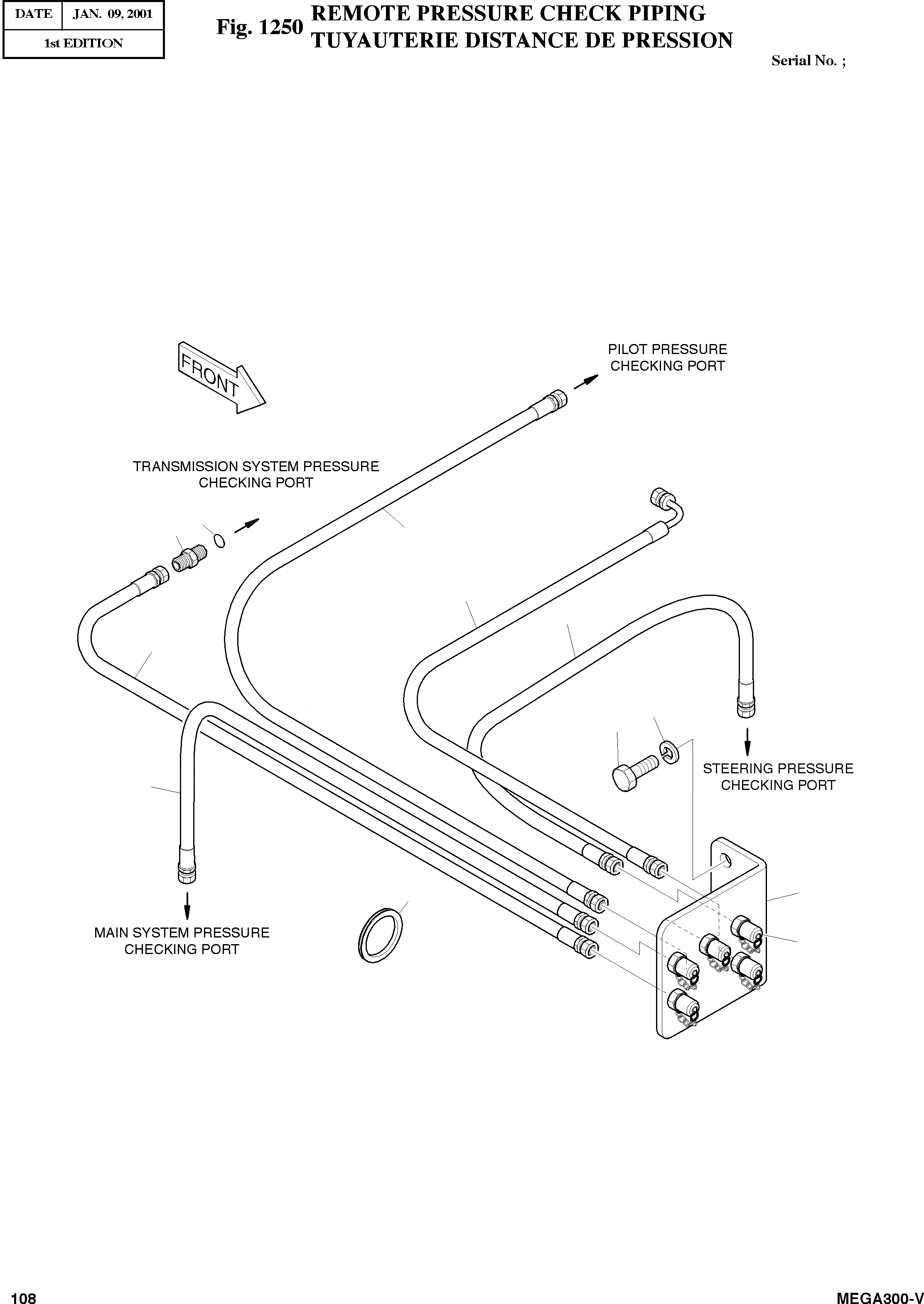

Запчасти Doosan Daewoo REMOTE PRESSURE CHECK PIPING BODY PARTS

-

400-00562

REMOCON PRESSURE CHECK PIPING

SC: D

-2шт.

1

284-00008A

CHECK PORTS ASS'Y

desc: CHECK

1шт.

1A

120-00003

SCREW;COUPLING

desc: . VIS

5шт.

2

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

4

181-00372A

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

5

180-00408

O-RING

desc: JOINT TORIQUE

1шт.

6

2184-1026D37

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1036D299

HOSE PF1/4-1350L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1026D106

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1026D38

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1036D12

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

11

2161-1908D2

RUBBER

desc: PLAQUE

1шт.
