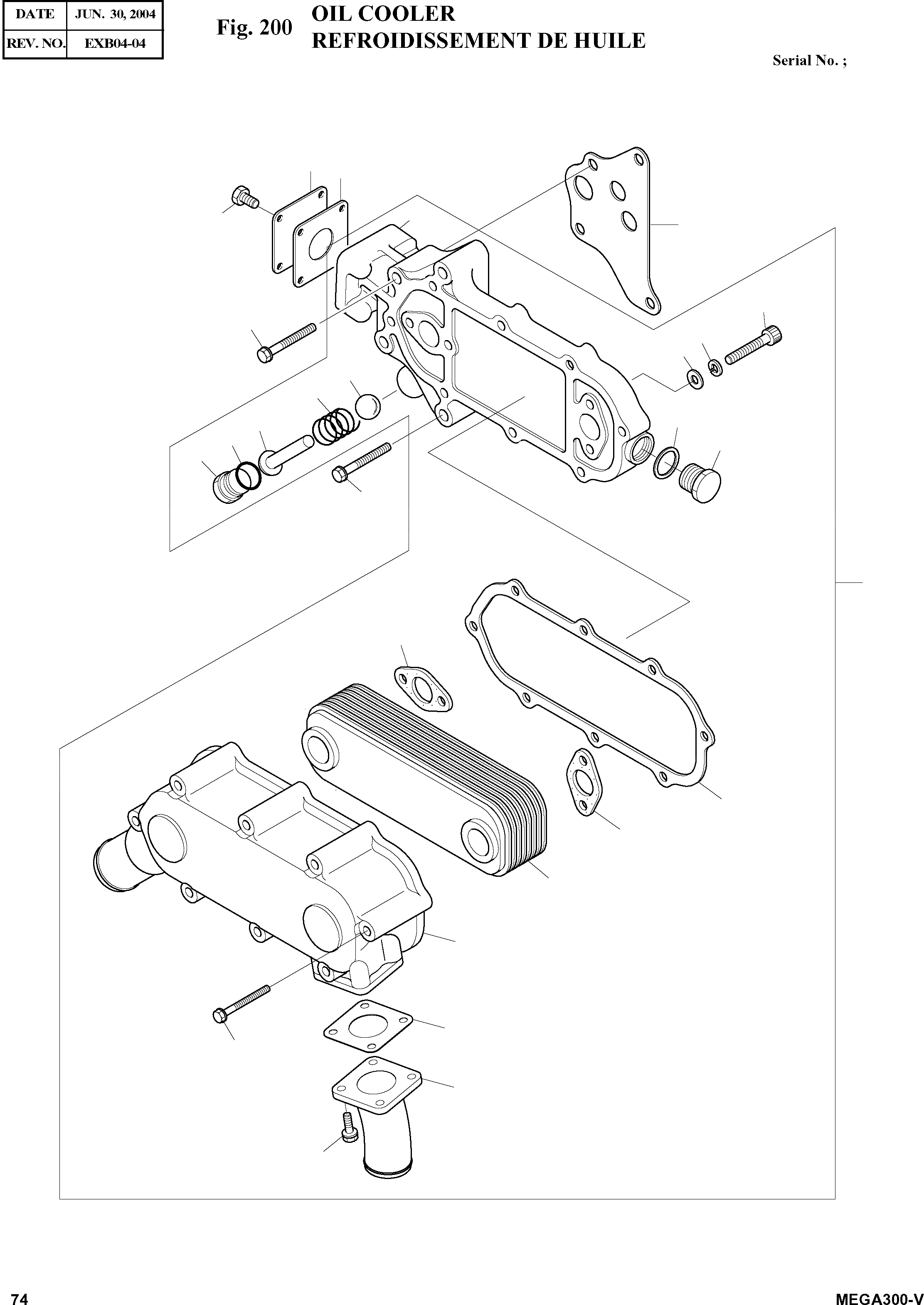

OIL COOLER

Запчасти Doosan Daewoo OIL COOLER ENGINE PARTS

24
25
2
26
23
20
22
12
11
5
6
4
8
19
3
7
21
1
10
17
10
9
13
15
18
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

65.05601-7137A

OIL COOLER ASS'Y

SERIAL: 031009

1шт.

1

65.05601-7137B

OIL COOLER ASS'Y

SERIAL: 031010

1шт.

2

65.05604-5030

HOUSING;OIL COOLER

desc: . CARTER

1шт.

3

65.90310-0136

SCREW;PLUG

SERIAL: 040302

1шт.

3

65.90310-0136A

SCREW;PLUG

SERIAL: 040303

1шт.

4

06.56190-0718

RING;SEAL

desc: . BAGUE

1шт.

5

06.31641-0429

VALVE;BALL BY-PASS

desc: . VANNE

1шт.

6

65.97601-0004

SPRING

desc: . RESSORT

1шт.

7

65.90310-0003

SCREW;PLUG

desc: . VIS

1шт.

8

65.05611-0001

PIN

desc: . GOUJON

1шт.

9

65.05606-5020

INSERT;OIL COOLER

desc: . INSERTION

1шт.

10

65.96601A0018

GASKET;OIL COOLER

SERIAL: 031009

2шт.

10

65.96601-0018A

GASKET;OIL COOLER

SERIAL: 031010

2шт.

11

06.15030-0513

WASHER;PLAIN

desc: . RONDELLE PLATE

4шт.

12

06.16110-0106

WASHER;SPRING

desc: . RONDELLE ELASTIQUE

4шт.

13

65.05605-0028

HEAD;OIL

desc: . CULASSE

1шт.

14

65.06301-0160

PIPE;COOLER WATER

desc: . CONDUITE

1шт.

15

65.96601-0029

GASKET;FLANGE

desc: . JOINT

1шт.

16

06.01923-3112

BOLT ASS'Y M8X18

desc: . BOULON A 6 PANS

4шт.

17

65.05902A0008

GASKET;OIL COOLER COVER

SERIAL: 031009

1шт.

17

65.05902-0008A

GASKET;OIL COOLER COVER

SERIAL: 031010

1шт.

18

06.01923-3126

BOLT ASS'Y M8X75

desc: . BOULON A 6 PANS

8шт.

19

06.56190-0728

RING;SEAL

desc: . BAGUE

1шт.

20

06.02090-0418

BOLT;SOCKET HEAD

desc: . BOULON A 6 PANS CREUX

4шт.

21

65.90001-6011

BOLT ASS'Y M10X70

desc: BOULON A 6 PANS

2шт.

22

06.01924-3225

BOLT ASS'Y M10X70

desc: BOULON A 6 PANS

2шт.

23

65.05902A0011

GASKET;OIL COOLER HOUSING

desc: JOINT

1шт.

24

65.91605-0110

COVER;BLIND

desc: COUVERCLE

1шт.

25

65.96601-0347

GASKET;OIL COOLER

desc: JOINT

1шт.

26

06.01913-3112

BOLT ASS'Y M8X18

desc: BOULON A 6 PANS

4шт.
