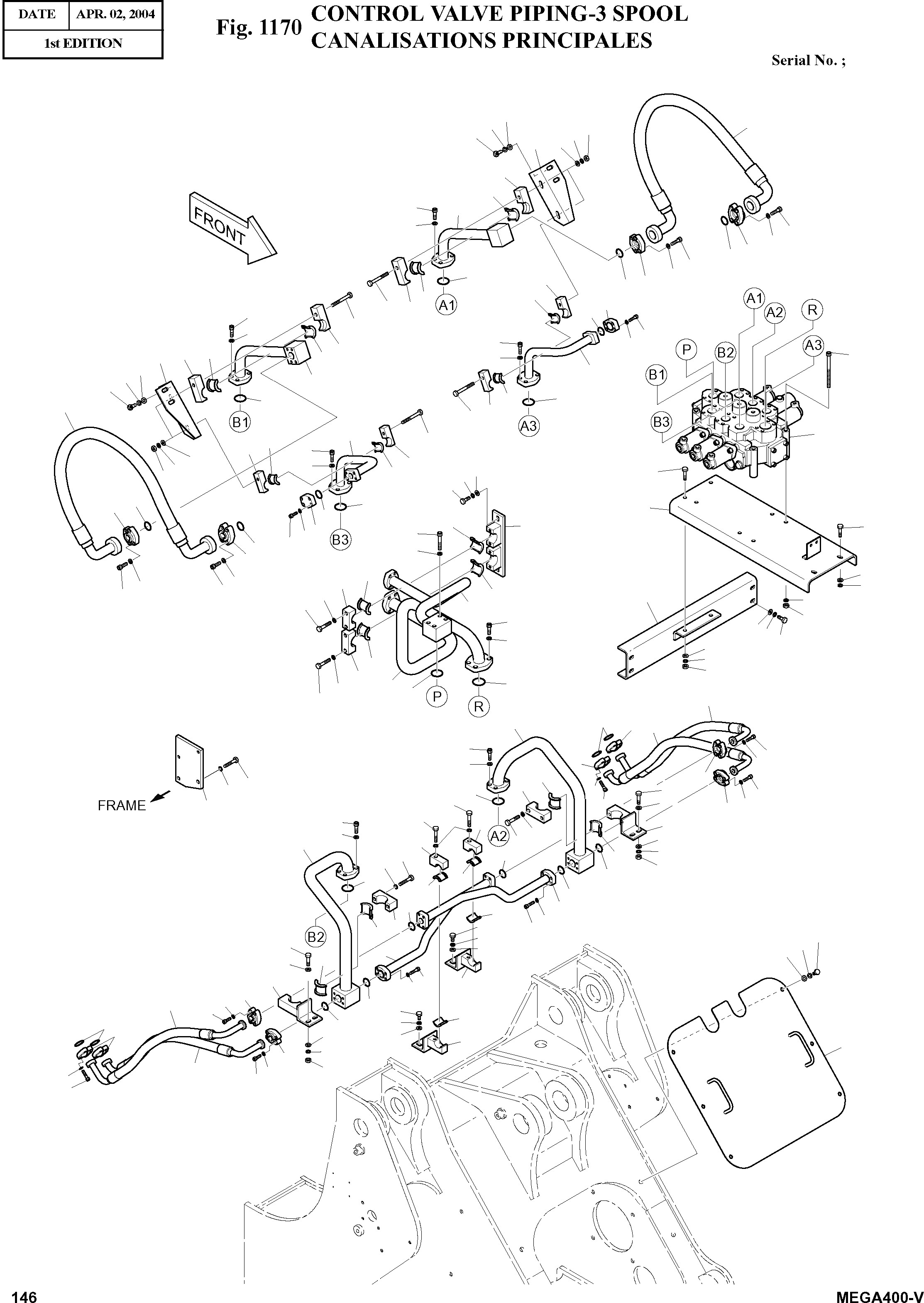

/ / / / / CONTROL VALVE PIPING-3 SPOOL
Запчасти Doosan Daewoo CONTROL VALVE PIPING-3 SPOOL BODY PARTS
36
30
11
31
30
60
36
23
25
9
15
28
27
50
27
49
48
50
33
20
27
49
48
26
9
53
43
28
38
25
38
27
44
28
45
9
25
25
22
32
27
9
36
51
30
14
60
33
26
33
57
20
41
52
1
26
41
20
28
36
27
20
36
30
40
30
31
26
35
48
49
33
2
43
9
40
8
53
34
45
44
27
48
49
9
55
16
27
30
27
30
3
50
18
50
30
37
12
31
28
55
30
27
55
35
30
18
31
17
29
13
30
33
59
37
43
42
5
58
28
44
42
27
45
18
42
17
62
40
33
63
45
44
36
37
44
45
61
42
37
28
30
20
56
27
30
36
20
4
37
30
37
43
30
18
31
33
43
26
26
43
43
7
26
45
39
17
46
39
18
30
30
40
36
36
6
18
36
21
46
19
42
45
45
10
44
43
39
26
43
43
30
42
36
36
19
54
30
42
31
47
45
45
44
44
-
400-01433
CONTROL VALVE PIPING
SC: D
-2шт.
1
426-00257
VALVE;CONTROL
desc: VANNE
1шт.
2
195-00539
SUPPORT
desc: SUPPORT
1шт.
3
4195-3975B
SUPPORT
desc: SUPPORT
1шт.
4
193-00199A
PIPE(R.H);BOOM DOWN
desc: CONDUITE
1шт.
5
193-00197A
PIPE(L.H);BOOM UP
desc: CONDUITE
1шт.
6
193-00198
PIPE;BOOM DOWN
desc: CONDUITE
1шт.
7
193-00200
PIPE;BOOM UP
desc: CONDUITE
1шт.
8
195-00540A
BRACKET;CONTROL PIPE
desc: SUPPORT
1шт.
9
2161-2481
RUBBER
desc: CAOUTCHOUC
6шт.
10
DS2045217
HOSE;BOOM 1"-1050L
desc: TUYAU FLEXIBLE
1шт.
11
DS2045209
HOSE;BUCKET 1.25"-1500L
desc: TUYAU FLEXIBLE
1шт.
12
193-00194A
PIPE;PUMP
desc: CONDUITE
1шт.
13
193-00193A
PIPE;RETURN
desc: CONDUITE
1шт.
14
193-00195A
PIPE;BUCKET DUMP
desc: CONDUITE
1шт.
15
193-00196A
PIPE;BUCKET CROWD
desc: CONDUITE
1шт.
16
191-00364
CLAMP;PIPE
desc: COLLIER
1шт.
17
191-00365
CLAMP;PIPE
desc: COLLIER
3шт.
18
198-00008
RUBBER
desc: CAOUTCHOUC
6шт.
19
195-00541A
BRACKET;CONTROL PIPE
desc: SUPPORT
2шт.
20
191-00366
CLAMP;PIPE
desc: COLLIER
6шт.
21
195-00542A
BRACKET;CONTROL PIPE
desc: SUPPORT
1шт.
22
195-00543B
ANGLE;R.H
desc: SUPPORT;ANGLE
1шт.
23
195-00544B
ANGLE;L.H
desc: SUPPORT;ANGLE
1шт.
25
124-00049
CLAMP;PIPE
desc: COLLIER
4шт.
26
2161-2267A
RUBBER
desc: CAOUTCHOUC
8шт.
27
S5110703
WASHER;SPRING
desc: RONDELLE ELASTIQUE
48шт.
28
S2215466
BOLT;SOCKET M12X1.75X40
desc: BOULON DE PLOT
28шт.
29
2180-1026D27
O-RING
desc: JOINT TORIQUE
1шт.
30
S5102703
WASHER;SPRING
desc: RONDELLE ELASTIQUE
41шт.
31
S4012733
NUT
desc: ECROU
13шт.
32
4120-2142A
BOLT;SOCKET M12X1.75X170
desc: BOULON DE PLOT
3шт.
33
2180-1026D24
O-RING
desc: JOINT TORIQUE
7шт.
34
S2216166
BOLT;SOCKET M12X1.75X75
desc: BOULON DE PLOT
4шт.
35
S0560453
BOLT M12X1.75X35
desc: BOULON A 6 PANS
6шт.
36
2114-1058D46
WASHER;PLAIN
desc: RONDELLE
28шт.
37
S0561153
BOLT M12X1.75X70
desc: BOULON A 6 PANS
10шт.
38
S0562053
BOLT M12X1.75X115
desc: BOULON A 6 PANS
2шт.
39
S0515053
BOLT M12X1.75X25
desc: BOULON A 6 PANS
10шт.
40
S0560753
BOLT M12X1.75X50
desc: BOULON A 6 PANS
4шт.
41
S0562053
BOLT M12X1.75X115
desc: BOULON A 6 PANS
2шт.
42
2181-9078
FLANGE;HALF
desc: BRIDE
16шт.
43
2180-1026D19
O-RING
desc: JOINT TORIQUE
12шт.
44
S2212266
BOLT;SOCKET M10X1.5X30
desc: BOULON DE PLOT
40шт.
45
S5110603
WASHER;SPRING
desc: RONDELLE ELASTIQUE
48шт.
46
S2212466
BOLT;SOCKET M10X1.5X40
desc: BOULON DE PLOT
8шт.
47
DS2045215
HOSE;BOOM 1"-970L
desc: TUYAU FLEXIBLE
1шт.
48
2180-1026D23
O-RING
desc: JOINT TORIQUE
4шт.
49
4215-1003D7
FLANGE;HALF
desc: BRIDE
8шт.
50
S2215366
BOLT;SOCKET M12X1.75X35
desc: BOULON DE PLOT
16шт.
51
193-00205
PIPE;L.H
desc: CONDUITE
1шт.
52
193-00204
PIPE;R.H
desc: CONDUITE
1шт.
53
2181-2157D5
FLANGE
desc: BRIDE
2шт.
54
621-00746A
COVER
desc: COUVERCLE
1шт.
55
2114-1058D30
WASHER;PLAIN
desc: RONDELLE PLATE
8шт.
56
195-00905
BRACKET;L.H
desc: SUPPORT
1шт.
57
DS2045332
HOSE;BUCKET 1.25"-1440L
desc: TUYAU FLEXIBLE
1шт.
58
DS2045218
HOSE;BOOM 1"-1050L
desc: TUYAU FLEXIBLE
1шт.
59
DS2045216
HOSE;BOOM 1"-970L
desc: TUYAU FLEXIBLE
1шт.
60
S0515153
BOLT M12X1.75X28
desc: BOULON A 6 PANS
4шт.
61
191-03729
PLATE
desc: PLAQUE
1шт.
62
S0508853
BOLT
desc: BOULON
2шт.
63
S5102503
WASHER;SPRING
desc: RONDELLE ELASTIQUE
2шт.
