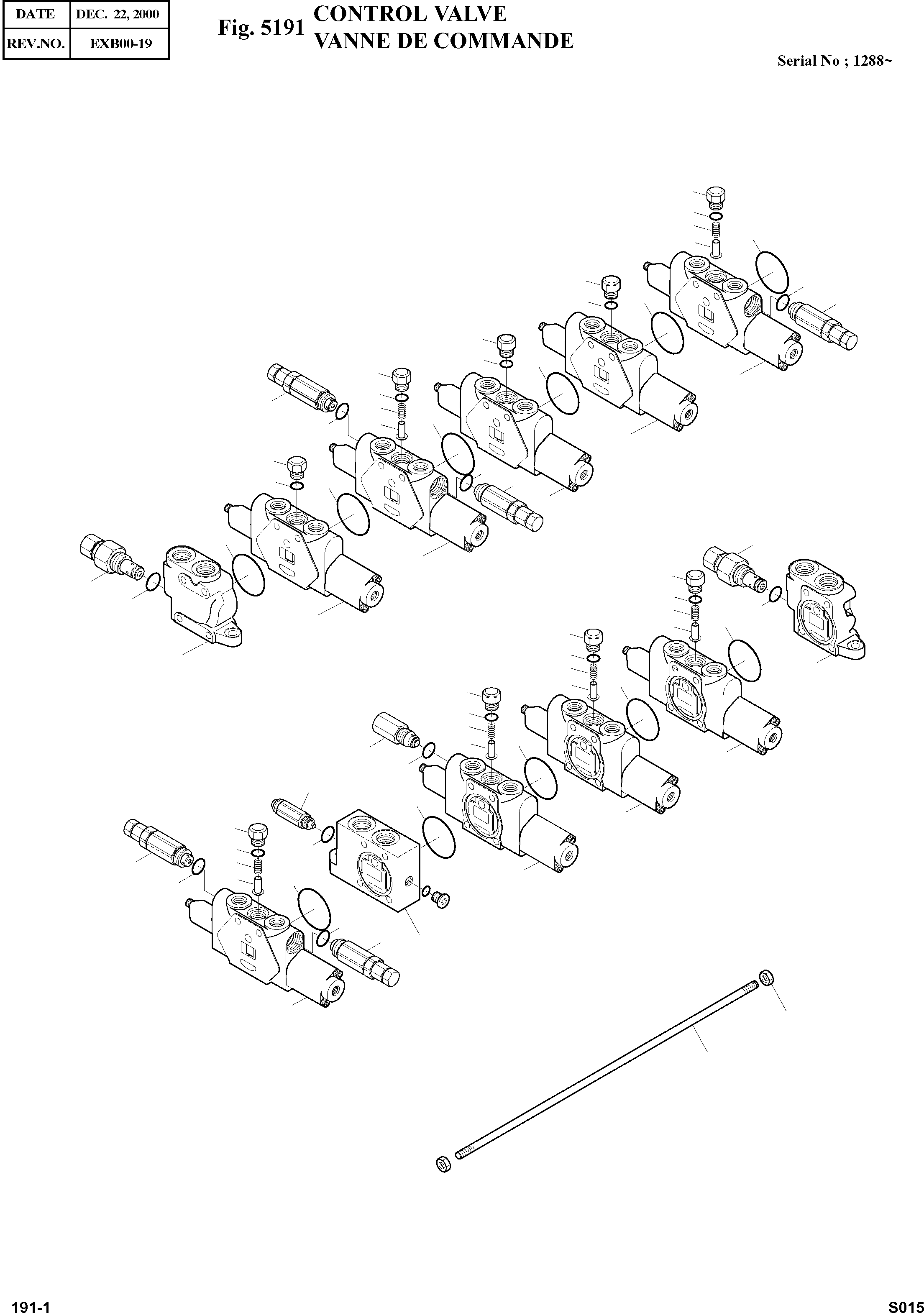

CONTROL VALVE

Запчасти Doosan Daewoo CONTROL VALVE OTHER PARTS

24
25
23
21
22
24
18
21
25
17
24
25
21
24
6
25
17
23
21
22
18
5
24
18
21
25
17
4
21
15
3
24
15
25
16
16
23
2
21
22
24
25
1
12
23
21
22
24
25
23
21
22
19
11
18
20
21
10
24
25
25
23
17
9
22
21
18
18
8
17
7
14
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

-

2420-9528B

VALVE;CONTROL

SERIAL: 1288

1шт.

1

4-01-504

INLET BLOCK ASS'Y

desc: TIROIRS DE COMMANDE

1шт.

2

4-01-510

BLOCK ASS'Y;TRAVEL(L)

desc: BLOC

1шт.

3

4-01-518

BLOCK ASS'Y;ARM

desc: BLOC

1шт.

4

4-01-561

BLOCK ASS'Y;OPT

desc: BLOC

1шт.

5

4-01-510

BLOCK ASS'Y;TRAVEL(R)

desc: BLOC

1шт.

6

4-01-543

BLOCK ASS'Y;BUCKET

desc: BLOC

1шт.

7

4-01-548

BLOCK ASS'Y;BOOM

desc: BLOC

1шт.

8

4-01-559

INLET BLOCK ASS'Y

desc: TIROIRS DE COMMANDE

1шт.

9

4-01-515

BLOCK ASS'Y;BOOM SWING

desc: BLOC

1шт.

10

4-01-51082

BLOCK ASS'Y;DOZER

desc: BLOC

1шт.

11

4-01-51071

BLOCK ASS'Y;SWING

desc: BLOC

1шт.

12

4-01-506

INLET BLOCK ASS'Y

desc: TIROIRS DE COMMANDE

1шт.

13

2-20-624

BOLT;THROUGH

desc: BOULON

4шт.

14

S4010503

NUT

desc: ECROU

8шт.

15

4-02-500

MAIN RELIEF VALVE

desc: CLAPET DE VANNE

2шт.

16

S8000221

O-RING

desc: JOINT TORIQUE

2шт.

17

4-02-502

OVER LOAD RELIEF VALVE

desc: CLAPET DE VANNE

5шт.

18

S8000201

O-RING

desc: JOINT TORIQUE

6шт.

19

4-01-501

ANTI CAVITATION VALVE

desc: CLAPET DE VANNE

1шт.

20

4-02-902

MAIN RELIEF VALVE

desc: CLAPET DE VANNE

1шт.

21

S8010551

O-RING

desc: JOINT TORIQUE

11шт.

22

2-05-508

LOAD CHECK POPPET

desc: PLUNGEUR

6шт.

23

1-51-512

SPRING;LOAD CHECK

desc: RESSORT

6шт.

24

2-09-504

PLUG

desc: BOUCHON

9шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

10шт.
