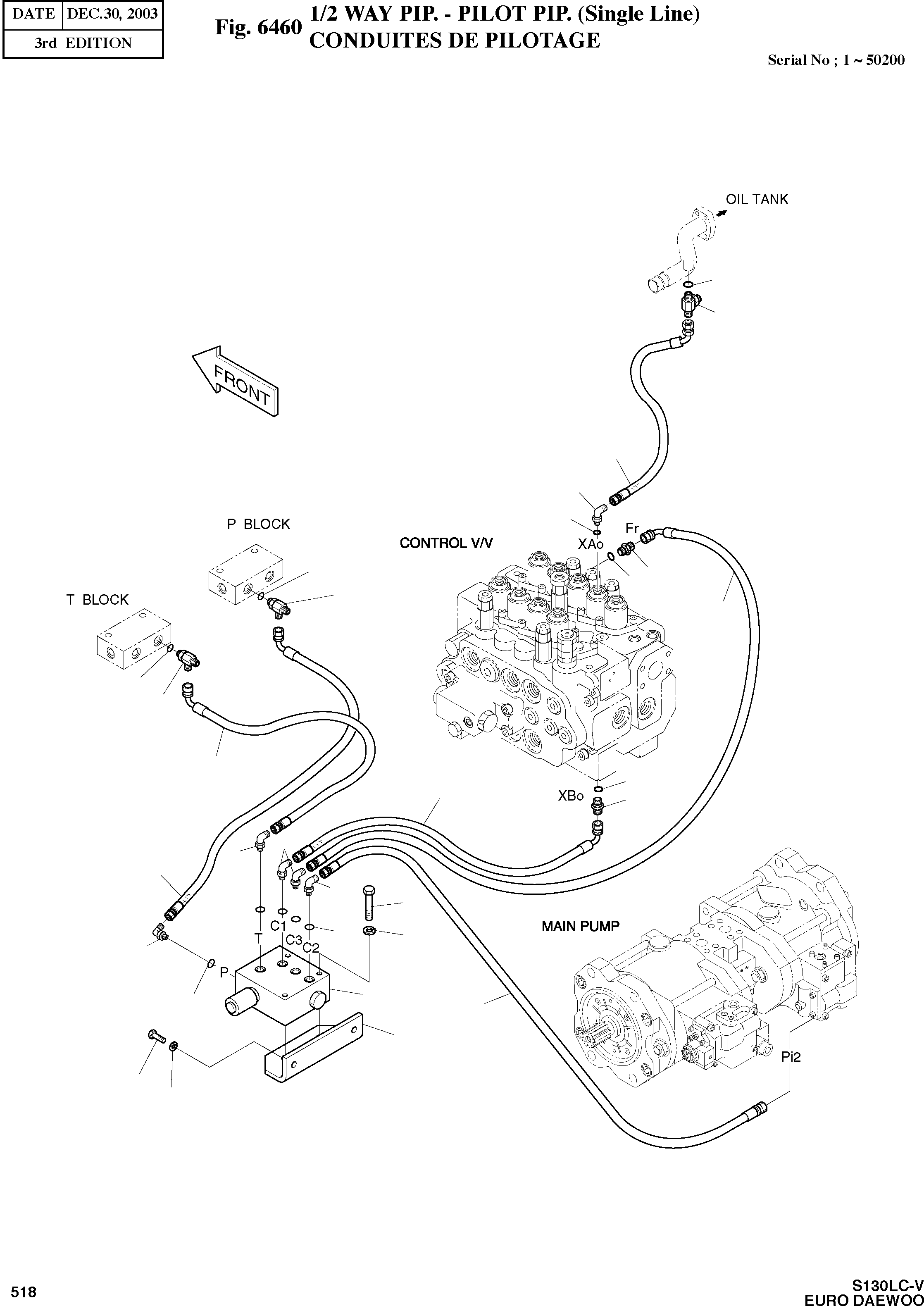

1/2 WAY PIP. - PILOT PIP. (SINGLE LINE)

Запчасти Doosan Daewoo 1/2 WAY PIP. - PILOT PIP. (SINGLE LINE) OPTION PARTS

18
10
17
19
12
12
6
11
9
13
12
9
14
12
16
7
8
8
13
8
3
11
5
8
1
11
15
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

-

601C1305

1/2 WAY PIP. - PILOT PIP. (Single Line)

SERIAL: 1-50200

-2шт.

1

2420-9227A

VALVE;PACKAGE

desc: VANNE

1шт.

2

891D1404

PLATE

desc: PLAQUE

1шт.

3

S05589963

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

4

S0512063

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

5

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWER

4шт.

6

181D1126D14

ADAPTER; PF(0)-PF1/4

desc: RACCORD

2шт.

7

181D1126D36

ADAPTER; PF(0) 3/8 - PF1/4

desc: RACCORD

1шт.

8

2181-1702D4

ELBOW PF(0)-PF1/4

desc: COUDE

5шт.

9

181D1951D6

TEE; PF(0)-PF1/4-PF3/8

desc: TE

2шт.

10

181D1951D19

TEE; PF(0)-PF1/2-PF3/8

desc: TE

1шт.

11

S8000111

O-RING

desc: JOINT TORIQUE

7шт.

12

S8000141

O-RING

desc: JOINT TORIQUE

4шт.

13

184D0036D175

HOSE

desc: TUYAU FLEXIBLE

2шт.

14

184D0036D185

HOSE

desc: TUYAU FLEXIBLE

1шт.

15

184D0035D235

HOSE

desc: TUYAU FLEXIBLE

1шт.

16

184D0036D110

HOSE

desc: TUYAU FLEXIBLE

1шт.

17

184D0036D33

HOSE

desc: TUYAU FLEXIBLE

1шт.

18

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

19

2181-1702D10

ELBOW; PF(0)3/8-PF1/4

desc: COUDE

1шт.
