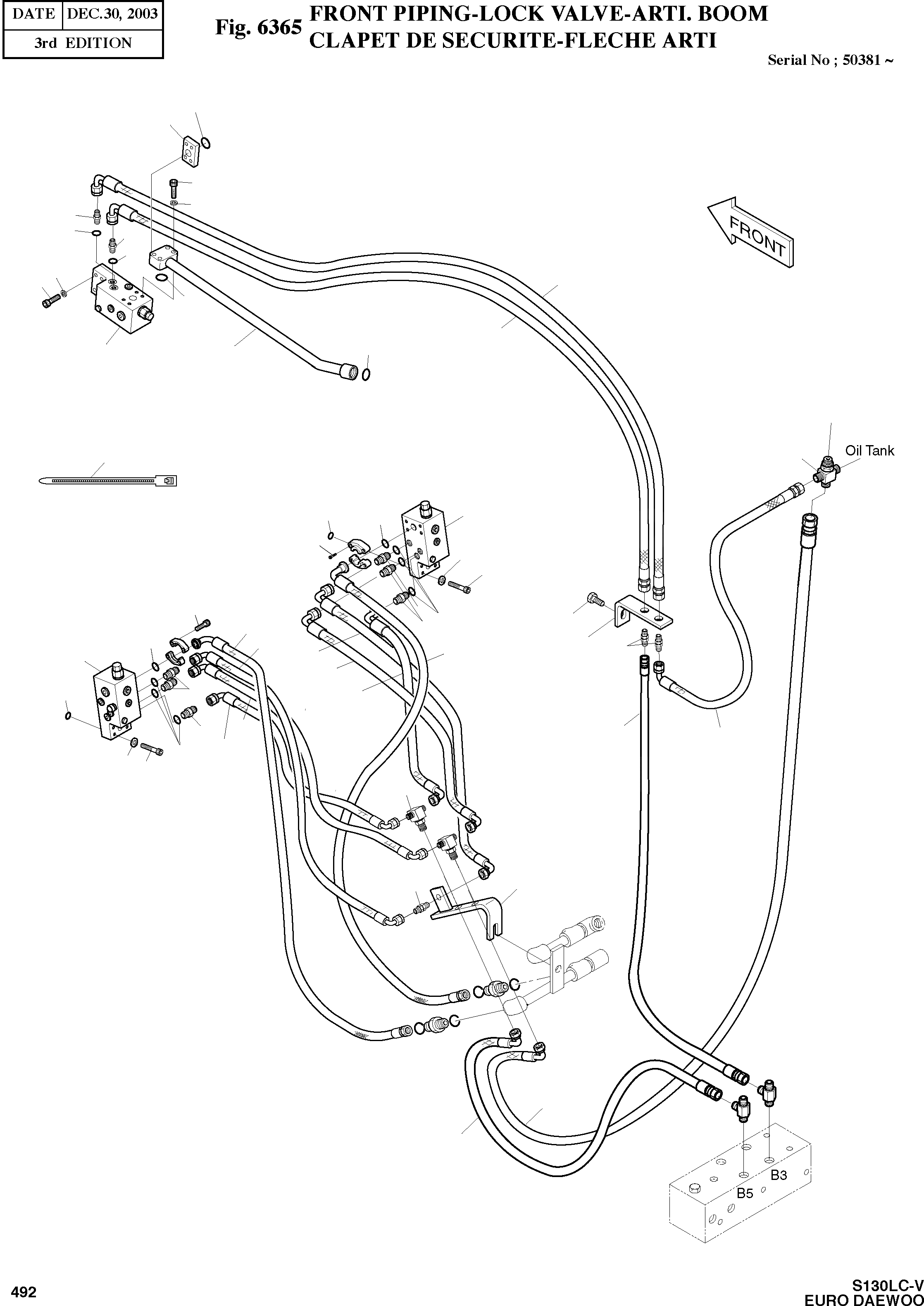

Запчасти Doosan Daewoo FRONT PIPING-LOCK VALVE-ARTI. BOOM OPTION PARTS

-

9400-1071

LOCK VALVE (ARTI.BOOM)

SERIAL: 50381

-2шт.

1

9420-6018A

LOCK VALVE (3/4")

desc: CLAPET DE SECURITE

1шт.

1A

9180-7025

SEAL KIT

desc: . CLAPET DE SECURITE

1шт.

2

2181-1126D14

ADAPTER

desc: RACCORD

8шт.

4

9210-1008D1

SANDWICH BLOCK

desc: BLOC

1шт.

5

S2212863

BOLT M10x60-DIN912

desc: BOULON A 6 PANS

4шт.

6

S5110613

WASHER;SPRING M10

desc: RONDELLE GROWER

16шт.

7

9183-1092

PIPE

desc: TUYAU

1шт.

8

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

9

S8030121

O-RING

desc: JOINT TORIQUE

1шт.

11

9195-1150

SUPPORT

desc: SUPPORT

1шт.

12

S0515363

BOLT M12x35-DIN912

desc: BOULON A 6 PANS

1шт.

13

9181-1033

BULKHEAD-UNION

desc: PASSE-CLOISON

2шт.

16

S2212663

BOLT M10x50-DIN912

desc: BOULON A 6 PANS

8шт.

17

9181-1034

BULKHEAD-TEE

desc: TE PASSE CLOISON

2шт.

18

9181-1037

DOUBLE-UNION

desc: RACCORD

1шт.

22

9184-1050D8

HOSE

desc: TUYAU FLEXIBLE

2шт.

23

9184-1050D10

HOSE

desc: TUYAU FLEXIBLE

2шт.

24

9184-1050D9

HOSE

desc: TUYAU FLEXIBLE

2шт.

25

9184-1012D56

HOSE

desc: TUYAU FLEXIBLE

2шт.

26

9184-1012D38

HOSE

desc: TUYAU FLEXIBLE

1шт.

27

9184-1022D20

HOSE

desc: TUYAU FLEXIBLE

1шт.

28

9184-1022D16

HOSE

desc: TUYAU FLEXIBLE

1шт.

29

9184-1012D36

HOSE

desc: TUYAU FLEXIBLE

1шт.

32

9181-1039

UNION CROSS;4XBSP

desc: RACCORD

1шт.

33

9195-1149

SUPPORT

desc: SUPPORT

1шт.

34

S2212463

BOLT M10X40

desc: BOULON A 6 PANS

4шт.

35

2124-1084D2

CLIP;BAND

desc: ATTACHE TUYAU

30шт.

36

9420-6022

LOCK VALVE

desc: TUYAU FLEXIBLE

2шт.

36A

9180-7029

SEAL KIT

desc: RACCORD

1шт.

37

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

38

S2209261

BOLT

desc: BOULON A 6 PANS

8шт.

39

2180-1026D30

O-RING

desc: JOINT TORIQUE

2шт.

40

9184-1053D2

HOSE

desc: TUYAU FLEXIBLE

2шт.
