/ / / / / MAIN PIPING FOR ARTI. BOOM
Запчасти Doosan Daewoo MAIN PIPING FOR ARTI. BOOM OPTION PARTS
19
20
21
19
25
20
7
23
21
24
25
8
1
23
9
2
6
24
2
25
25
13
13
1
25
25
25
4
23
3
22
24
26
22
26
2
1
5
1
25
4
25
13
12
15
25
23
24
25
24
23
25
14
25
16
26
-

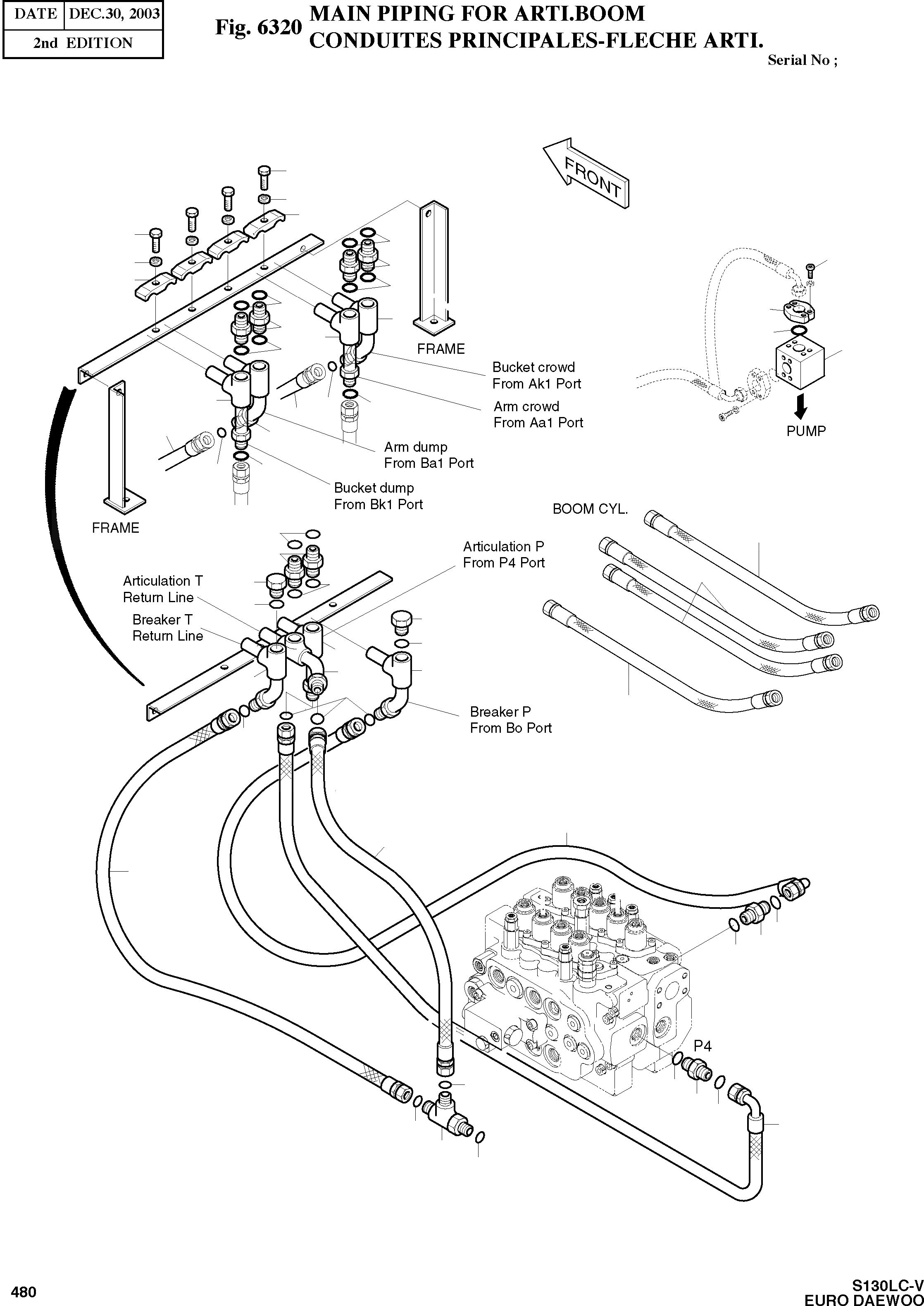

9400-1063
MAIN PIPING FOR ARTI.BOOM
SC: D
-2шт.
1
2183-3474
PIPE
desc: TUYAU
4шт.
2
2183-3470
PIPE
desc: TUYAU
3шт.
3
2184-1196D70
HOSE; 830L
desc: TUYAU FLEXIBLE
2шт.
4
2184-1196D71
HOSE; 870L
desc: TUYAU FLEXIBLE
2шт.
5
2183-3473
PIPE
desc: TUYAU
1шт.
6
2423-1489
BLOCK
desc: BLOC
1шт.
7
S2214061
BOLT M10x120
desc: BOULON A 6 PANS
4шт.
8
2181-9080
FLANGE;SPLIT 3/4
desc: FLASQUE EN DEUX
2шт.
9
2180-1026D2
O-RING
desc: JOINT TORIQUE
1шт.
12
2184-1196D69
HOSE-1050L
desc: TUYAU FLEXIBLE
1шт.
13
2184-1197D5
HOSE-1300L
desc: TUYAU FLEXIBLE
3шт.
14
2184-1200D23
HOSE-2350L
desc: TUYAU FLEXIBLE
1шт.
15
2184-1212D19
HOSE-1300L
desc: TUYAU FLEXIBLE
1шт.
16
2181-2293D1
TEE
desc: TE
1шт.
19
S0515253
BOLT M12x30
desc: BOULON A 6 PANS
4шт.
20
S5102703
WASHER;SPRING M12
desc: RONDELLE GROWER
4шт.
21
2124-1025D3
CLAMP;PIPE
desc: COLLIER
4шт.
22
2181-1950D5
PLUG; PF3/4
desc: BOUCHON
2шт.
23
2181-2627D1
ADAPTER
desc: RACCORD
7шт.
24
S8000231
O-RING
desc: JOINT TORIQUE
7шт.
25
S8030121
O-RING
desc: JOINT TORIQUE
17шт.
26
S8000241
O-RING
desc: JOINT TORIQUE
3шт.
