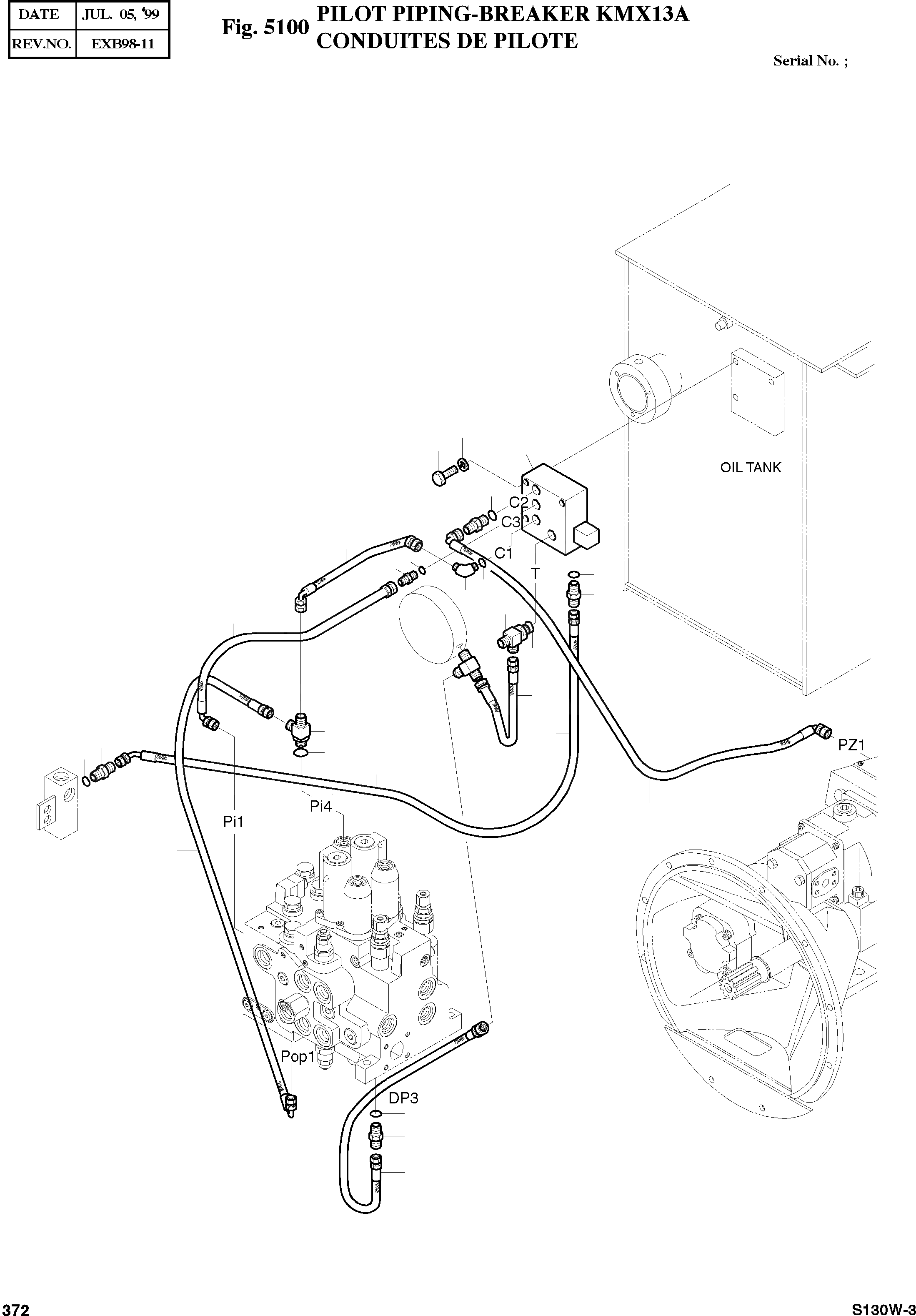

/ / / / / PILOT PIPING-BREAKER.KMX13A
Запчасти Doosan Daewoo PILOT PIPING-BREAKER.KMX13A OPTION PARTS
3
2
1
5
4
7
5
4
5
5
4
11
12
8
5
9
12
6
4
5
5
6
10
13
5
4
14
-
2400-1504
BREAKER PIPING
desc: COUPE-CIRCUIT
-2шт.
1
2420-9227A
VALVE;BREAKER
desc: VANNE
1шт.
2
S0558953
BOLT M10X1.5X70
desc: BOULON A 6 PANS
3шт.
3
S5102603
WASHER;SPRING M10
desc: RONDELLE ELASTIQUE
3шт.
4
2181-1126D14
ADAPTER 2PF1/4
desc: RACCORD ADAPTATEUR
5шт.
5
S8000111
O-RING P11
REP_PNO: 8202-009
8шт.
6
2184-1060D31
HOSE PF1/4-1700L
desc: TUYAU FLEXIBLE
1шт.
7
2184-1046D153
HOSE PF1/4-350L
desc: TUYAU FLEXIBLE
1шт.
8
2184-1046D81
HOSE PF1/4X650L
desc: TUYAU FLEXIBLE
1шт.
9
2184-1045D156
HOSE 1/4-350L
desc: TUYAU FLEXIBLE
1шт.
10
2184-1061D148
HOSE 1/4-1350L
desc: TUYAU FLEXIBLE
1шт.
11
2181-1702D4
ELBOW PFO1/2-PF1/2
desc: COUDE
1шт.
12
2181-1951D1
TEE PFO1/4-2PF1/4
desc: TE
2шт.
13
2184-1046D126
HOSE 1/4-450L
desc: TUYAU FLEXIBLE
1шт.
14
2184-1045D88
HOSE 1/4-680L
desc: TUYAU FLEXIBLE
1шт.
