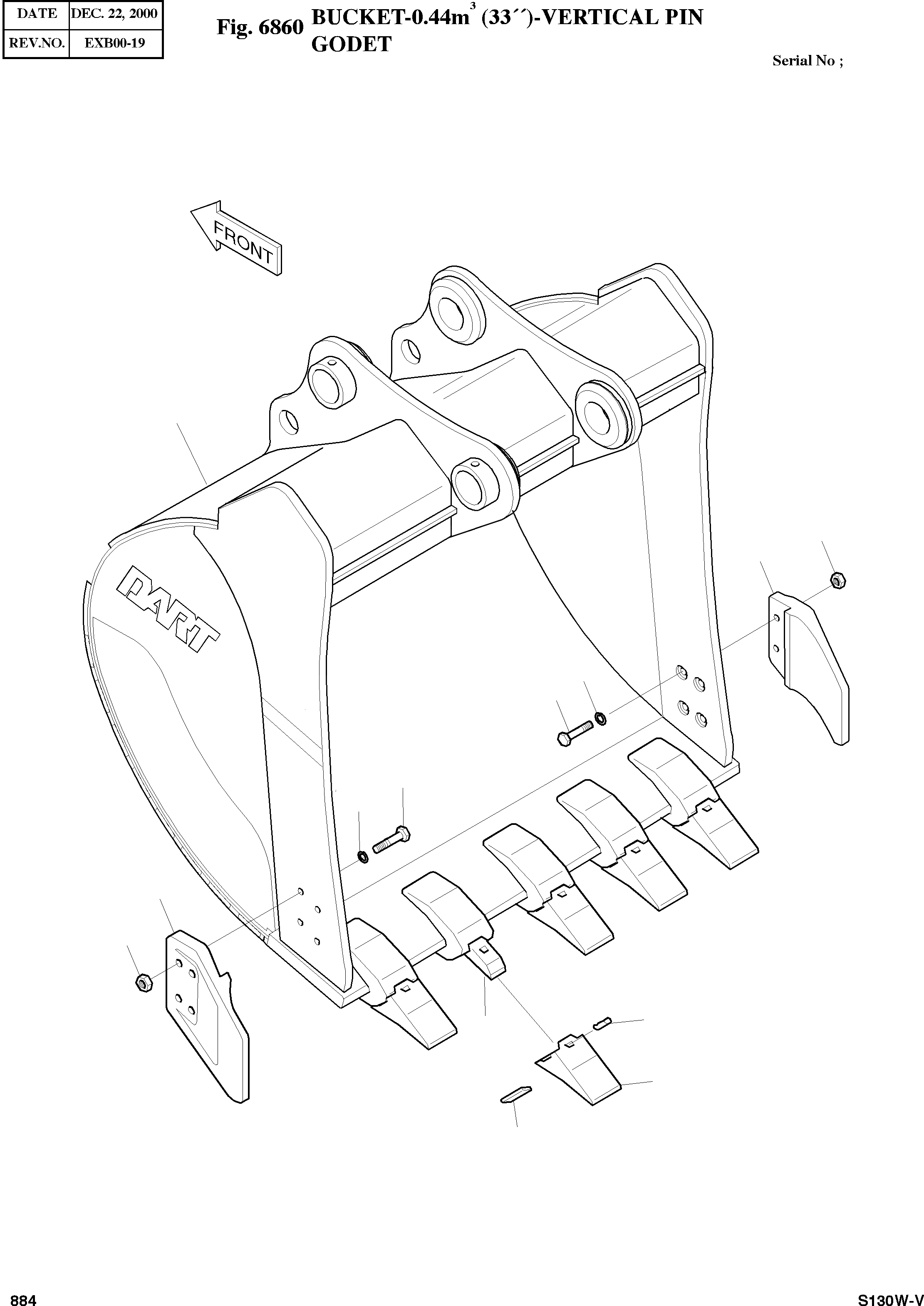

Запчасти Doosan Daewoo BUCKET-0.44§©(33")-VERTICAL PIN OPTION PARTS

-

2704-1669

BUCKET ASS'Y-0.44§©(H.D)

desc: GODET

1шт.

1

2704-1670

BUCKET SUB ASS'Y-0.44§©

desc: GODET

1шт.

1-1

2704-1671

BUCKET;WELD

desc: . GODET

1шт.

1-1A

2713-6074

ADAPTER;TOOTH

desc: .. DENT DE ADAPTEUR

5шт.

1-2

2713-9054

POINT;TOOTH

ICA: I

5шт.

1-2

2713-9059

POINT;TOOTH

desc: . DENT

5шт.

1-3

2705-9016

PIN;LOCKING

desc: . GOUPILLE DE BLOCAGE

5шт.

1-4

2705-9017

PIN;RUBBER

desc: . GOUPILLE

5шт.

2

2713-1228

CUTTER;SIDE(R.H)

SERIAL: 1-73

1шт.

2

2713-1228A

CUTTER;SIDE(R.H)

SERIAL: 74

1шт.

3

2713-1229

CUTTER;SIDE(L.H)

SERIAL: 1-73

1шт.

3

2713-1229A

CUTTER;SIDE(L.H)

SERIAL: 74

1шт.

4

S0570061

BOLT M20X2.5X60

SERIAL: 1-73

8шт.

4

S0574561

BOLT M24X3.0X60

SERIAL: 74

8шт.

5

S4013133

NUT M20X2.5

SERIAL: 1-73

8шт.

5

S4013333

NUT M24X3.0

SERIAL: 74

8шт.

6

2114-9012

WASHER;HARDEN

SERIAL: 1-73

8шт.

6

2114-1831

WASHER;HARDEN

SERIAL: 74

8шт.
