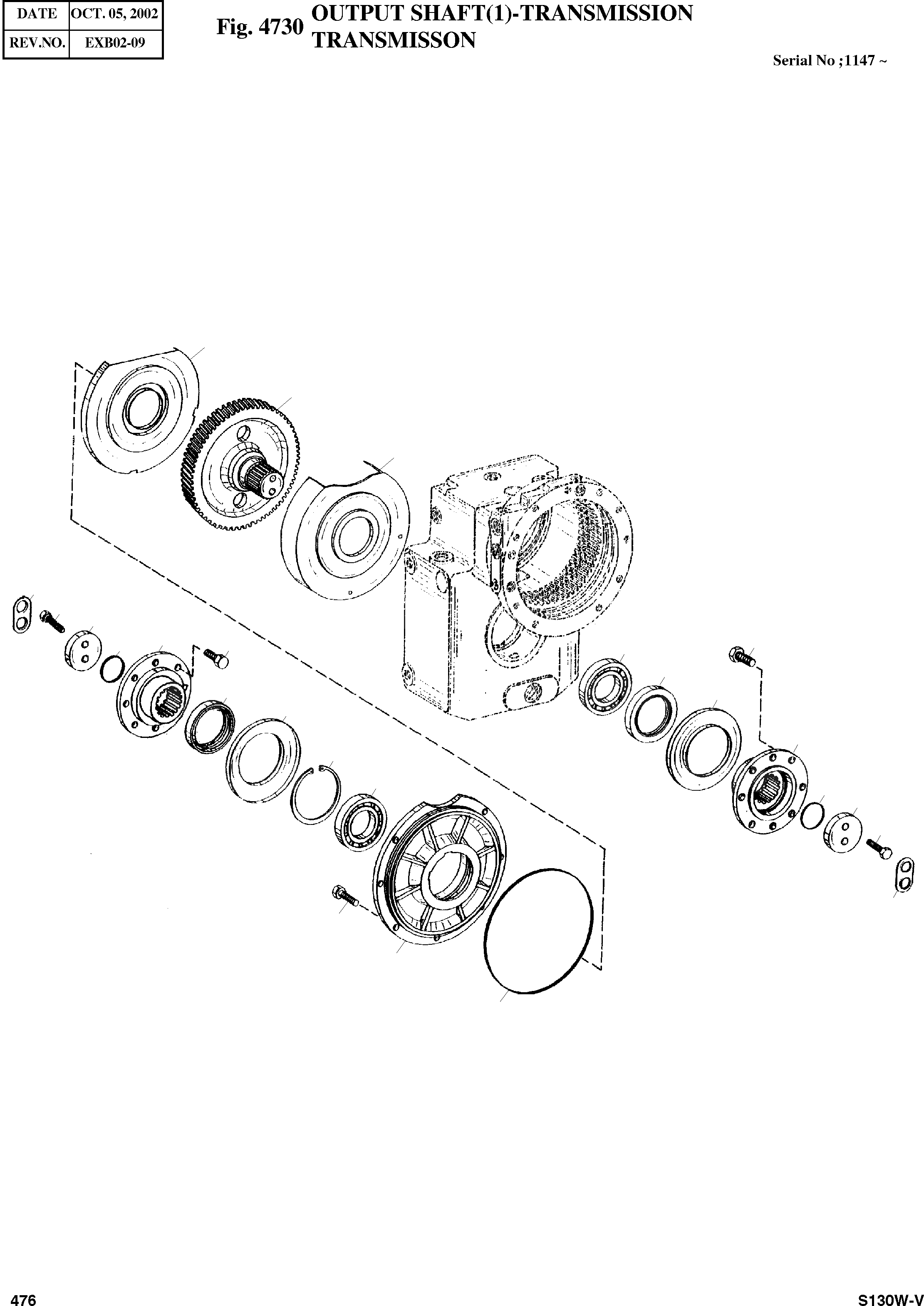

/ / / / / OUTPUT SHAFT(1)-TRANSMISSION
Запчасти Doosan Daewoo OUTPUT SHAFT(1)-TRANSMISSION HYDRAULIC PARTS
20
210
10
140
130
120
90
100
100
110
60
70
70
80
80
90
64
60
110
120
130
140
50
30
40
10
4143 303 020
SHEET;SCREEN
desc: TOLE DE PROT.
1шт.
20
4143 303 005
DEFLECTOR;OIL
desc: DEFLECT. HUILE
1шт.
30
4143 303 006
COVER
desc: COUVERCLE
1шт.
40
0634 303 134
O-RING
desc: JOINT TORIQUE
1шт.
50
0636 016 011
SCREW;HEXAGON
desc: VIS HEXAGONALE
7шт.
60
0750 116 254
BEARING;BALL
desc: ROULEM. A BILLES
2шт.
64
0630 502 047
RING;RETAINING
desc: JONC D'ARRET
1шт.
70
0750 111 409
SEAL;SHAFT
desc: BAGUE ETANCH.
2шт.
80
4143 303 048
PLATE;DEFLECTOR
desc: DEFLECTEUR
2шт.
90
4143 303 021
FLANGE;OUTPUT
desc: BRIDE DE SORTIE
2шт.
100
0636 021 158
SCREW;HEXAGON
desc: VIS HEXAGONALE
16шт.
110
0634 313 092
O-RING
desc: JOINT TORIQUE
2шт.
120
4112 303 216
WASHER
desc: RONDELLE
2шт.
130
0636 015 130
SCREW;HEXAGON
desc: VIS HEXAGONALE
4шт.
140
1269 302 164
WASHER;TAB
desc: TOLE-FREIN
2шт.
210
4143 303 026
GEAR;HELICAL Z=57
desc: PIGN. DENT. HELIC
1шт.
