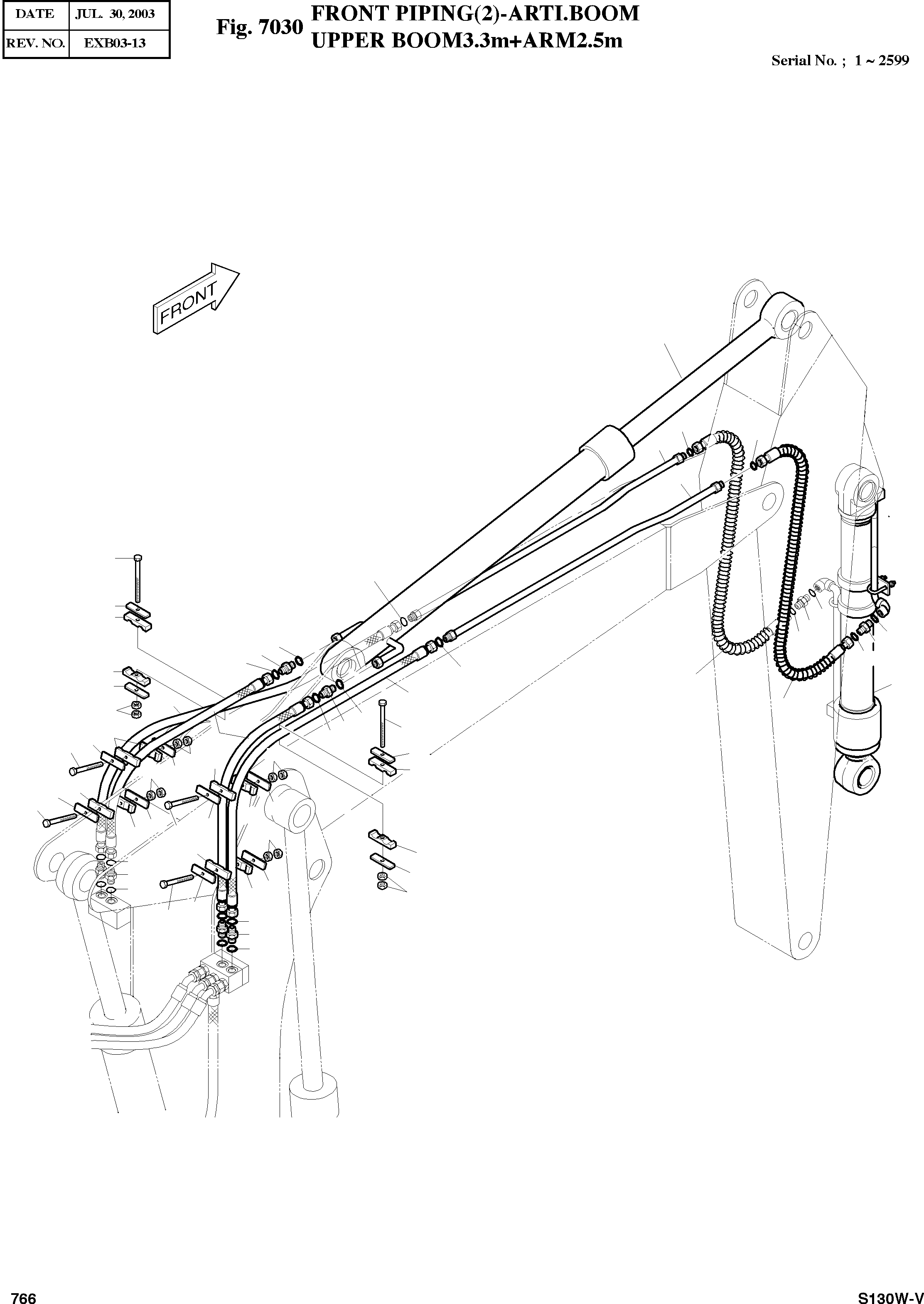

/ / / / / FRONT PIPING(2)-ARTI. BOOM
Запчасти Doosan Daewoo FRONT PIPING(2)-ARTI. BOOM OPTION PARTS
14
11
1
46
55
64
64
1
13
64
45
11
65
46
65
41
64
50
64
64
64
11
56
49
45
8
8
49
14
41
50
13
11
45
64
57
13
45
14
11
14
45
11
45
13
45
11
45
45
13
14
11
11
11
64
45
50
45
41
11
14
45
64
13
50
41
-
400-00579
FRONT PIPING
SERIAL: 1-2599
-2шт.
1
2183-3427
PIPE
desc: TUYAU
2шт.
8
2184-1196D164
HOSE PF3/4-2650L
desc: TUYAU ADAPTATEUR
2шт.
11
2124-1226
CLAMP;RUBBER
desc: COLLIER
12шт.
13
S0559553
BOLT M10X1.5X100
desc: BOULON A 6 PANS
6шт.
14
S4012633
NUT M10X1.5
desc: ECROU
12шт.
41
S8000241
O-RING P24
desc: JOINT TORIQUE
6шт.
45
2191-4291
PLATE
desc: PLAQUE
12шт.
46
2181-2627D1
ADAPTER UNF1 3/16-PF3/4
desc: ROCCORD ADAPTATEUR
2шт.
49
2184-1196D57
HOSE 1600L
desc: TUYAU FLEXIBLE
2шт.
50
2181-4133D5
ADAPTER UNF1 3/16-PF3/4
desc: ROCCORD ADAPTATEUR
6шт.
55
440-00111
CYLINDER;ARM
desc: VERIN DE BALANCIER
1шт.
56
2440-9233B
CYLINDER;BUCKET
desc: CERIN DE GODET
1шт.
57
2184-1196D11
HOSE;ARM CYL. 2150L
desc: TUYAU FLEXIBLE
2шт.
64
S8030121
O-RING UNF1 3/16
desc: JOINT TORIQUE
12шт.
65
S8000231
O-RING P22.4
desc: JOINT TORIQUE
2шт.
