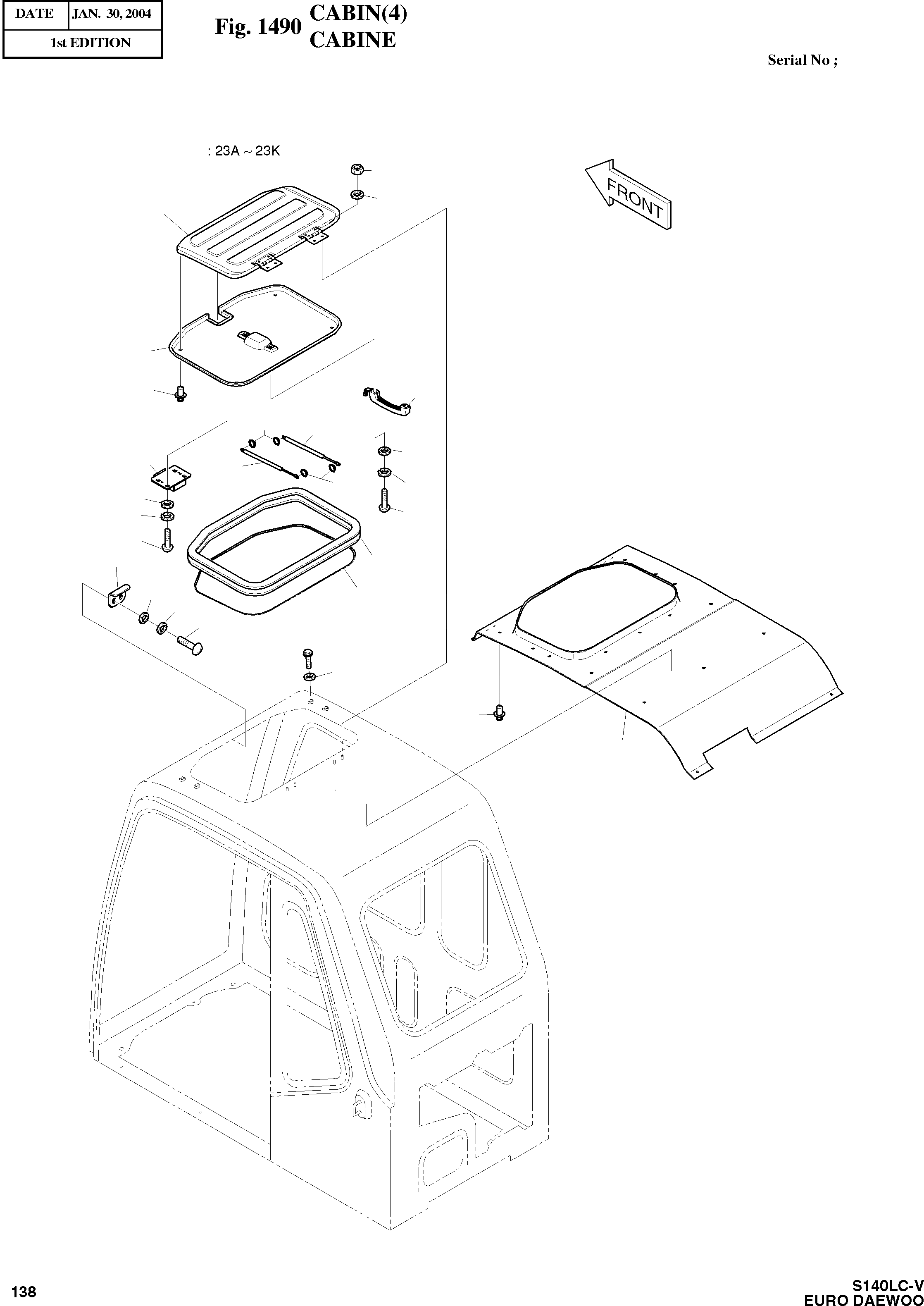

Запчасти Doosan Daewoo CABIN(4) BODY PARTS

-

622-00177L

CABIN ASS'Y

SC: D

1шт.

17

162-00026

STRIP;WEATHER 2000L

desc: TAMPON

1шт.

23

621-01667

ROOF COVER ASS'Y

desc: COUVERCLE

1шт.

23A

621-01668

COVER;ROOF

desc: . COUVERCLE

1шт.

23B

161-00326

PAD;ROOF COVER

desc: . CAOUTCHOUC

1шт.

23C

2125-9057

CATCH;ROOF COVER

desc: . LOQUET

1шт.

23D

2172-1112

HANDLE;PULL

desc: . POIGNER

1шт.

23E

S5100203

WASHER;SPRING M5

desc: . RONDELLE ELASTIQUE

4шт.

23F

S3450833

SCREW M5X0.8X12

desc: . VIS

4шт.

23G

S5000213

WASHER;PLAIN M5

desc: . RONDELLE PLATE

4шт.

23H

S3450993

SCREW M6X1.0X25

desc: . VIS

2шт.

23I

S5010313

WASHER;PLAIN M6

desc: . RONDELLE PLATE

2шт.

23J

S5102303

WASHER;SPRING M6

desc: . RONDELLE ELASTIQUE

2шт.

23K

2120-2174

SCRIVET

desc: . RIVET

4шт.

24

S4012533

NUT M8

desc: ECROU

4шт.

25

S5010513

WASHER M8

desc: RONDELLE

4шт.

29

S3450973

SCREW M6X1.0X16

desc: VIS

2шт.

30

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

2шт.

31

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

36

2120-2166D4

BOLT M10X1.5X20

desc: BOULON A 6 PANS

4шт.

55

161-00323

PAD;ROOF

desc: CAOUTCHOUC

1шт.

74

2142-1122A

STRIKER

desc: FRAPPER

1шт.

75

2440-9251

SPRING;GAS

desc: RESSORT

2шт.

76

S6540600

RING;RETAINING

desc: BAGUE

4шт.

99

2114-1058D45

WASHER M10

desc: RONDELLE

4шт.

101

2120-2174

SCRIVET

desc: RIVET

14шт.

115

161-00486

FINISHER

desc: FINISHER

1шт.
