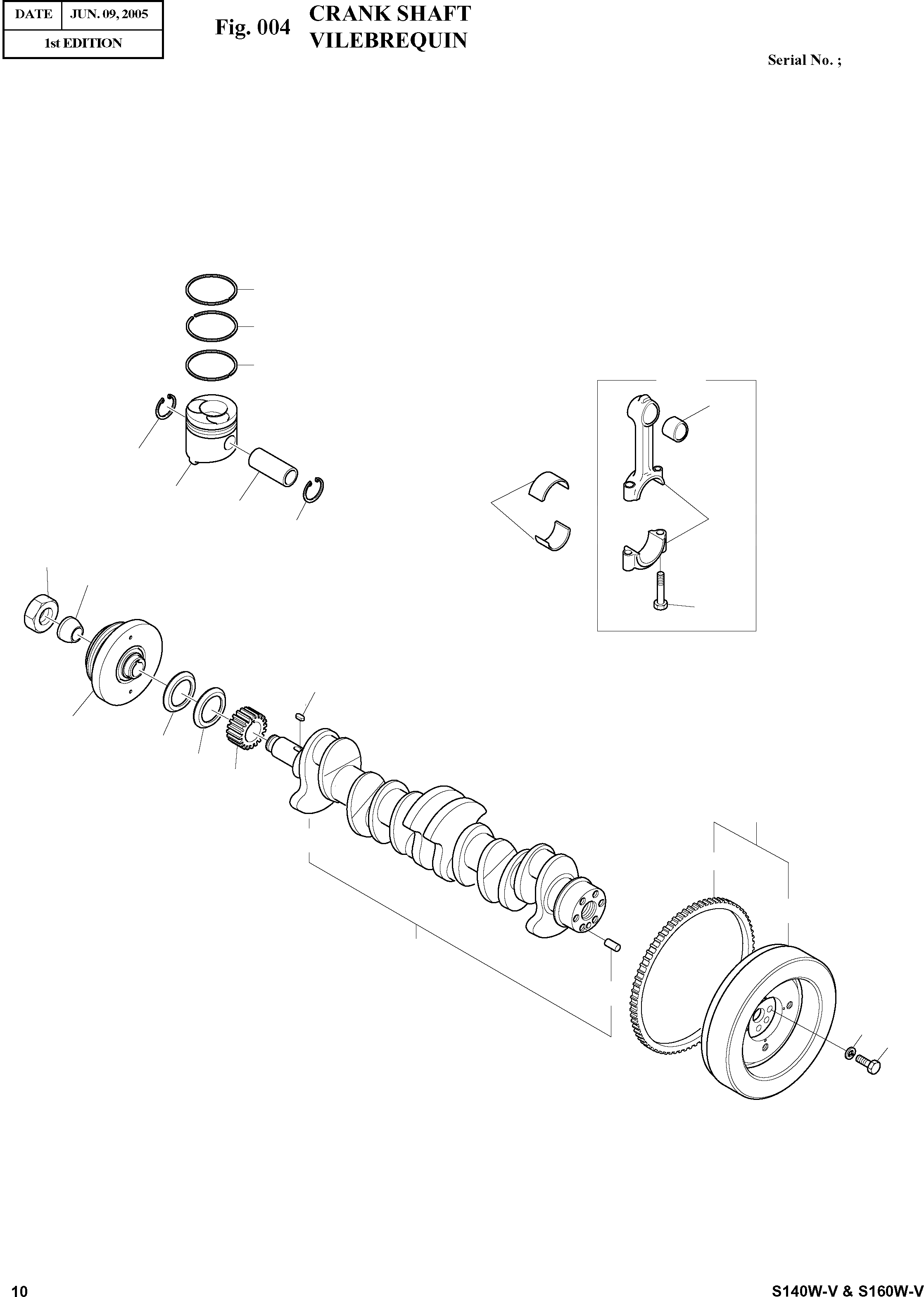

Запчасти Doosan Daewoo CRANK SHAFT ENGINE PARTS

101

65.02101-6018A

CRANK SHAFT ASS'Y

desc: ENSEMBLE VILEBREQUIN

1шт.

103

65.02101-0045A

SHAFT;CRANK

desc: . VILEBREGUIN

1шт.

105

06.22022-3212

PIN;PARALLEL

desc: . GOUPILLE

1шт.

104

65.02115-0009

GEAR;CRANK SHAFT

desc: PIGNON DE VILEBREQUIN

1шт.

106

65.93020-0015

BUSH;TAPER

desc: DOUILLE

1шт.

108

65.02120-0002

RING;OIL THROWER

desc: BAGUE

1шт.

109

65.90501-0006

NUT

desc: ECROU

1шт.

110

65.91501-0006

KEY;SLIDING

desc: CLEF

1шт.

201

65.02301-5099A

FLYWHEEL ASS'Y

desc: VOLANT

1шт.

202

65.02310-0006

GEAR;STARTING RING

desc: . ENGRENAGE

1шт.

204

65.02301-0245A

FLY WHEEL

desc: . VOLANT

1шт.

207

06.01494-4506

BOLT M16X1.5X35

desc: BOULON A 6 PANS

6шт.

208

06.16731-2111

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

301

65.02401-6021

CONNECTING ROD ASS'Y

desc: BIELLE

6шт.

305

65.02411-0006A

BOLT

desc: . BOULON A 6 PANS

2шт.

308

65.02401-0163D

ROD;CONNECTING

SC: D

1шт.

309

65.02405-0006

BUSH

SC: B

1шт.

306

65.02410-6083

METAL;CON-ROD STD

desc: PALIER

6шт.

401

65.02501-0410

PISTON(ALTV.)

SERIAL: 020913

6шт.

401

65.02501-0416

PISTON(ALTV.)

SERIAL: 020914

6шт.

402

65.02501-0411

PISTON;A GRADE

SERIAL: 020913

6шт.

402

65.02501-0417

PISTON;A GRADE

SERIAL: 020914

6шт.

403

65.02501-0412

PISTON;B GRADE

SERIAL: 020913

6шт.

403

65.02501-0418

PISTON;B GRADE

SERIAL: 020914

6шт.

404

65.02503-0099

RING;TOP

desc: SEGMENT COUP DE FEU

6шт.

405

65.02503-0116

RING;SECOND

desc: SEGMENT DE COMPRESSION

6шт.

406

65.02503-0114

RING;OIL

desc: BAGUE

6шт.

412

65.02502-0082A

PIN;PISTON

desc: AXE DE PISTON

6шт.

413

65.90815-0007

RING;RETAINING

desc: BAGUE

12шт.

501

65.02601-5024

PULLEY;DAMPER

desc: POULIE

1шт.

503

65.02122-0001

COVER;DUST

desc: PARE-POUSSIERES

1шт.
