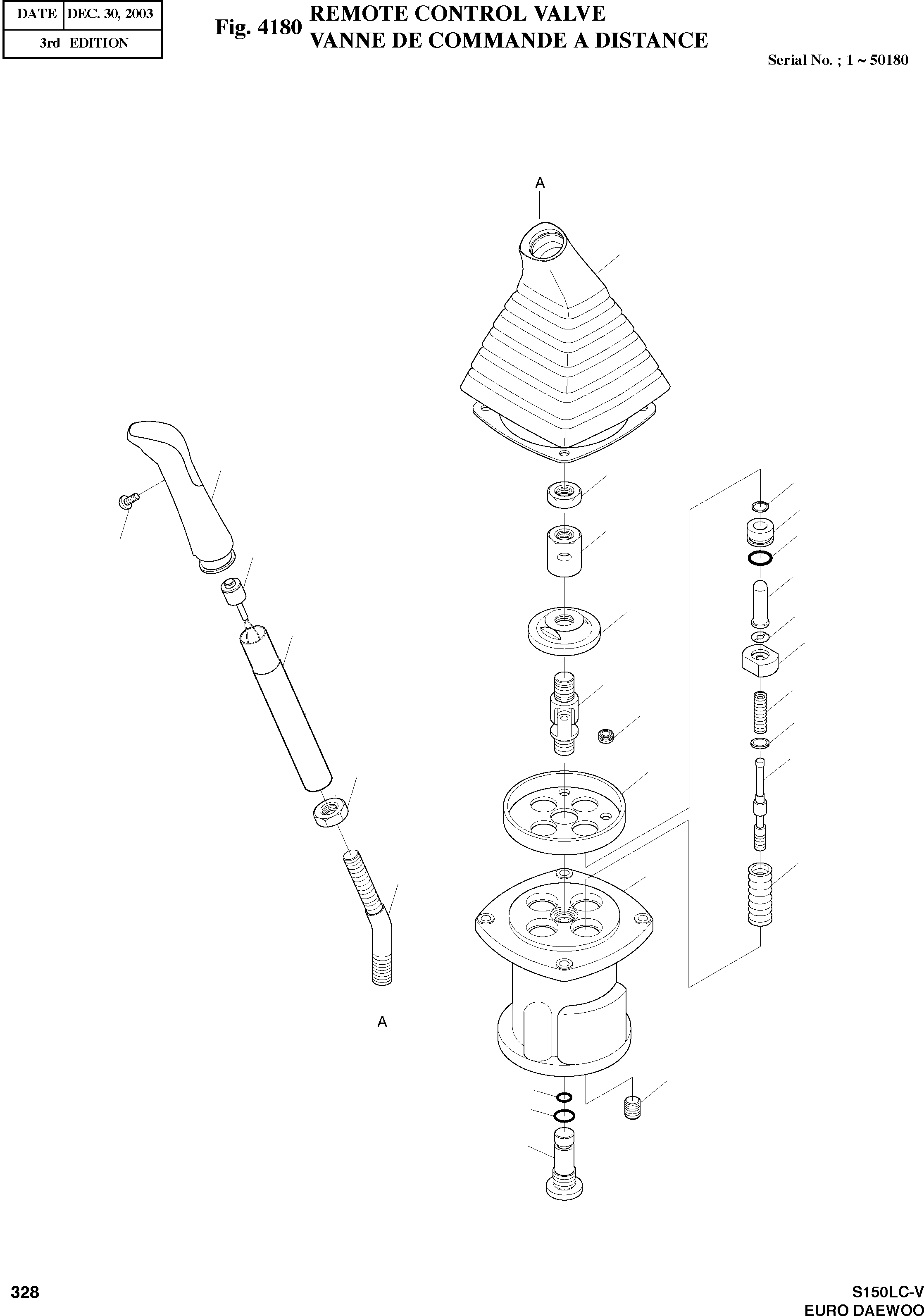

Запчасти Doosan Daewoo REMOTE CONTROL VALVE PILOT PIPING(4)

-

2420-9516

REMOTE CONTROL V/V(LH)

SERIAL: 1-50180

1шт.

-

2420-9517

REMOTE CONTROL V/V(RH)

SERIAL: 1-50180

1шт.

1

J95C1001

CASE

desc: CARTER

1шт.

2

WPT18

PLUG PT1/8

REP_PNO: S6500350

4шт.

3

J95C1002

PLUG PT3/8

desc: BOUCHON

1шт.

4

P0014

O-RING P14

desc: JOINT TORIQUE

1шт.

5

J95C1003

SPOOL

desc: BOBINE

4шт.

6

J95C1004

SHIM

REP_PNO: 215818

2шт.

7

J96E2002

SPRING

REP_PNO: 108165

4шт.

8

J95C1006

SEAT;SPRING

REP_PNO: 112589

4шт.

9

J24D2011

STOPPER

REP_PNO: 112590

4шт.

10

J95C1007

SPRING

REP_PNO: 112591

4шт.

11

J95C1008

PLUG

REP_PNO: 211672

4шт.

12

RSY10

SEAL;ROD

REP_PNO: 210466

4шт.

13

P0020

O-RING

desc: JOINT TORIQUE

4шт.

14

J95C1009

ROD;PUSH

desc: TIGE DE POUSSOIR

4шт.

15

J95C1010

PLATE

desc: PLAQUE

1шт.

16

J95C1011

BUSHING

desc: DOUILLE

1шт.

17

J95C1012

JOINT ASS'Y

desc: ENSEMBLE DE JOINT

1шт.

18

J95C1013

PLATE;SWASH

desc: PLAQUE

1шт.

19

J95C1014

NUT

desc: ECROU

1шт.

20

HNM14-1

NUT

desc: ECROU

1шт.

21

P0010A

O-RING

desc: JOINT TORIQUE

1шт.

22

J97A1001

HANDLE;BAR

desc: RACCORD

1шт.

23

J97A1003

BOOT(L.H.)

desc: GAINE DE PROTECTION

1шт.

23

J97A1002

BOOT(R.H.)

desc: GAINE DE PROTECTION

1шт.

24

HNM12-1

NUT M12X1.25

desc: ECROU

1шт.

25

J97A1004

SWITCH ASS'Y

desc: INTERRUPTEUR

1шт.

26

J97A1005

JOTSTICK SUB ASS'Y

desc: HANDLE ASS'Y

1шт.

26-1

2133-2023

INSERT A

SC: D

1шт.

26-2

S3664153

SCREW;TAPPING M3

SC: D

1шт.
