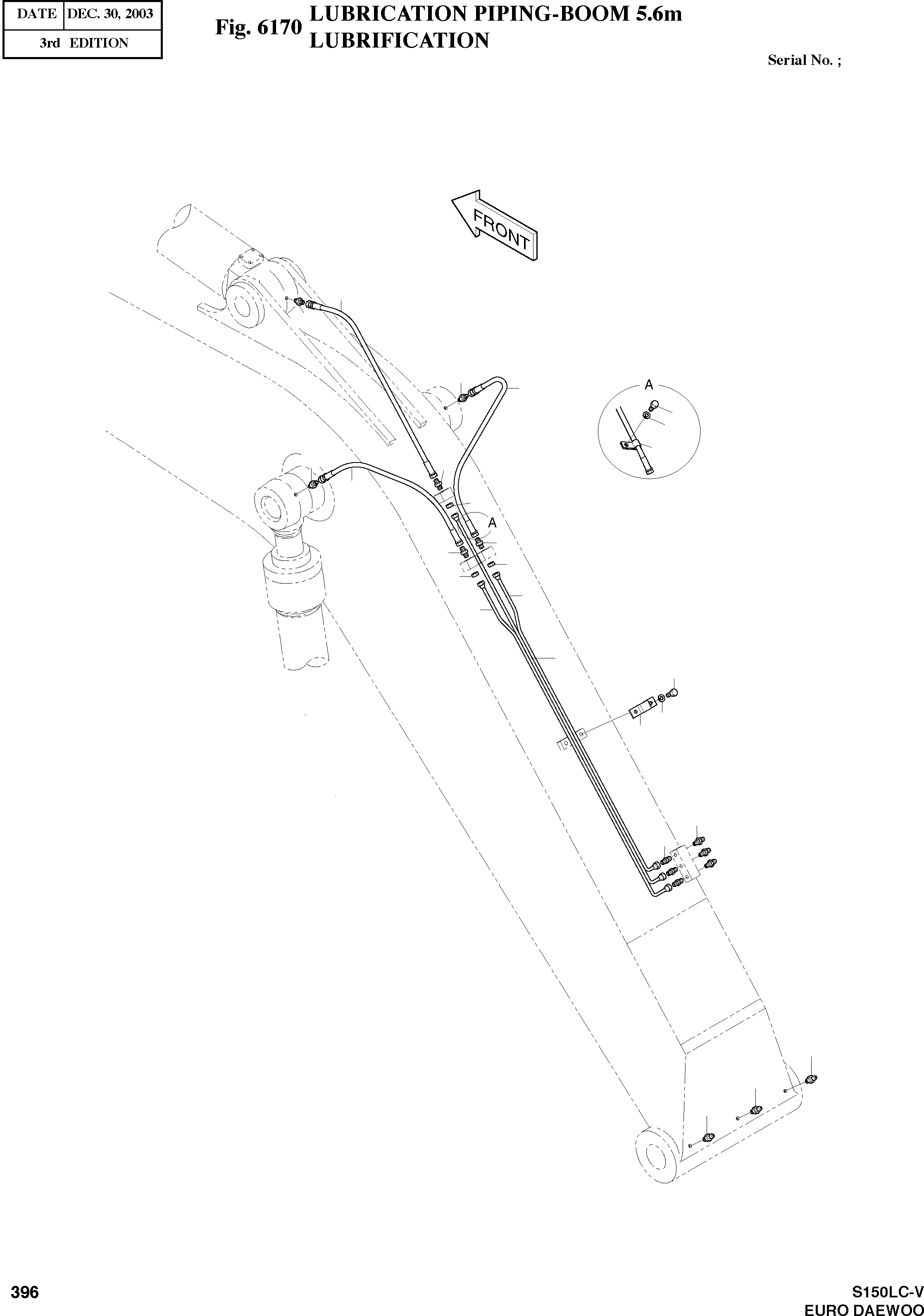

/ / / / / LUBRICATION PIPING-BOOM 5.6M
Запчасти Doosan Daewoo LUBRICATION PIPING-BOOM 5.6M OPTION PARTS
9
14
14
8
11
6
7
15
14
8
16
15
16
16
5
3
4
11
6
10
1
2
12
12
12
15
-
400-00169
PIPING;FRONT LUBRICATOR
ICA: D
-2шт.
1
S6710052
FITTING;PIPE
desc: GRAISSEUR
3шт.
2
2181-1184
ADAPTER-PT1/4-M14X1.5
desc: RACCORD
3шт.
3
2182-1581A
PIPE
desc: TUYAU
1шт.
4
182-00006
PIPE
desc: TUYAU
1шт.
5
2182-1583A
PIPE
desc: TUYAU
1шт.
6
S5102603
WASHER;SPRING M10
desc: RONDELLE GROWER
3шт.
7
2124-1353D1
CLIP;BAND
desc: BANDE
2шт.
8
2184-1045D89
HOSE-780L
desc: TUYAU FLEXIBLE
2шт.
9
2184-1045D201
HOSE-1100L
desc: TUYAU FLEXIBLE
1шт.
10
2124-1625
CLAMP;PIPE
desc: ATTACHE DE TUYAU
1шт.
11
S0511553
BOLT M10X1.5X14
desc: BOULON A 6 PANS
3шт.
12
S6710152
NIPPLE;GREASE
desc: GRAISSEUR
3шт.
14
2181-1110D30
ADAPTER PF1/4-PT1/8
desc: RACCORD
3шт.
15
2181-1923D12
ADAPTER M14X1.5-PF1/4
desc: RACCORD
3шт.
16
S4032833
NUT;M14X1.5
desc: ECROU;M14X1.5
3шт.
