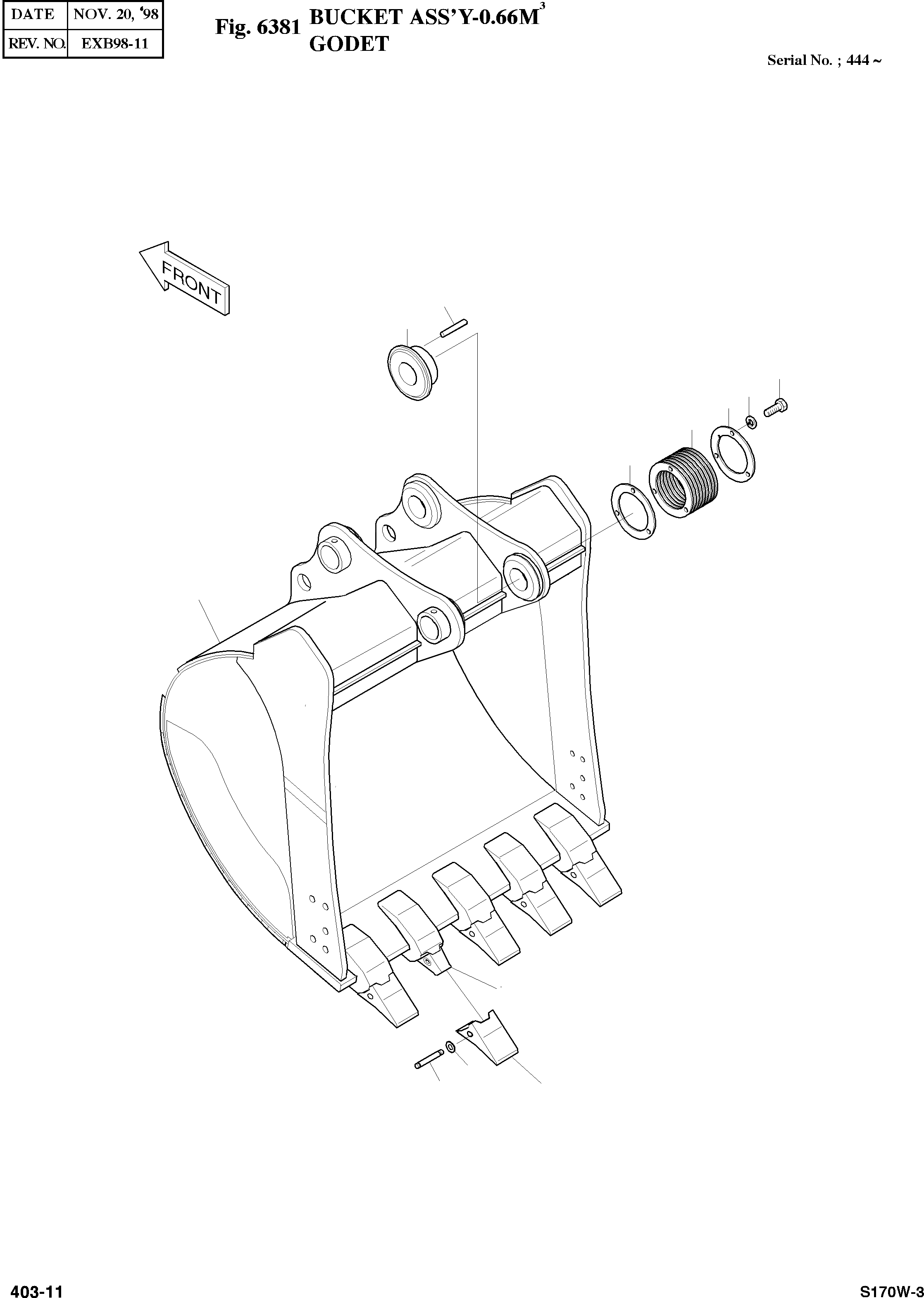

Запчасти Doosan Daewoo BUCKET ASSY-0.66M©ш OPTION PARTS
4
2
1A
1C
1D
1B
1AA
5
6
3
7
8
-
2704-1620
BUCKET SUB ASS'Y-0.66§©
SERIAL: 444
1шт.
1
2704-1621
BUCKET SUB ASS'Y-0.66§©
desc: GODET
1шт.
1A
2704-1622
BUCKET-0.66§©
SC: D
1шт.
1AA
2713-1218
ADAPTER;TOOTH
desc: .. RACCORD
5шт.
1B
2713-1269
POINT;TOOTH
desc: . DENT
5шт.
1C
2705-1020
PIN;LOCKING
desc: . BROCHE DE BLOCAGE
5шт.
1D
2114-1848A
WASHER;LOCK
desc: . RONDELLE D'ARRET
5шт.
2
2114-1378
SPACER
desc: BAGUE D'ECARTEMENT
1шт.
3
2191-1771
PLATE
desc: PLAQUE
1шт.
4
2123-1107D2
PIN;DOWEL
desc: GOUPILLE
1шт.
5
S0521661
BOLT M16X2.0X50
desc: BOULON A 6 PANS
3шт.
6
S5102903
WASHER;SPRING M16
desc: RONDELLE ELASTIQUE
3шт.
7
2114-1360
SHIM
desc: CALE
9шт.
8
2114-1361
SHIM
desc: CALE
1шт.
