/ / / / / FRONT PIPING-PE3C-ARTI.BOOM
Запчасти Doosan Daewoo FRONT PIPING-PE3C-ARTI.BOOM OPTION PARTS
8
11
11
2
2
11
11
1
1
11
3
10
14
7
9
4
11
3
14
8
10
10
3
4
10
11
9
5
7
10
5
10
3
11
13
6
13
6
12
-
K1008320

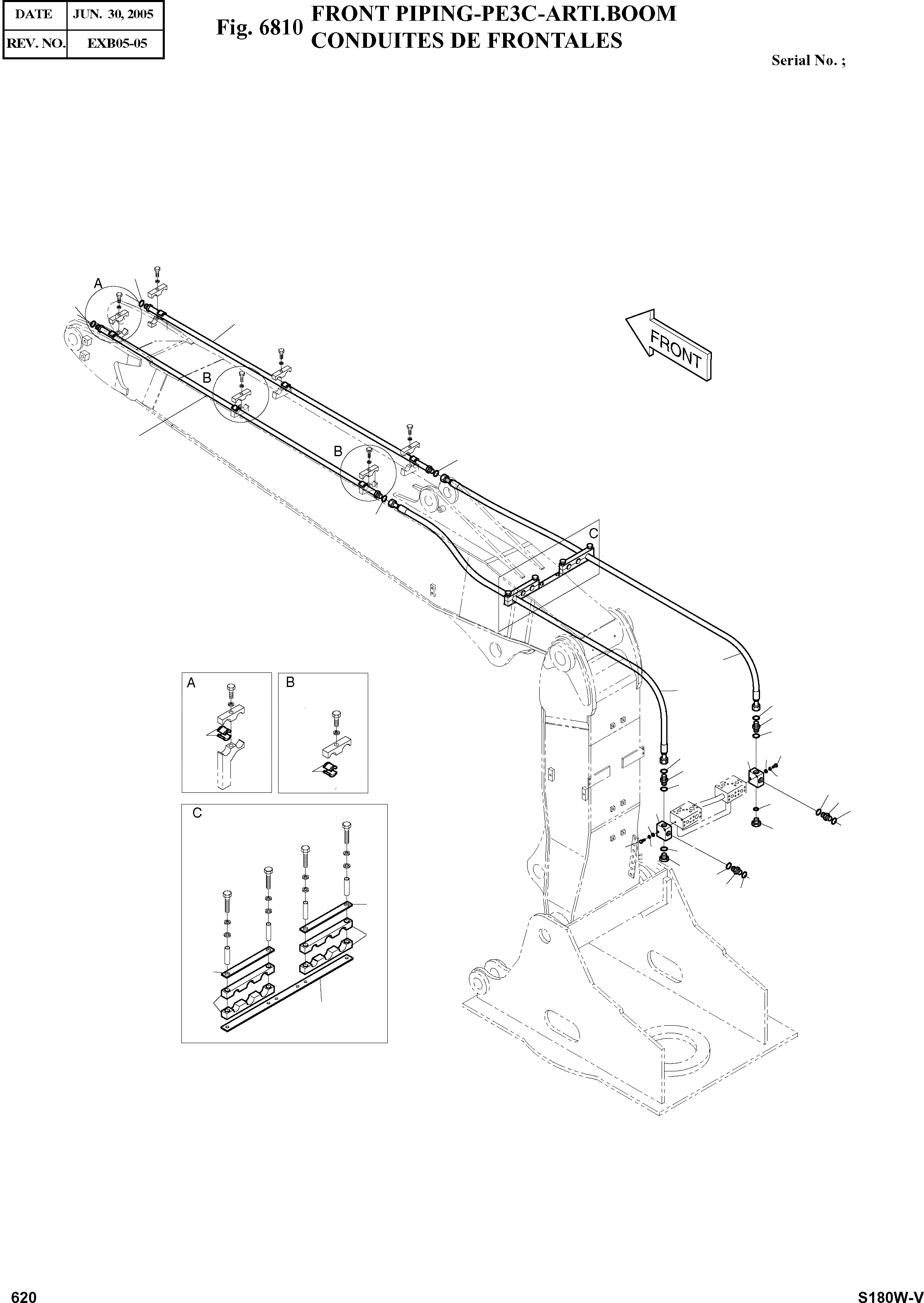

FRONT PIPING
SC: D
-2шт.
1
DS2011280
HOSE PF1-2700L
desc: TUYAU FLEXIBLE
2шт.
2
140-00751
PIPE
desc: TUYAU
2шт.
3
2181-4133D6
ADAPTER PFO1-UNF1 7/16
desc: ADAPTEUR
4шт.
4
423-00090
BLOCK
desc: BLOC
2шт.
5
2181-1950D9
PLUG
desc: BOUCHON
2шт.
6
124-00034
CLAMP;RUBBER
desc: ATTACHE DE TUBE
8шт.
7
S0559353
BOLT M10X1.5X90
desc: BOULON
4шт.
8
S5102603
WASHER;SPRING M10
desc: RONDELLE ELASTIQUE
4шт.
9
S5010613
WASHER;PLAIN M10
desc: RONDELLE PLATE
4шт.
10
S8000291
O-RING
desc: JOINT TORIQUE
6шт.
11
S8030161
O-RING
desc: JOINT TORIQUE
8шт.
12
621-00503
PLATE
desc: PLAQUE
2шт.
13
621-00504
PLATE
desc: PLAQUE
4шт.
14
2161-2251A
RUBBER
desc: CAOUTCHOUC
12шт.
