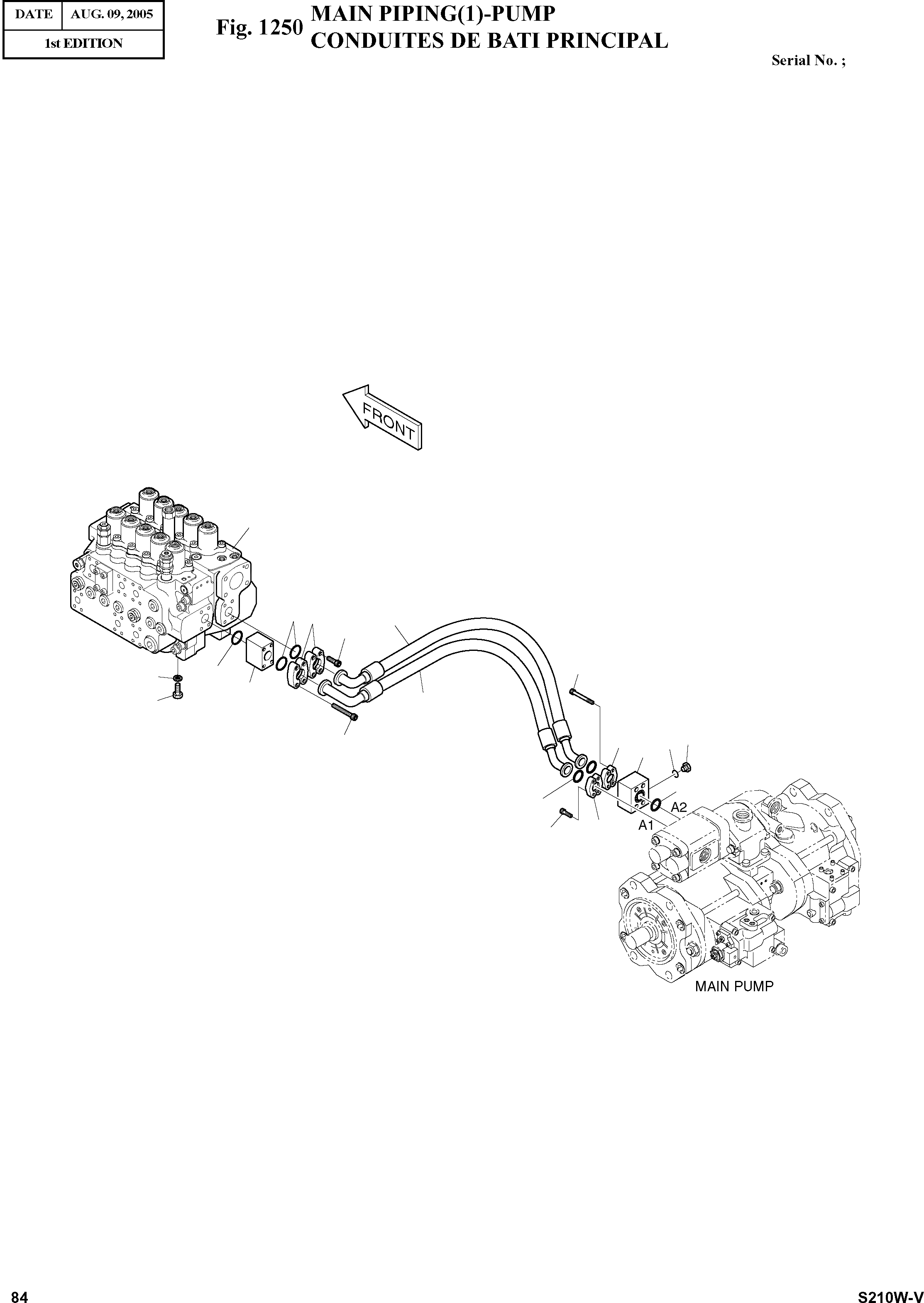

Запчасти Doosan Daewoo MAIN PIPING(1)-PUMP BODY PARTS

-

400-01140

MAIN PIPING

SC: D

-2шт.

1

426-00072B

VALVE;CONTROL

desc: VANNE

1шт.

8

DS2043089

HOSE PF3/4-1000L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1289

HOSE PF3/4-970L

desc: TUYAU FLEXIBLE

4шт.

19

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

20

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

26

S2213666

BOLT;SOCKET M10X1.5X100

desc: BOULON A 6 PANS

4шт.

28

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS

8шт.

29

2180-1026D19

O-RING

desc: JOINT TORIQUE

3шт.

30

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

33

2180-1026D2

O-RING

desc: JOINT TORIQUE

3шт.

35

2181-9080

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

38

K1005897

BLOCK

desc: BLOC

1шт.

58

S2213066

BOLT;SOCKET M10X1.5X70

desc: BOULON A 6 PANS

4шт.

59

181-00763

BLOCK

desc: BLOC

1шт.

60

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

61

2181-1950D1

PLUG

desc: BOUCHON

1шт.
