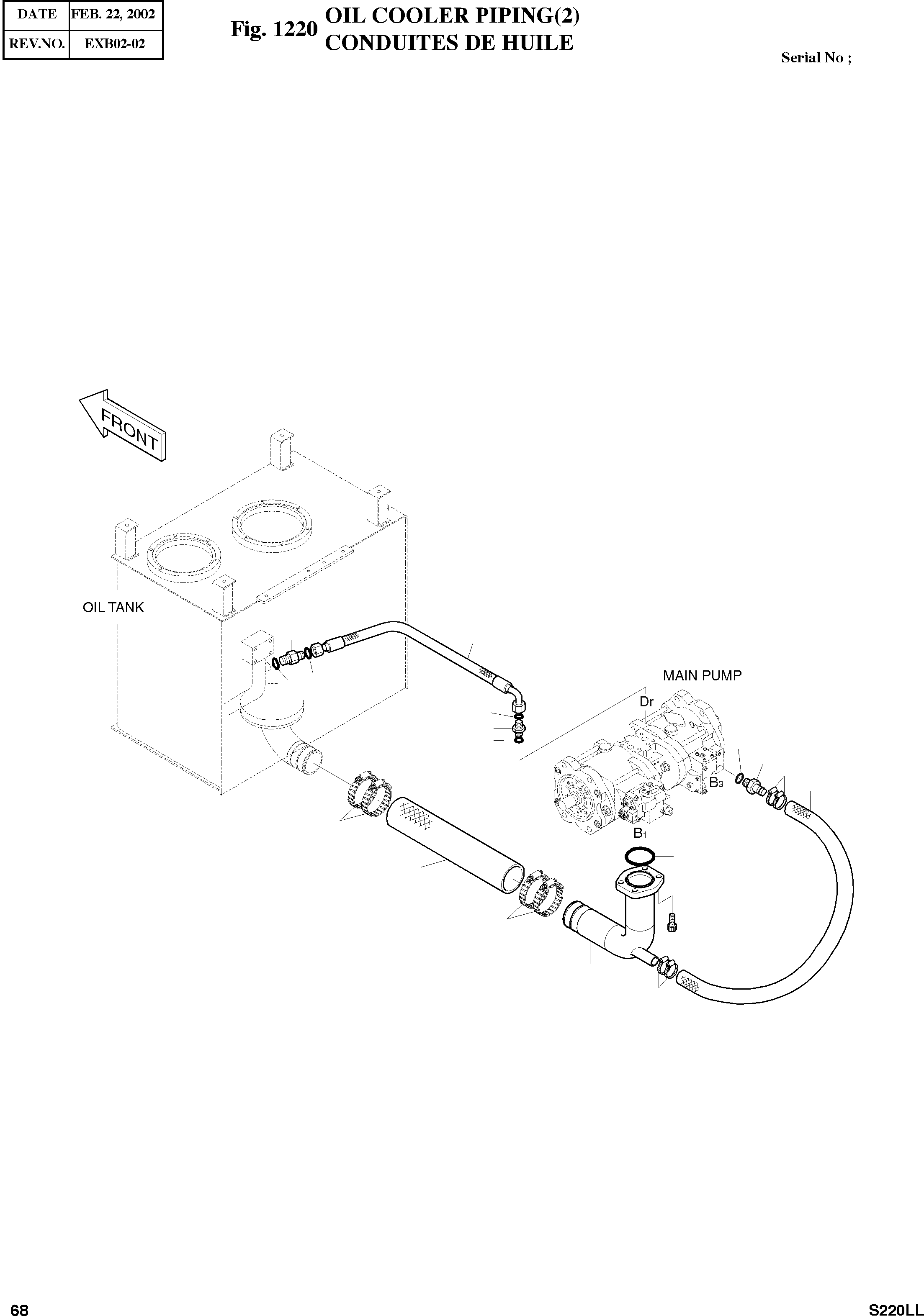

Запчасти Doosan Daewoo OIL COOLER PIPING(2) BODY PARTS

-

2400-1768A

OIL COOLER PIPING

SERIAL: 1001-1009

-2шт.

-

2400-1768B

OIL COOLER PIPING

SERIAL: 1010

-2шт.

1

2140-1363A

PIPE;SUCTION

desc: TUYAU

1шт.

8

2185-1002D93

HOSE;SUCTION 450L

desc: TUYAU FLEXIBLE

1шт.

9

2185-1002D107

HOSE 800L

SERIAL: 1001-1050

1шт.

9

2185-1002D116

HOSE 900L

SERIAL: 1051-1069

1шт.

9

2185-1002D143

HOSE 850L

SERIAL: 1070

1шт.

10

2184-1197D79

HOSE PF3/16-650L

desc: TUYAU FLEXIBLE

1шт.

20

2181-2627D1

ADAPTER;ORFS

desc: RACCORD ADAPTATEUR

1шт.

21

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

22

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

23

S8000241

O-RING

desc: JOINT TORIQUE

2шт.

30

2180-1026D31

O-RING

desc: JOINT TORIQUE

1шт.

31

S2215361

BOLT;SOCKET M12X1.75X35

desc: BOULON A 6 PANS CREUX

4шт.

41

S8450082

CLAMP;HOSE

desc: COLLIER

4шт.

50

2181-2693A

ADAPTER PFO3/4-PF1

desc: RACCORD ADAPTEUR

1шт.

51

S8450035

CLAMP;HOSE

desc: COLLIER

4шт.

52

2181-4133D5

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.
