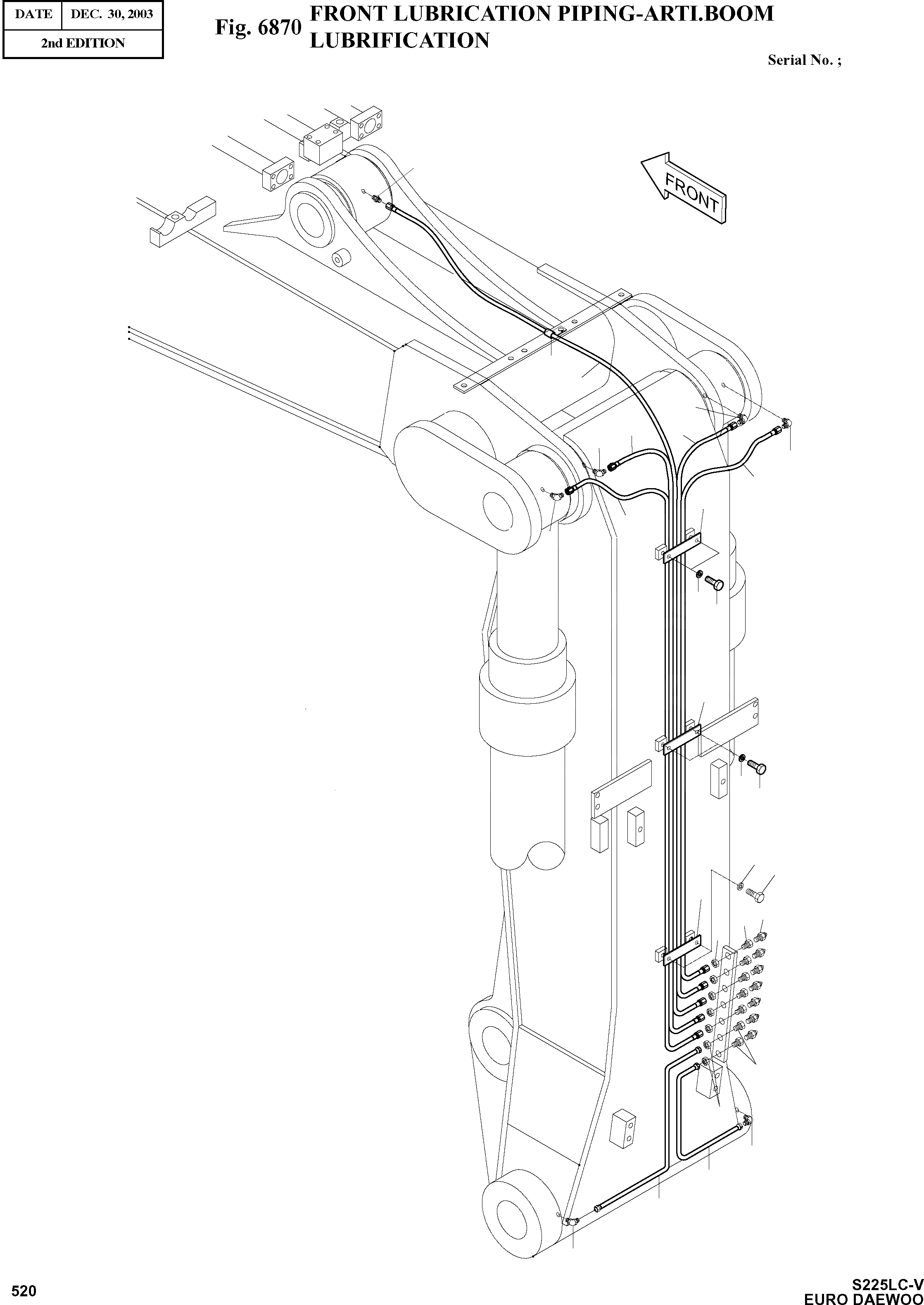

/ / / / / FRONT LUBRICATION PIPING-ARTI.BOOM
Запчасти Doosan Daewoo FRONT LUBRICATION PIPING-ARTI.BOOM OPTION PARTS
13
15
7
14
6
8
14
14
9
12
5
14
11
10
12
11
10
11
10
12
2
3
4
19
18
1
17
16
1
-
400-00384A
FRONT PIPING
SC: D
-2шт.
1
2181-1925
ELBOW PT1/8-M14X1.5
desc: COUDE
2шт.
2
S6710041
NIPPLE;GREASE
desc: GRAISSEUR
7шт.
3
181-00103
REDUCER PT1/8-PF1/4
desc: REDUCTEUR
5шт.
4
121-00006
NUT PF1/4
desc: ECROU
5шт.
5
2184-1045D152
HOSE PF1/4-2000L
desc: TUYAU FLEXIBLE
1шт.
6
2184-1045D110
HOSE PF1/4-1850L
desc: TUYAU FLEXIBLE
1шт.
7
2184-1045D131
HOSE PF1/4-2700L
desc: TUYAU FLEXIBLE
1шт.
8
2184-1045D125
HOSE PF1/4-1700L
desc: TUYAU FLEXIBLE
1шт.
9
2184-1045D196
HOSE PF1/4-1730L
desc: TUYAU FLEXIBLE
1шт.
10
S0511553
BOLT M10X1.5X14
desc: BOULON A 6 PANS
6шт.
11
S5102603
WASHER;SPRING M10
desc: RONDELLE ELASTIQUE
6шт.
12
124-00030
CLAMP;PIPE
desc: ATTACHE DE TUBE
3шт.
13
2181-1110D30
ADAPTER PF1/4-PT1/8
desc: RACCORD ADAPTATEUR
1шт.
14
2181-1186D12
ELBOW PF1/4-PT1/8
desc: COUDE
4шт.
15
2124-1353D2
CLIP
desc: ATTACHE
1шт.
16
140-00678
PIPE
desc: TUYAU
1шт.
17
140-00679
PIPE
desc: TUYAU
1шт.
18
S4032833
NUT M14X1.5
desc: ECROU
2шт.
19
181-00525
REDUCER
desc: REDUCTEUR
2шт.
