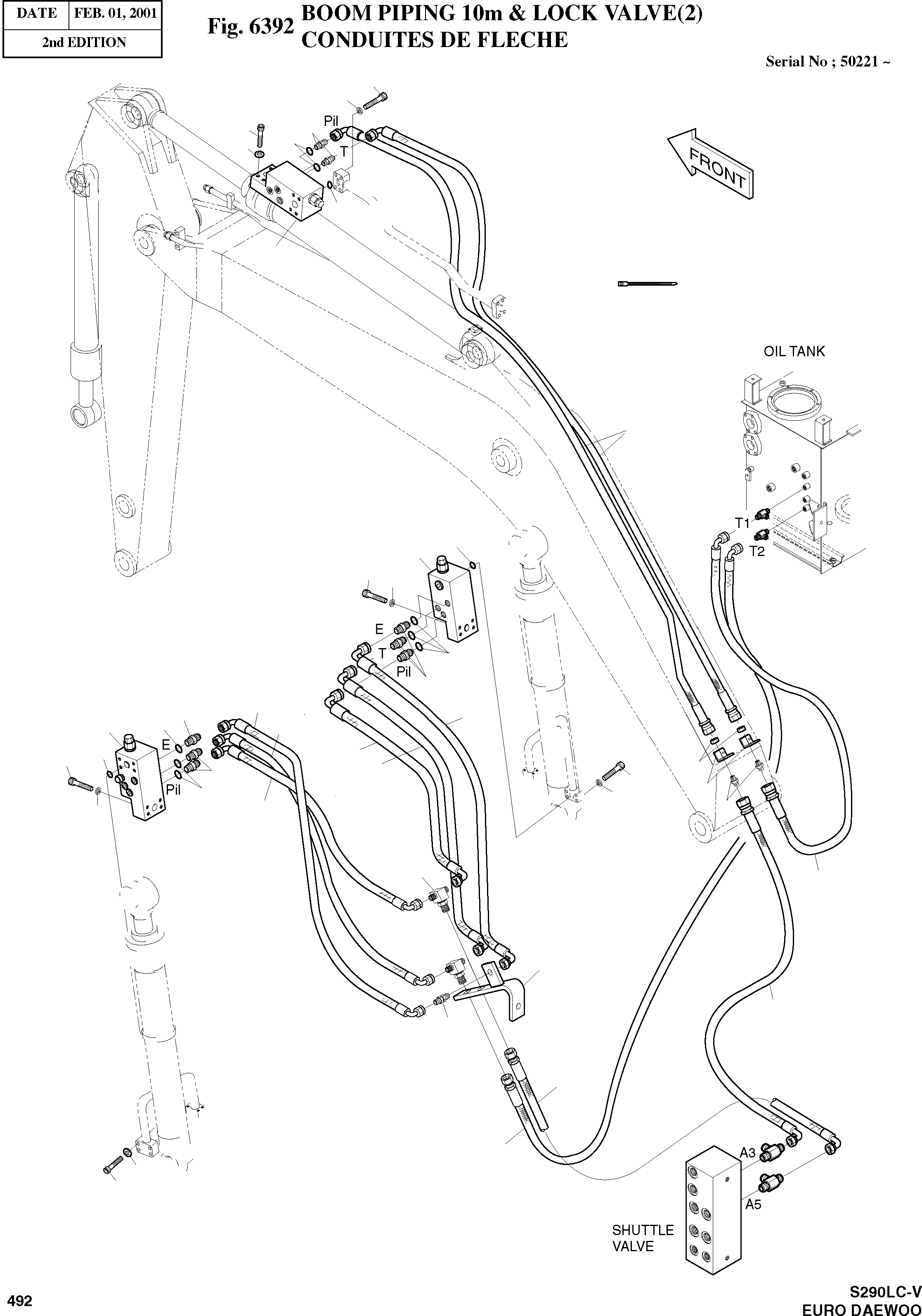

BOOM PIPING 10M & LOCK VALVE(2)

Запчасти Doosan Daewoo BOOM PIPING 10M & LOCK VALVE(2) OPTION PARTS

46
26
29
25
30
26
28
23
27
31
28
24
25
26
30
47
43
39
47
30
24
41
28
42
25
48
40
47
46
33
30
26
40
32
26
44
35
38
34
45
36
37
26
46
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

-

9400-1091

BOOM PIPING-10m & LOCK VALVE(2)

SERIAL: 50221

-2шт.

23

9420-6019A

VALVE;LOCK 1-6000PSI

desc: CLAPET DE SECURITE

1шт.

24

9420-6023

VALVE;LOCK 1-6000PSI

desc: CLAPET DE SECURITE

2шт.

25

S2215761

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6 PANS CREUX

12шт.

26

S5110701

WASHER;SPRING M12

desc: RONDELLE GROWER

24шт.

27

2124-1084D2

CLIP;BAND

desc: ATTACHE

30шт.

28

S8000341

O-RING

desc: JOINT TORIQUE

3шт.

29

2181-1126D14

ADAPTER;S PF1/4-PF1/4

desc: RACCORD

2шт.

30

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

31

2184-1046D279

HOSE PF1/4-9400L

desc: TUYAU FLEXIBLE

2шт.

32

181-00078D5

ADAPTER PF1/4-PF3/8

desc: RACCORD

2шт.

33

197-00021

BRACKET

desc: SUPPORT

2шт.

34

2184-1046D243

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1026D222

HOSE PF3/8-3000L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D238

HOSE PF3/8-2300L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1026D319

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

38

197-00023A

SUPPORT

desc: SUPPORT

1шт.

39

2184-1076D129

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1076D127

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

2шт.

41

2184-1076D128

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1076D123

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1076D124

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

44

181-00008

TEE 2PF1/4-PF3/8

desc: TE

2шт.

45

181-00020

ADAPTER PF1/4-PF1/4

desc: RACCORD

1шт.

46

S2215861

BOLT;SOCKET M12X1.75X60

desc: BOULON A 6 PANS CREUX

12шт.

47

2181-1126D75

ADAPTER;S PF(0)1/4-PF1/4

desc: RACCORD

6шт.

48

121-00010D1

NUT PF3/8

desc: ECROU

2шт.
