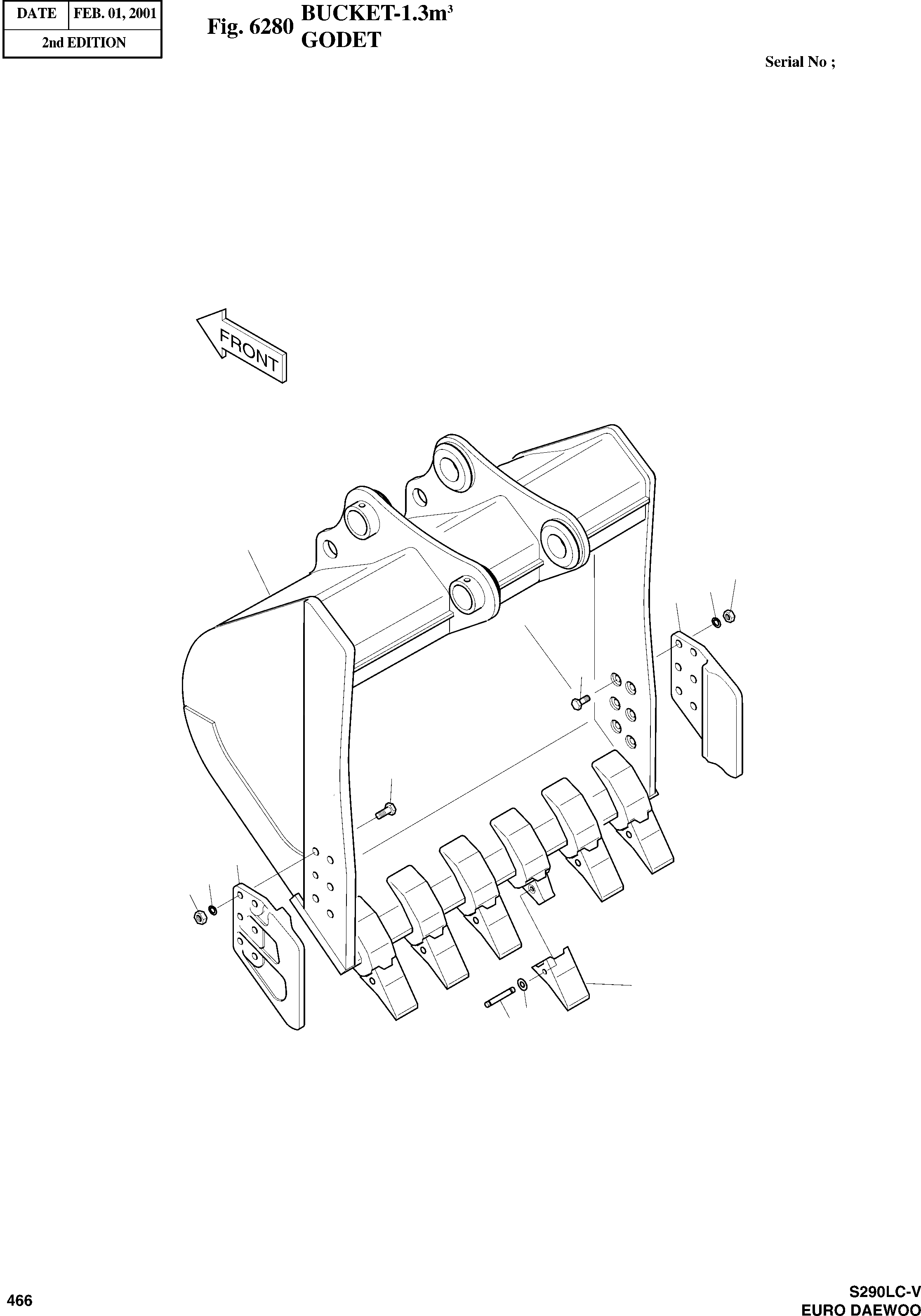

Запчасти Doosan Daewoo BUCKET-1.3§© OPTION PARTS
1
8
9
5
7
7
6
9
8
2
4
3
1A
-
2704-1406A
BUCKET ASS'Y-1.3§©
SERIAL: 00001-50110
1шт.
-
2704-1406B
BUCKET ASS'Y-1.3§©
SERIAL: 50111
1шт.
-
2704-1406C
BUCKET ASS'Y-1.3§©
SERIAL: 50211
1шт.
1
2704-1407A
BUCKET ASS'Y-1.3§©
SERIAL: 00001-50110
1шт.
1
2704-1407B
BUCKET ASS'Y-1.3§©
SERIAL: 50111
1шт.
1
2704-1407C
BUCKET ASS'Y-1.3§©
SERIAL: 50211
1шт.
1A
2713-1220
ADAPTER;TOOTH
desc: . RACCORD
6шт.
2
2713-1219
POINT;TOOTH
desc: DENT
6шт.
3
2705-1021
PIN;LOCKING
desc: BROCHE DE BLOCAGE
6шт.
4
2114-1849A
WASHER;LOCKING
desc: RONDELLE
6шт.
5
2713-6034
CUTTER;SIDE(R)
SERIAL: 1-50210
1шт.
5
2713-6034A
CUTTER;SIDE(R)
SERIAL: 50211
1шт.
6
2713-6035
CUTTER;SIDE(L)
SERIAL: 1-50210
1шт.
6
2713-6035A
CUTTER;SIDE(L)
SERIAL: 50211
1шт.
7
S0570261
BOLT M20X2.5X70
SERIAL: 1-50210
12шт.
7
S0574761
BOLT M24X3.0X70
SERIAL: 50211
12шт.
8
S4013133
NUT M20X2.5
SERIAL: 1-50210
12шт.
8
S4013333
NUT M24X3.0
SERIAL: 50211
12шт.
9
S5103101
WASHER;SPRING
ICA: Y
12шт.
9
2114-9012
WASHER;HARDEN
SERIAL: 1-50210
12шт.
9
2114-1831
WASHER;HARDEN
SERIAL: 50211
12шт.
