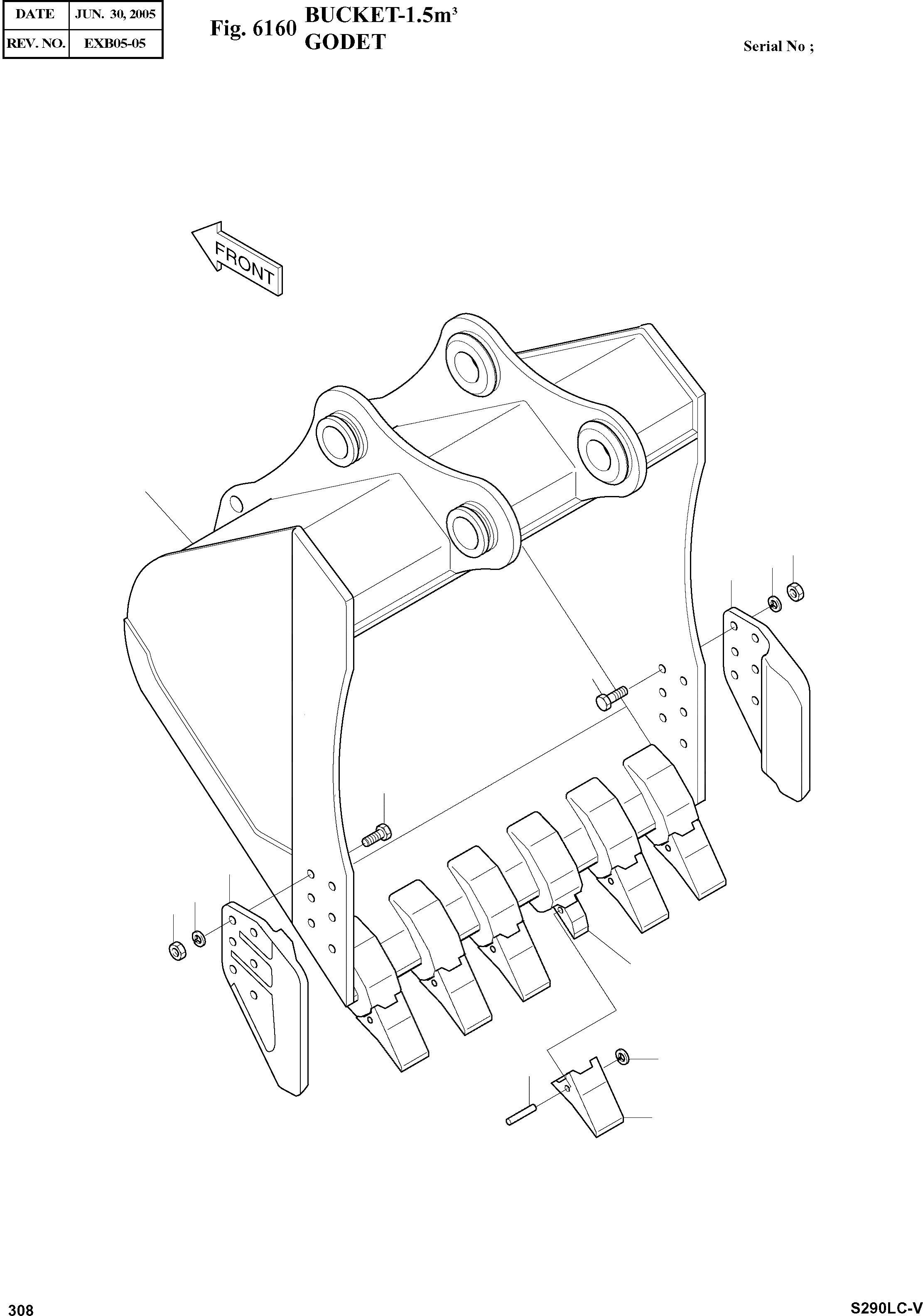

Запчасти Doosan Daewoo BUCKET-1.5M©ш OPTION PARTS

-

2704-1408

BUCKET ASS'Y-1.5§©

SERIAL: 1-400

1шт.

-

2704-1408A

BUCKET ASS'Y-1.5§©

SERIAL: 401-653

1шт.

-

2704-1408B

BUCKET ASS'Y-1.5§©

SERIAL: 654-680

1шт.

-

2704-1408C

BUCKET ASS'Y-1.5§©

SERIAL: 681-1215

1шт.

-

2704-1408E

BUCKET ASS'Y-1.5§©

SERIAL: 1216-2008

1шт.

-

2704-1408G

BUCKET ASS'Y-1.5§©

SERIAL: 2009-2210

1шт.

-

2704-1408H

BUCKET ASS'Y-1.5§©

SERIAL: 2211

1шт.

1

-

BUCKET ASS'Y-1.5§©

SC: D

1шт.

1A

2713-1220

ADAPTER;TOOTH

desc: . RACCORD

6шт.

2

2713-1219

POINT;TOOTH

SERIAL: 1-2008

6шт.

2

713-00054

POINT;TOOTH

SERIAL: 2009-2210

6шт.

2

713-00054A

POINT;TOOTH

SERIAL: 2211

6шт.

3

2705-1021

PIN;LOCKING

desc: BROCHE DE BLOCAGE

6шт.

4

2114-1849A

WASHER;LOCKING

desc: RONDELLE

6шт.

5

2713-6034

CUTTER;SIDE(R)

SERIAL: 1-1215

1шт.

5

2713-6034A

CUTTER;SIDE(R)

SERIAL: 1216

1шт.

6

2713-6035

CUTTER;SIDE(L)

SERIAL: 1-1215

1шт.

6

2713-6035A

CUTTER;SIDE(L)

SERIAL: 1216

1шт.

7

S0570261

BOLT M20X2.5X70

SERIAL: 1-1215

12шт.

7

S0574761

BOLT M20X3.0X70

SERIAL: 1216

12шт.

8

S4013133

NUT M20X2.5

SERIAL: 1-1215

12шт.

8

S4013333

NUT M20X3.0

SERIAL: 1216

12шт.

9

S5103101

WASHER;SPRING

SERIAL: 1-680

12шт.

9

2114-9012

WASHER;HARDEN

SERIAL: 681-1215

12шт.

9

2114-1831

WASHER;HARDEN

SERIAL: 1216-2008

12шт.

9

2114-1831A

WASHER;HARDEN

SERIAL: 2009

12шт.
