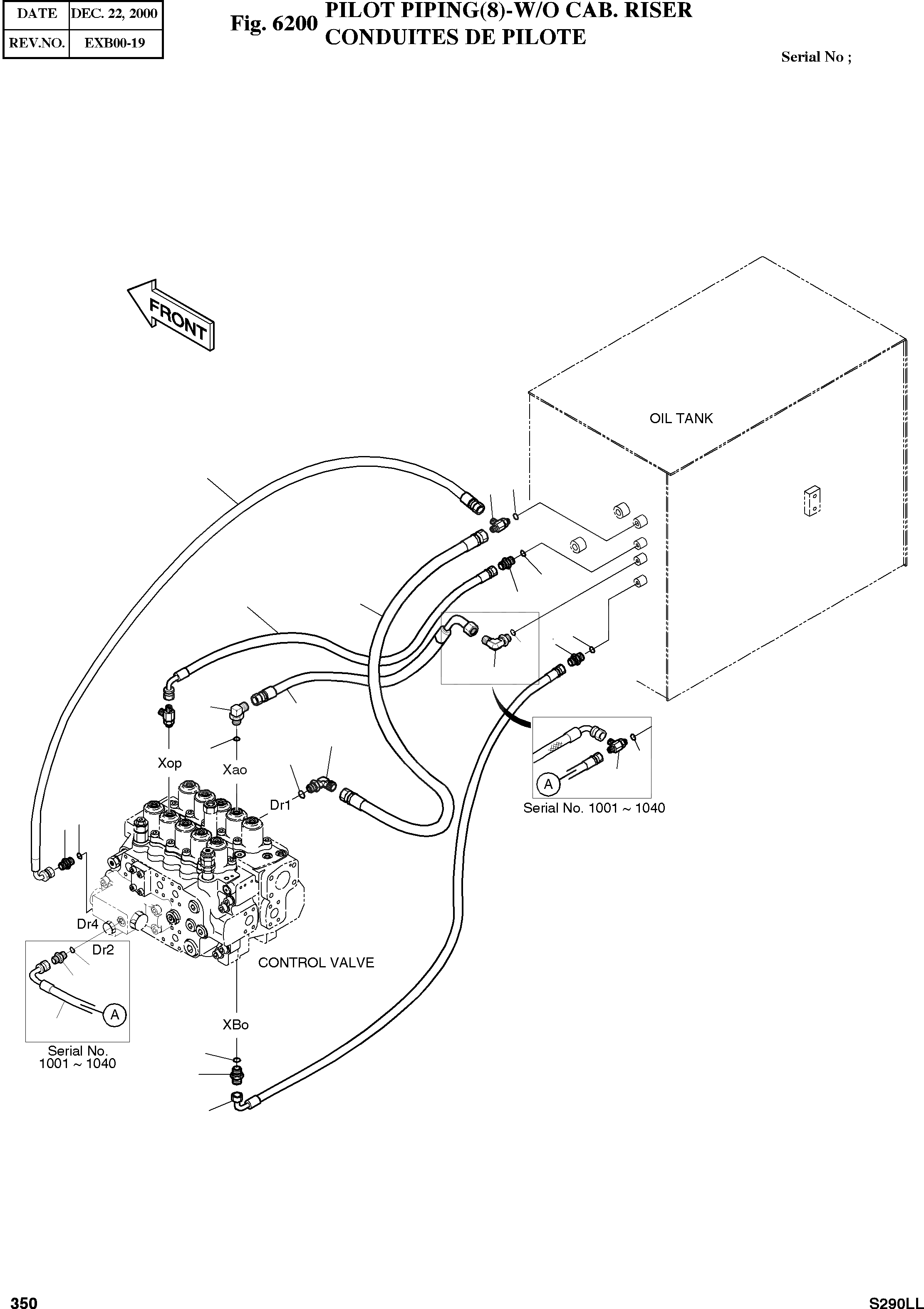

/ / / / / PILOT PIPING(8)-W/O CAB. RISER
Запчасти Doosan Daewoo PILOT PIPING(8)-W/O CAB. RISER OPTION PARTS
27
128
25
129
26
97
104
27
26
26
32
36
101
33
25
26
26
38
26
27
26
27
95
25
30
102
-
2400-2097
PILOT PIPING
SC: D
-2шт.
25
S8000141
O-RING P14
desc: JOINT TORIQUE
3шт.
26
S8000111
O-RING P11
SERIAL: 1001-1040
6шт.
26
S8000111
O-RING P11
SERIAL: 1041
5шт.
27
2181-1126D14
ADAPTER PFO1/4-PF1/4
SERIAL: 1001-1040
3шт.
27
2181-1126D14
ADAPTER PFO1/4-PF1/4
SERIAL: 1041
2шт.
30
2181-1126D36
ADAPTER PFO3/8-PF1/4
desc: RACCORD
1шт.
32
2181-1702D4
ELBOW PFO1/4-PF3/8
SERIAL: 1041
1шт.
33
2181-1702D3
ELBOW PFO1/4-PF3/8
desc: RACCORD
1шт.
36
2181-1702D10
ELBOW PFO3/8-PF1/4
desc: COUDE
1шт.
38
2181-1951D1
TEE PFO1/4-PF1/4X2
SERIAL: 1001-1040
1шт.
95
2184-1046D143
HOSE PF1/4-1150L
SERIAL: 1001-1040
1шт.
97
2184-1046D94
HOSE PF1/4-780L
desc: TUYAU FLEXIBLE
1шт.
101
2184-1046D132
HOSE PF1/4-590L
desc: TUYAU FLEXIBLE
1шт.
102
2184-1046D206
HOSE PF1/4-550L
desc: TUYAU FLEXIBLE
1шт.
104
2184-1026D206
HOSE PF3/8-480L
desc: TUYAU FLEXIBLE
1шт.
128
2184-1046D143
HOSE PF1/4-1150L
desc: TUYAU FLEXIBLE
1шт.
129
2181-1951D6
TEE
desc: TE
1шт.
