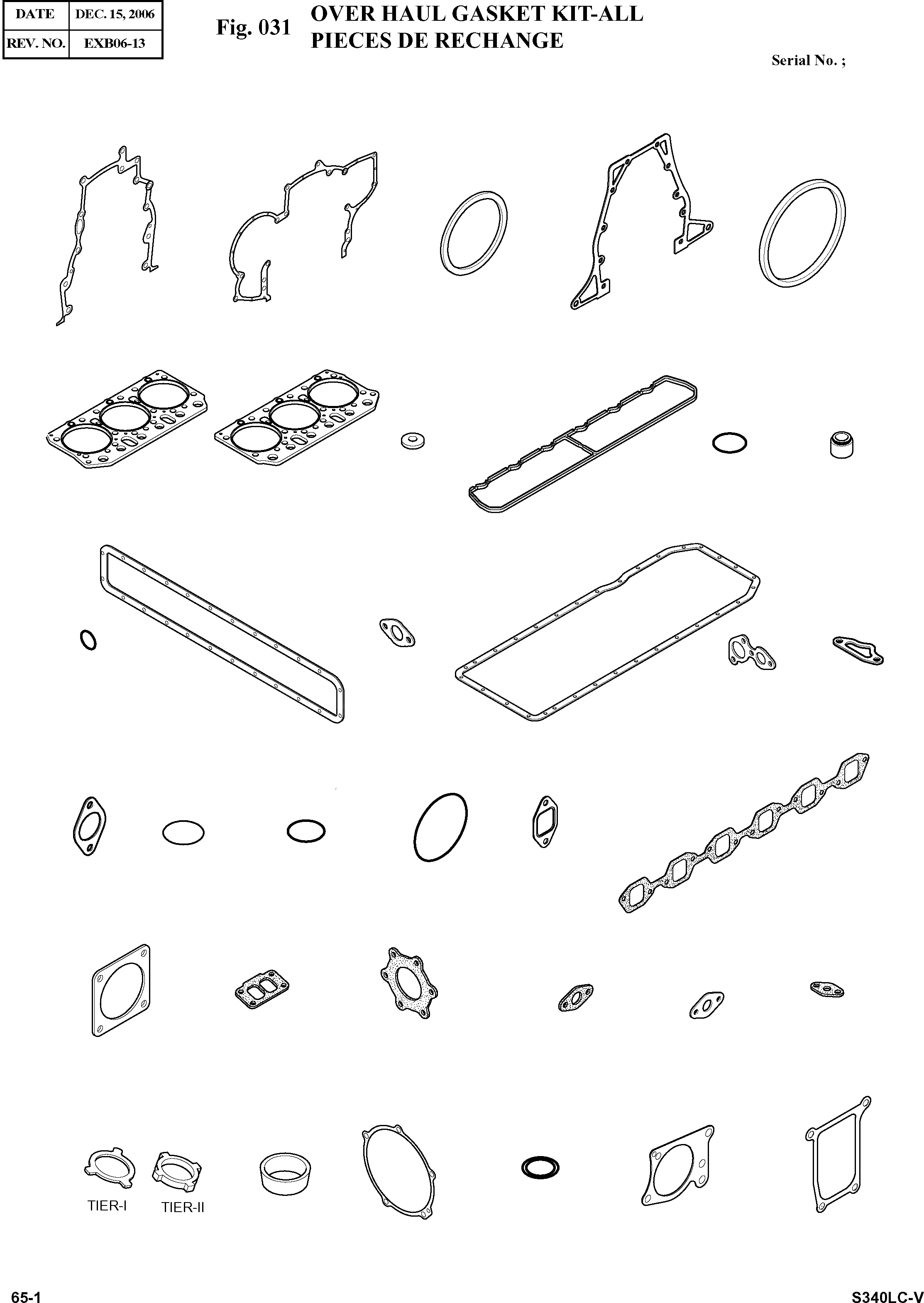

OVER HAUL GASKET KIT-ALL

Запчасти Doosan Daewoo OVER HAUL GASKET KIT-ALL ENGINE PARTS

1
2
3
4
5
9
10
7
11
8
6
15
14
13
16
12
17
23
22
19
21
20
18
25
24
29
26
28
27
32
33
30
31
35
34
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

-

65.99601-8042

OVER HAUL GASKET KIT-ALL

desc: PIECES DE RECHANGE

1шт.

1

65.01903-0048B

GASKET

desc: JOINT

1шт.

2

65.01903-0050

GASKET;TIMING GEAR CASE COVER

desc: JOINT

1шт.

3

65.01510-0157

SEAL;OIL

desc: JOINT

1шт.

4

65.01904-0022A

GASKET;FLYWHEEL HOUSING

desc: JOINT

1шт.

5

65.01510-0158

SEAL;OIL

desc: JOINT

1шт.

6

65.03901-0063B

GASKET;CYLINDER HEAD

SERIAL: 051017

1шт.

6

65.03901-0072

GASKET;CYLINDER HEAD

SERIAL: 051018

1шт.

7

65.03901-0064B

GASKET;CYLINDER HEAD

SERIAL: 051017

1шт.

7

65.03901-0073

GASKET;CYLINDER HEAD

SERIAL: 051018

1шт.

8

65.03905-0023A

GASKET;CYLINDER HEAD COVER

desc: JOINT

6шт.

9

65.03905-0020

PACKING

desc: RONDELLE ETANCHE

1шт.

10

65.96501-0033B

O-RING

desc: JONT TORIQUE

1шт.

11

65.04902-0010

SEAL;VALVE STEM

desc: JOINT

12шт.

12

65.96501-0061

O-RING

desc: JONT TORIQUE

2шт.

13

65.01907-0008A

GASKET

desc: JOINT

1шт.

14

65.05903-0030A

GASKET

desc: JOINT

2шт.

15

65.05904-0096A

GASKET;OIL PAN

desc: JOINT

1шт.

16

65.05903-0027A

GASKET

desc: JOINT

1шт.

17

65.06903-0018

GASKET;COOLING WATER PIPE

SERIAL: 040827

2шт.

17

65.06903-0028

GASKET;COOLING WATER PIPE

SERIAL: 040828

2шт.

18

65.06903-0020

GASKET(WATER & C/W PIPE)

SERIAL: 061023

1шт.

18

65.06903-0020A

GASKET(WATER & C/W PIPE)

SERIAL: 061024

1шт.

19

65.06901A0069

GASKET

desc: JOINT

2шт.

20

06.56342-1208

O-RING

desc: JONT TORIQUE

2шт.

21

65.96501-0068

O-RING;WATER PUMP

desc: JONT TORIQUE

1шт.

22

65.08901A0012

GASKET;EXHAUST MANIFOLD

SERIAL: 051130

6шт.

22

65.08901-0044

GASKET;EXHAUST MANIFOLD

SERIAL: 051131

6шт.

23

65.08902-0025

GASKET;INTAKE MANIFOLD

desc: JOINT

1шт.

24

65.09904-0008

GASKET;AIR PIPE

desc: JOINT

2шт.

25

65.09901-0033

GASKET;TURBO CHARGER

desc: JOINT

1шт.

26

65.08901-0063

GASKET;EXHAUST ELBOW

desc: JOINT

1шт.

27

65.96601-0045A

GASKET;T/C OIL RETURN(UP)

SERIAL: 060530

1шт.

27

65.96601-0067

GASKET;T/C OIL RETURN(UP)

SERIAL: 060531

1шт.

28

65.96601-0012

GASKET;T/C OIL RETURN

desc: JOINT

1шт.

29

65.96601-0046A

GASKET;OIL PIPE ADAPTER

SERIAL: 060530

1шт.

29

65.96601-0046B

GASKET;OIL PIPE ADAPTER

SERIAL: 060531

1шт.

30

65.98701-0010

SEAL;RING (TIER-I)

desc: JOINT

6шт.

30

65.98701-0012

SEAL;RING (TIER-II)

desc: JOINT

6шт.

31

65.96401-0011

SEAL;DUST NOZZLE (TIER-I)

desc: JOINT

6шт.

31

65.96401-0012

SEAL;DUST NOZZLE (TIER-II)

desc: JOINT

6шт.

32

65.11902-0017

GASKET;MOUNTING FLANGE

desc: JOINT

1шт.

33

06.56180-0712

SEAL;RING

desc: JOINT

12шт.

34

65.47901-0010

GASKET;P/S PUMP

desc: JOINT

1шт.

35

65.54901-0025A

GASKET;AIR COMPRESSOR

desc: JOINT

1шт.
