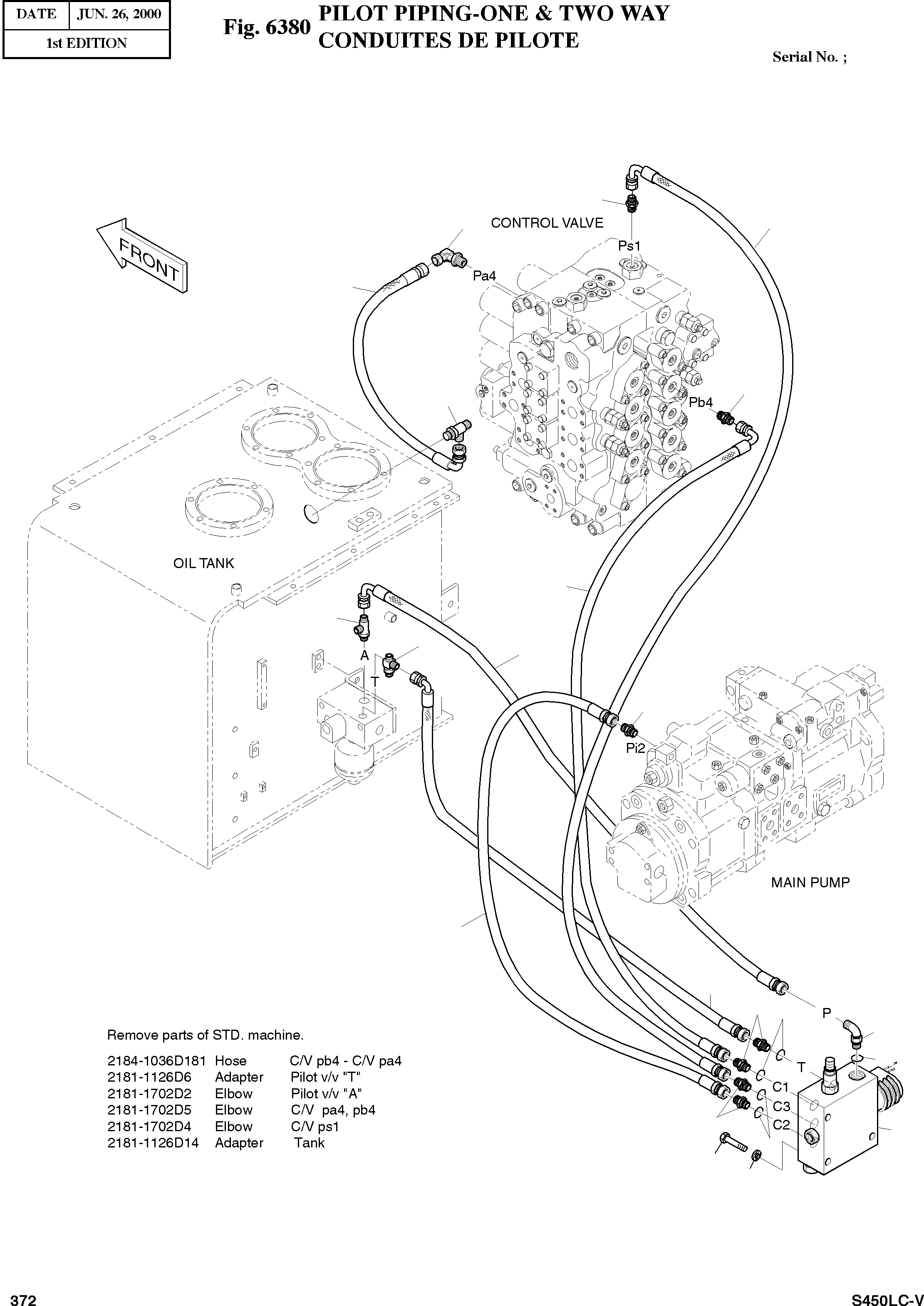

Запчасти Doosan Daewoo PILOT PIPING-ONE & TWO WAY OPTION PARTS

-

400-00271

PILOT PIPING-ONE&TWO WAY

SC: D

-2шт.

1

2420-9227A

VALVE;BREAKER

desc: SOUPAPE A SOLENOIDE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

2181-1126D14

ADAPTER 2PF1/4

desc: RACCORD ADAPTATEUR

6шт.

5

2181-1126D36

ADAPTER PF3/8-PF1/2

desc: RACCORD

1шт.

6

2181-1702D10

ELBOW PF3/8-PF1/4

desc: COUDE

1шт.

7

2181-1702D4

ELBOW 2PF1/4

desc: COUDE

1шт.

8

2181-2375D5

TEE 2PF1/2-PF1/4

desc: TE

1шт.

9

2181-1951D8

TEE 2PF1/2-PF1/4

desc: TE

1шт.

10

2181-1951D1

TEE 3PF1/4

desc: TE

1шт.

11

2184-1045D209

HOSE PF1/4-1350L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D187

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1046D188

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1046D83

HOSE PF1/4-830L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1046D143

HOSE PF1/4-1150L

desc: TUYAU FLEXIBLE

1шт.

17

S8000111

O-RING

desc: JOINT TORIQUE

5шт.
