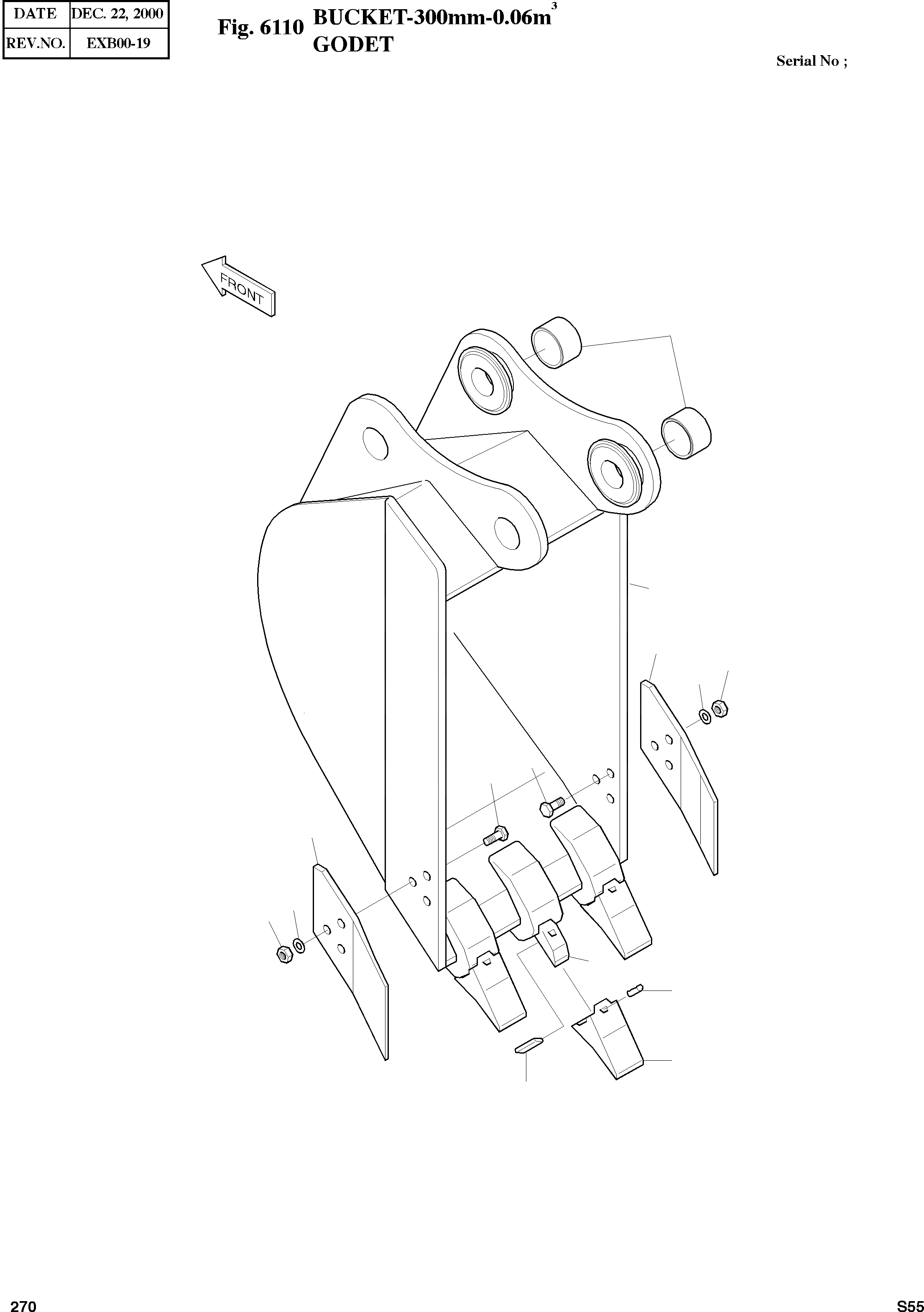

Запчасти Doosan Daewoo BUCKET-300MM-0.06§© OPTIONAL PARTS

-

2704-1212B

BUCKET-300mm-0.06§©

SERIAL: 1-437

1шт.

-

2704-1212C

BUCKET-300mm-0.06§©

SERIAL: 438-2325

1шт.

-

2704-1212E

BUCKET-300mm-0.06§©

SERIAL: 2326

1шт.

7

2704-9004

BUCKET-300mm

SERIAL: 1-437

1шт.

7

2704-9004A

BUCKET-300mm

SERIAL: 438-2325

1шт.

7

2704-9004B

BUCKET-300mm

SERIAL: 2326

1шт.

7-1

2713-9009

ADAPTER

SERIAL: 1-437

3шт.

7-1

2713-9050

ADAPTER

SERIAL: 438

3шт.

7-14

2116-1032D25

STOPPER

SERIAL: 1-2325

2шт.

7-14

2116-1032D28

STOPPER

SERIAL: 2326

2шт.

16

2713-6051

CUTTER;SIDE(L.H.)

desc: COUTEAU LATERAL

1шт.

17

2713-6050

CUTTER;SIDE(R.H.)

desc: COUTEAU LATERAL

1шт.

18

S0565261

BOLT M16X2.0X50

desc: BOULON A 6 PANS

6шт.

19

S5102901

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

20

S4012933

NUT M16X2.0

desc: ECROU

6шт.

21

2713-9010

POINT;TOOTH

SERIAL: 1-437

3шт.

21

2713-9051

POINT;TOOTH

SERIAL: 438

3шт.

22

2705-9005

PIN;LOCK

desc: GOUPILLE DE BLOCAGE

3шт.

23

2705-9006

PIN;LOCK RUBBER

desc: BROCHE

3шт.
