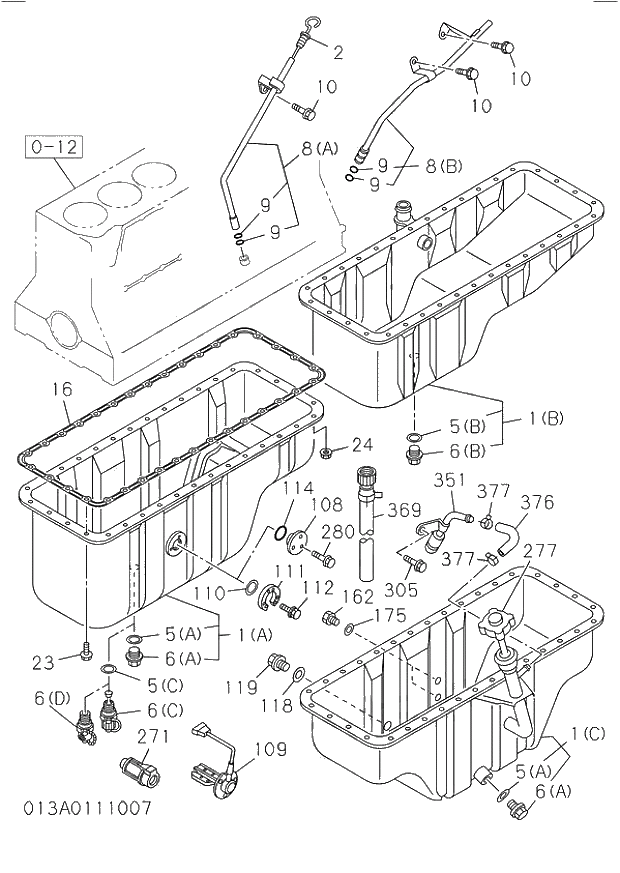

Запчасти Hitachi ZW220 013_OIL PAN AND LEVEL GAUGE. 6HK1-XYWT03 DIESEL ENGINE 6HK1 PARTS CATALOG

001(B)

1113608910

PAN ASM; OIL

200508-

1шт.

2

1117604540

GAUGE; OIL LEVEL

200508-

1шт.

005(B)

1096230570

GASKET; PLUG,OIL DRAIN

200508-

1шт.

006(B)

9096620120

PLUG; OIL DRAIN

200508-

1шт.

008(A)

8980106380

TUBE; GUIDE,OIL LEVEL GAUGE

200508-200702

1шт.

008(B)

8980657850

TUBE; GUIDE,OIL LEVEL GAUGE

200703-

1шт.

9

5096230020

GASKET; GUIDE TUBE,OIL LEVEL GAUGE

200508-

2шт.

10

280808160

BOLT; GUIDE TUBE

A 200508-200512

1шт.

10

280508160

BOLT; GUIDE TUBE

200601-200702

1шт.

10

280508200

BOLT; GUIDE TUBE

200703-

2шт.

16

1113671310

GASKET; OIL PAN TO C/BL

200508-

1шт.

23

280808180

BOLT; OIL PAN

200508-

30шт.

24

911501080

NUT; OIL PAN

200508-200602

4шт.

24

911801080

NUT; OIL PAN

200603-

4шт.
